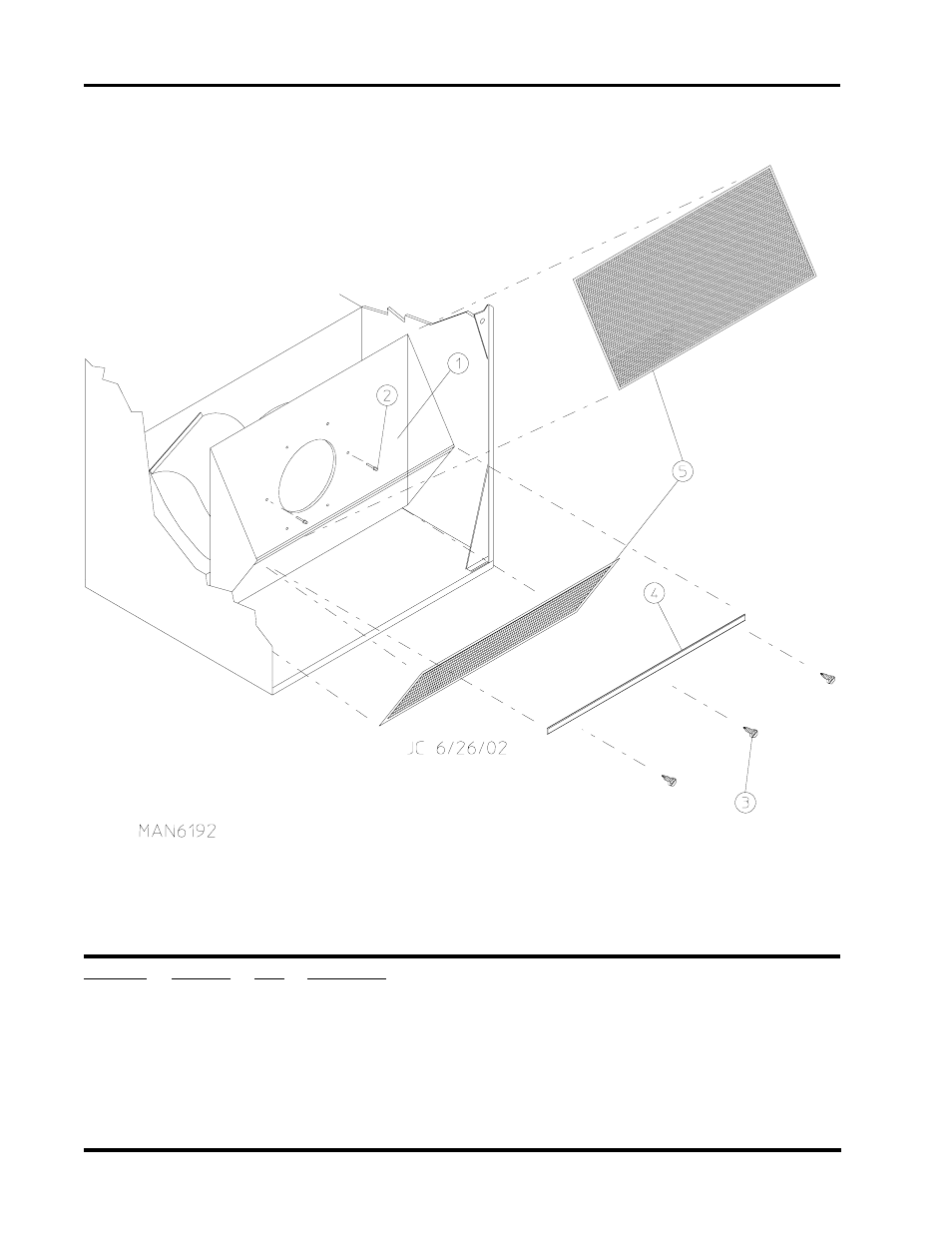

Lint Trap Assembly

For Models Mfd. as of July 1, 2002

Illus. No.

Part No.

Qty.

Description

1

800401

1

Lint Trap Assembly Complete
(includes illus. nos. 1 and 3 through 5)

800443

1

Lint Trap ONLY

2

154200

6

5/32” Pop Rivet

3

150300

3

#10-16 x 1/2” Hex Washer TEK Screw

4

304100

1

Lint Screen Holder ONLY

5

800500

2

Lint Screen Assembly
