NetVanta
®
873
3-port EFM over DS3
ADTRAN, Inc.
901 Explorer Boulevard
Huntsville, AL 35806
P.O. Box 140000
Huntsville, AL 35814-4000
256 963 8000 voice
256 963 8030 fax
General Information
800 9ADTRAN
[email protected]
www.adtran.com
Pre-Sales
Technical Support
888 5ADTRAN
[email protected]
www.adtran.com/support
Where to Buy
800 827 0807
www.adtran.com/where2buy
Post-Sales
Technical Support
800 726 8663
[email protected]
www.adtran.com/support
Regional Offices
Dallas, TX
972 830 9070
Denver, CO
303 471 9150
Kansas City, KS
800 471 8649
Newark, NJ
800 471 8656
Ontario, Canada
416 290 0585
Quebec, Canada
877 923 8726
San Antonio, TX
888 223 7671
International Inquiries
+1 256 963 8716 voice
+1 256 963 6300 fax
[email protected]
www.adtran.com/international

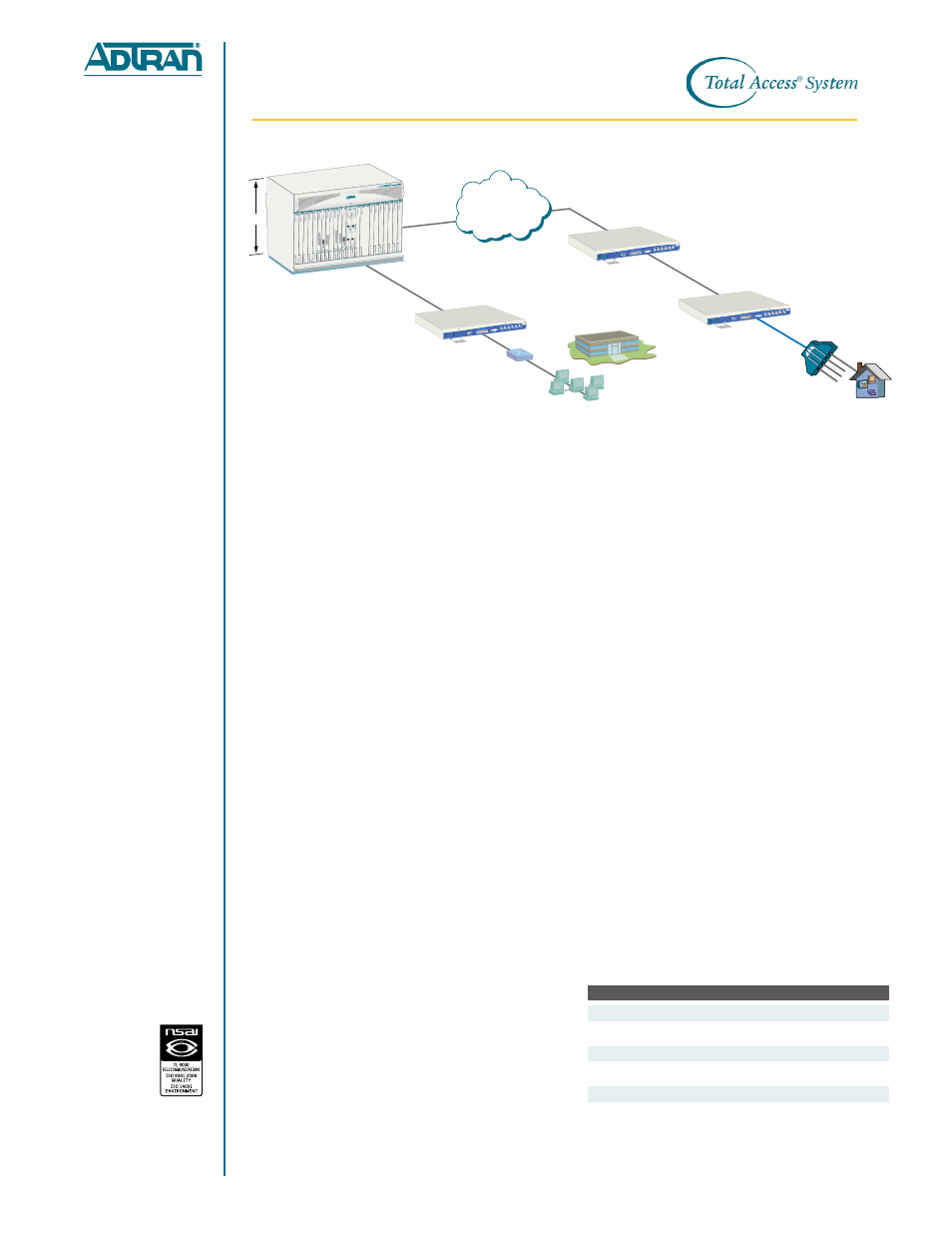

DSLAM
4 x 10/100Base-T
or GigE SFP
NetVanta 873
4 x 10/100Base-T
or GigE SFP
Metro Ethernet
& IP Core
LAN
Router
NetVanta 873
Up to 3 EFM
Bonded DS3
NxGigE
NetVanta 873
4 x 10/100Base-T
or GigE SFP
1187101L1
16 15
2 1
32 31
POTS SPLITTER TEST
ALM
PWR
ADSL 1187101L1
16 15
2 1
32 31
POTS SPLITTER TEST
ALM
PWR
ADSL 1187150L1
16 15
2 1
24 23
TEST
ALM
PWR
POTS 1187150L1
16 15
2 1
24 23
TEST
ALM
PWR
POTS
NET RCV 1
RG
1187020L1 SM
NET RCV 2 STBY
ACT APS TEST
ALM2
PWR
NET RCV 1
RG
1187020L1 SM
NET RCV 2 STBY
ACT APS TEST
ALM2
PWR
1187010L1 SCM
CRJ
MAJ HOST LAN ACO MIN TEST ACO ALM
PWR
C R A F T
1187010L1 SCM
CRJ
MAJ HOST LAN ACO MIN TEST ACO ALM
PWR
C R A F T
1187020L1 BLANK SINGLE 1187020L1 BLANK SINGLE 1187020L1 BLANK SINGLE 1187020L1 BLANK SINGLE 1187020L1 BLANK SINGLE 1187020L1 BLANK SINGLE 1187020L1 BLANK SINGLE 1187020L1 BLANK SINGLE
1187020L1 BLANK SINGLE 1187020L1 BLANK DUAL
1187020L1 BLANK SINGLE 1187020L1 BLANK SINGLE 1187020L1 BLANK SINGLE 1187020L1 BLANK SINGLE 1187020L1 BLANK SINGLE
Total Access 5000
9 RU
Up to 3 EFM
Bonded DS3
Small/Medium
Business
1 3 S D 3 S D 3 S D 2 3 NetVanta 873 1200639
ACO 1
2
3 DS3 STATUS ACT
ALARM
EFM
GIG E
1 3 S D 3 S D 3 S D 2 3 NetVanta 873 1200639
ACO 1
2
3 DS3 STATUS ACT
ALARM
EFM
GIG E
1 3 S D 3 S D 3 S D 2 3 NetVanta 873 1200639
ACO 1
2
3 DS3 STATUS ACT
ALARM
EFM
GIG E
Product Specifications
Physical Interface
■ Network Interface: DS3 – 75 ohm BNC
■ Customer: Four autosensing 10/100Base-T Ethernet
• RJ-45
• Auto MDI/MDIX
• Auto-Rate
• Auto-Duplex
■ Gigabit Ethernet Interface
• Interface type: 1000 Base-X
• Connector: Single SFP
• Compliance: 802.3, 802.1D, 802.1Q
■ Management: Console port
• DB-9
• EIA-232
Diagnostic LEDs
■
Power/Alarm LED
■ DS3 loop status for each loop
■ Ethernet LED
Features
■ E-Line support
■ Mini jumbo frame support (1700 Bytes)
■ Efficient EFM bonding
■ Q in Q
■
Flexible bandwidth profiles for rate limiting
■ Traffic classification options include CE-VLAN,
port, p-bit, DSCP
■ SNMP support
Standards Compliant
■
IEEE 802.1p priority marking
■ IEEE 802.1d dynamic/transparent bridging
■ IEEE 802.1q VLAN tagging
■ IEEE 802.3-ah EFM standard
■ IEEE 802.3u Ethernet
■ MEF 9,14
Management & Administration
■
Craft interface (Local, EIA-232)
■ Remote firmware upgrades
■ Local: YMODEM through craft port
■ Remote: Managed through Total Access ® 5000
■ Flow through provisioning via Total Access EMS
■ Supports OAM management status and
loopback messaging
■ Configuration script download
Environment
■
Operating Temperature: -40 C to +65 C (32 to 122 F)
■ Storage Temperature: -40 C to + 85 C (-4 to 158 F)
■ Relative Humidity: Up to 95%, noncondensing
Physical
■ Dimensions: 44 mm (1.7 in.) H, 437 mm
(17.2 in.) W, 254 mm (10.0 in.) D
■ Weight: 3.6 kg
■ DC Power: -48 VDC or +/-24 VDC (A or B power feed)
Agency Approvals
■ FCC Part 15 Class A
■ FCC Part 68
■ UL 60950, CAN/CSA C22.2 No. 60950
■ EN 60950, IEC 60950, AS 3260/ AS NZS60950
■
NEBS Level 3
■ S043.2
Ordering Information
Equipment Part #
NetVanta 873 1200639G1
48VDC Power Supply, US Cord 1202470E1
48VDC Power Supply, EU Cord 1202470E2
48VDC Power Supply, UK Cord 1202470G3
48VDC Power Supply, AUS Cord 1202470L4
