18 ASUS K7V-RM User’s Manual
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
2) PCI 3Volt Setting (3VSBSLT)
This jumper allows you to select the voltage supplied to PCI devices. If you
have PCI devices that require auxiliary power, set this jumper to 3 VSB.
Setting 3VSBSLT
3 Volt [1-2]
3 VSB [2-3] (default)
01 01 01
K7V-RM
®
K7V-RM PCI 3Volt Selection
Add 3 Volt Add 3 VSB
(Default)
1 2 3 1 2 3
3VSBSLT

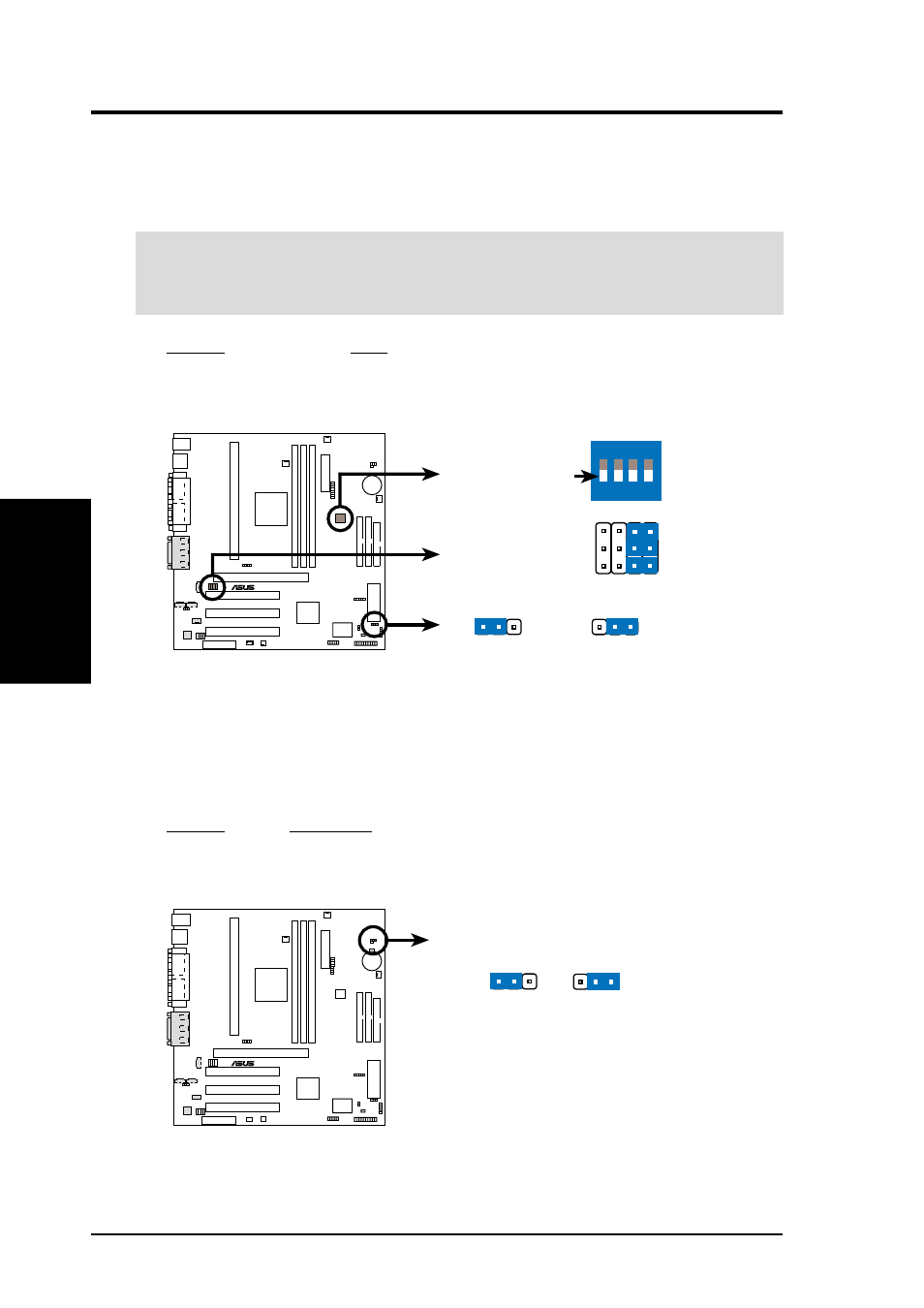

1) JumperFree™ Mode (JEN)
This jumper allows you to enable or disable the JumperFree™ mode. The
JumperFree™ mode allows processor settings to be made through the BIOS
setup (see 4.4 Advanced Menu).
IMPORTANT: In JumperFree™ mode, all DIP switches (DSW) must be set to
OFF and VID1, VID2, and VID3 (see 6) Voltage Regulator Output Setting)
must be set to [3-4].
Setting JEN
Enable (JumperFree) [2-3] (default)
Disable (Jumper) [1-2]
01 01 01
K7V-RM
®
K7V-RM Jumper Mode Setting
Jumper Mode Jumper Free
(Default)
1 2 3 1 2 3
JEN
3 2 1 4
VID2
VID3
VID1
ON
1 2 3 4
DSW
OFF
