ASUS K7V-RM User’s Manual 43
3. HARDWARE SETUP
Connectors
3. H/W SETUP

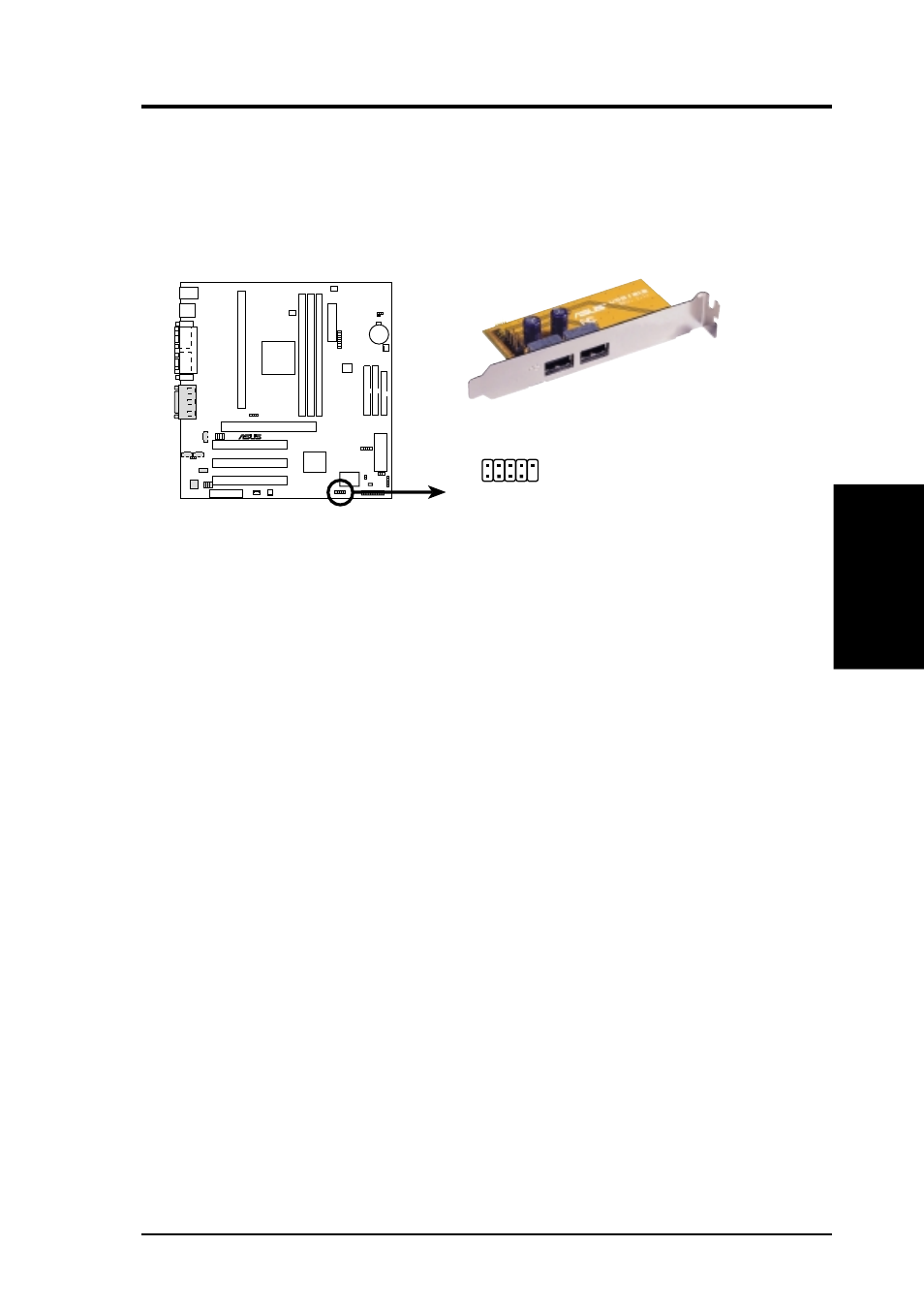

20) USB Connector Set (10-1 pin USBPORT)
If the USB Ports on the back panels are inadequate, a USB connector set is
available midboard. If you want to use this connector, you need to use the bundled
external connector set. The external connector set connects to the 10-1 pin block
and mounts to an open slot on your computer’s chassis.
K7V-RM USB Ports 2 and 3
USBPORT
1: USB Power
2: USBP2–
3: USBP2+
4: GND
5: NC 6: USB Power
7: USBP3–
8: USBP3+
9: GND
Optional USB
1 5
6 10
01 01 01
K7V-RM
®
