ASUS K7V-RM User’s Manual 33
3. HARDWARE SETUP
DMA Channels 3. H/W SETUP

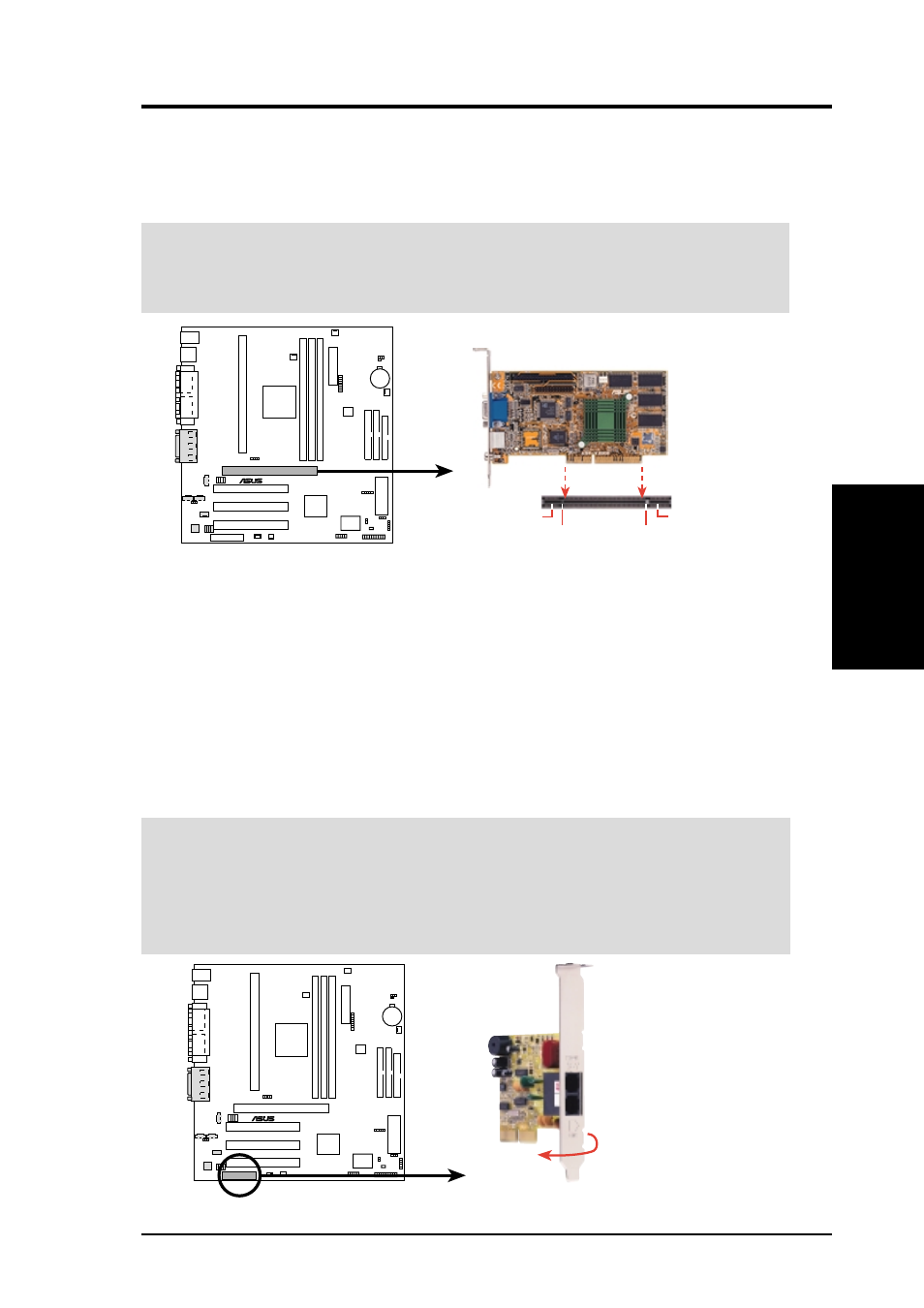

3.7.3 Accelerated Graphics Port Pro (AGP Pro)
This motherboard provides an Accelerated Graphics Port (AGP Pro) slot to support
a new generation of graphics cards with ultra-high memory bandwidth, such as an
ASUS 3D graphics accelerator.
CAUTION! To avoid damaging your AGP/AGP Pro graphics card, it is highly
recommended that you turn off your computer’s power supply before inserting
your graphics card into the slot.
01 01 01
K7V-RM
®
K7V-RM Accelerated Graphics Port (AGP)
TOP VIEW
Rib (inside slot) Rib
20-pin bay 28-pin bay
AGP Card without Retention Notch
3.7.4 Audio Modem Riser (AMR) Slot
This connector supports a specially designed audio and/or modem card called an AMR.
Main processing is done through software and controlled by the motherboard’s sys-
tem chipset. This provides an upgradeable audio and/or modem solution at an incred-
ibly low cost. There are two types of AMR, one defined as primary and another de-
fined as secondary. This motherboard uses the primary channel so that a secondary
AMR can coexist without the need to disable the onboard CODEC. The motherboard’s
onboard CODEC must be disabled when using a primary AMR.
IMPORTANT: The AMR slot of this motherboard shares the same expansion slot
as PCI Slot 3. Because of this and its location, the slot can only accept a specially
designed AMR card (optional). The components of a standard AMR card and its
bracket face toward the edge of the motherboard while those of the specially-
designed card face the expansion slots. For availability, see your vendor or dealer.
01 01 01
K7V-RM
®
K7V-RM Audio Modem Riser (AMR) Slot
Unlike that of standard cards,
the component side of the
specially-designed AMR
card faces the motherboard’s
expansion slots when the
card is installed
ASUS MR-1
