Host RJ-11 IP Gateway User Guide, version 21
Configuration Settings and Commands
• Ethernet Address: MAC Address of the Host RJ-11 IP Gateway.
• IP Address: The current IP Address of the Host RJ-11 IP Gateway and how the IP address was
assigned (in the example, a Raven-E in Public Mode used DHCP to give the Host RJ-11 IP
Gateway the IP addressed assigned by the cellular network).
• IP Netmask: The current subnetmask of the Host RJ-11 IP Gateway and how the device
obtained it.
Serial Settings
The Serial Settings page allows you to specify the baud rate, protocol, character size, parity, stop
bits, and flow control behavior for the RJ-11 port (Phone).

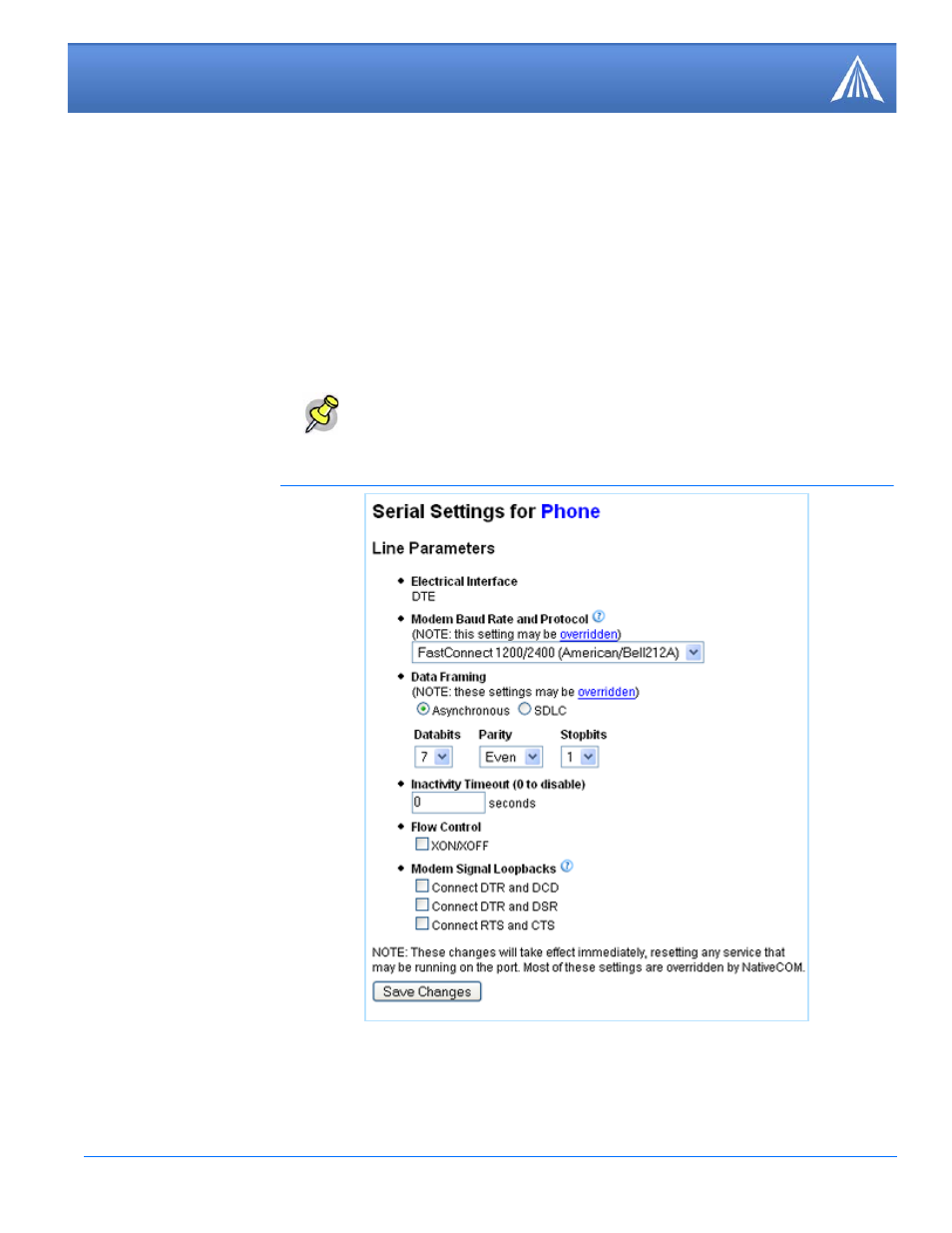

FIGURE 4. Host RJ-11 IP Gateway: Serial Settings
• Enabling flow control enables it on both input and output.
• The inactivity time-out shuts down the service on the port if there is no input or output in the
specified time-out period.
Note: For most configurations, the default settings (shown in the screen shots) are
best. Change these parameters only if you know the device you will be connecting
to the Host RJ-11 IP Gateway requires special settings.
