Hardware

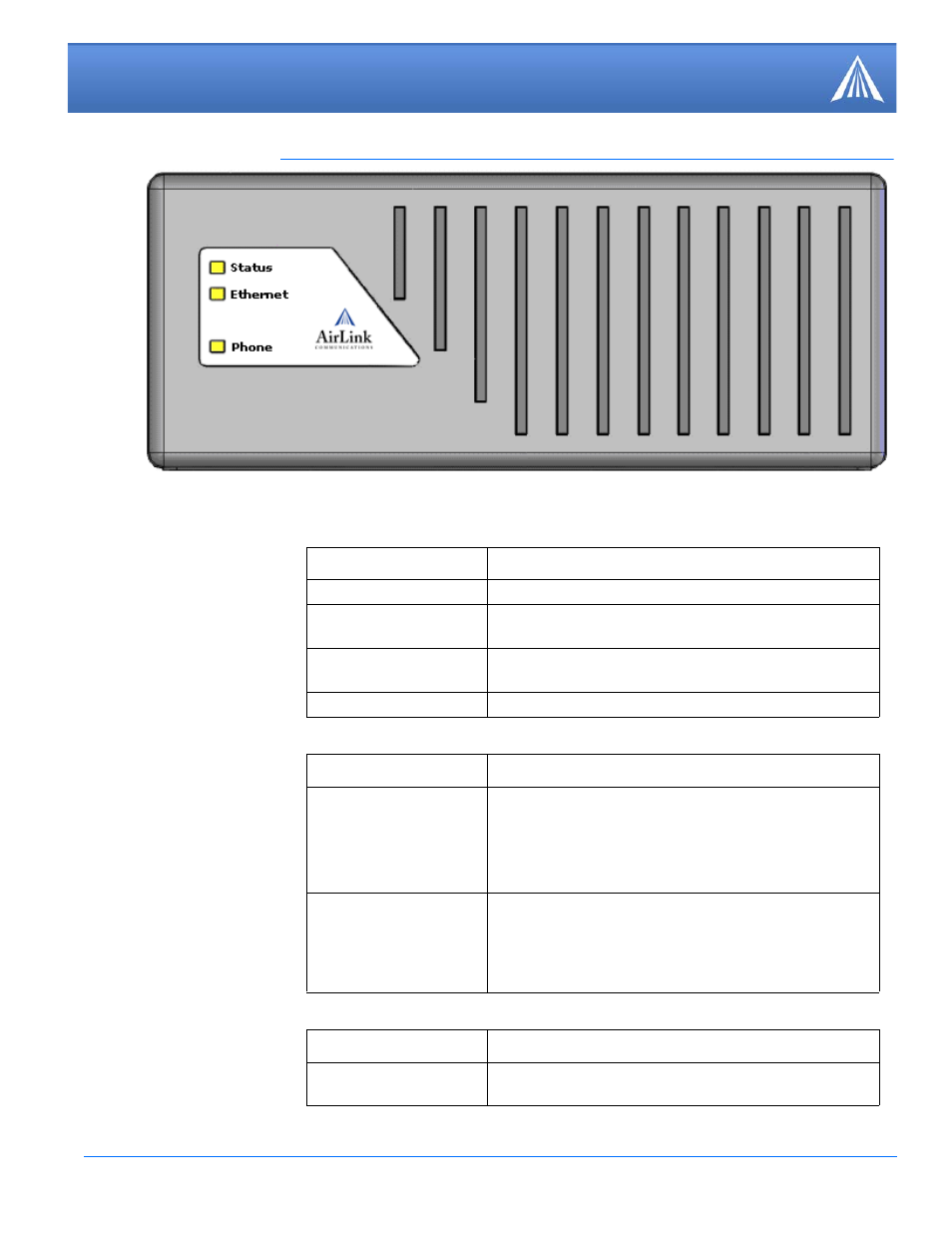

FIGURE 3.
Host RJ-11 IP Gateway Top Panel (not to scale)
•
STATUS - Indicates the overall status of the device.
TABLE 1.
Status - Normal Operation
LED Condition
Description
Blinking Yellow
The Host RJ-11 IP Gateway is starting up.
Solid Green
The Host RJ-11 IP Gateway is obtaining an IP address from
the modem.
Blinking Green
The Host RJ-11 IP Gateway has an IP address and is operat-
ing normally.
Off
No power to the Host RJ-11 IP Gateway.
TABLE 2.
Status - Resetting the Configuration
LED Condition
Description
Alternating Green/Red
While the Reset button is held in, the status light will begin
to blink in this sequence to indicate the Host RJ-11 IP Gate-
way will shortly restore the factory default condition.
If you do not want to restore the factory default, release the
button before the sequence changes to Green/Yellow.
Alternating Green/Yellow
While the Reset button is held in, the status light will begin
to blink in this sequence to indicate the factory default con-
figuration was restored. Once the Host RJ-11 IP Gateway
indicates the configuration was restored, you can release the
reset button.
TABLE 3.
Status - Error Conditions
LED Condition
Description
Alternating Green/Red
A serious system error occurred. See the system log for
more details.
