30
-EN

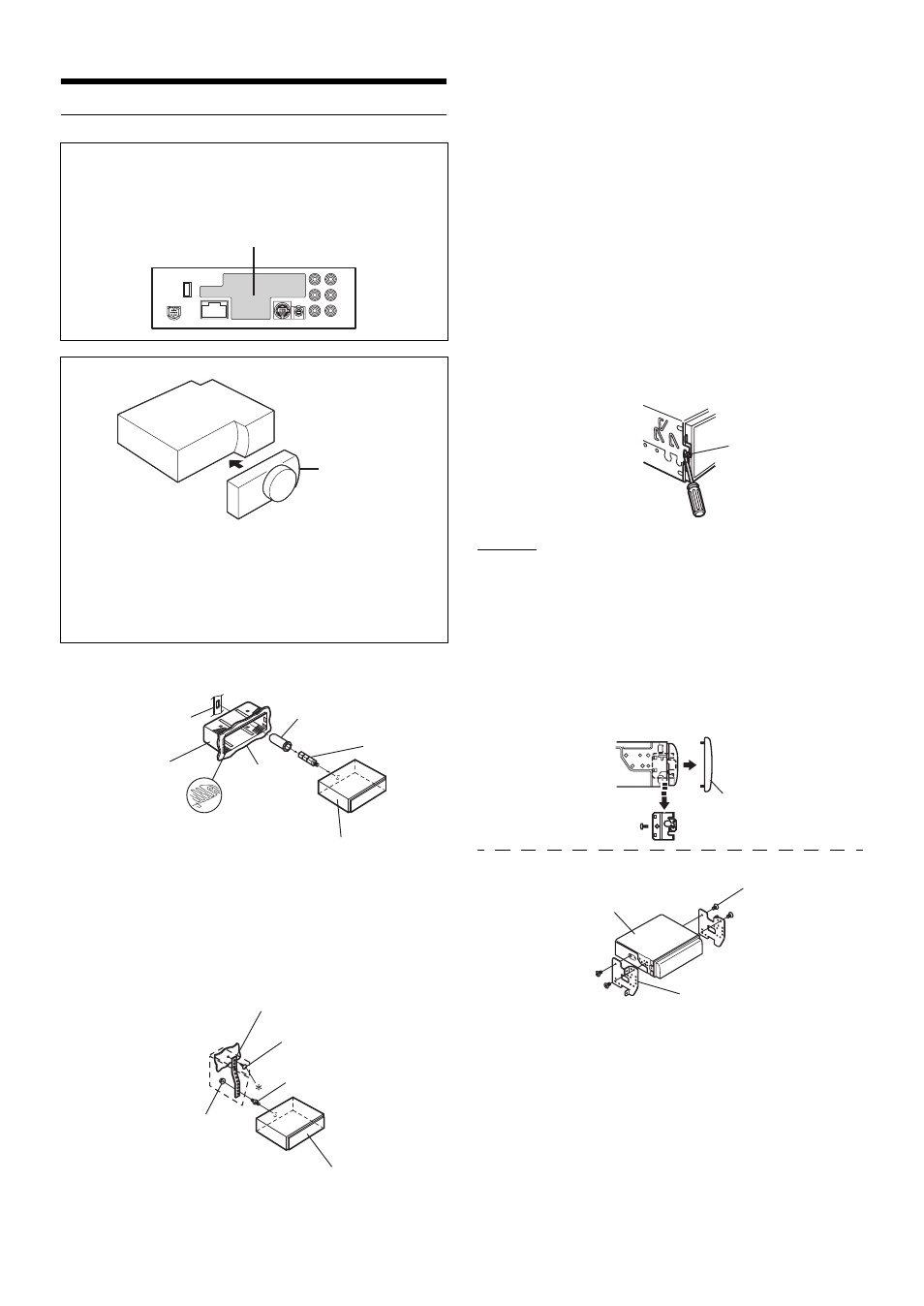

Installation
\
Removal
1. Remove the detachable front panel.
2. Use a small screwdriver (or similar tool) to push the
locking pins to the “up” position (see above drawing).
As each pin is unlocked, gently pull out on the unit to
make sure it does not re-lock before unlocking the
second pin.
3. Pull the unit out, keeping it unlocked as you do so.
Caution
Do not block the unit’s heat sink, thus preventing air circulation.
If blocked, heat will accumulate inside the unit and may cause a
fire.
Caution
When you install this unit in your car, do not remove the
detachable front panel.
If the detachable front panel is removed during installation, you
might press too hard and warp the metal plate that holds it in
place.
1
* If the installed mounting sleeve is loose in the main unit, the pressure
plates may be bent slightly to remedy the problem.
Remove the mounting sleeve from the main unit (see
“Removal” on page 30). Slide the mounting sleeve
into the dashboard and fix it with the metal shackles.
2
Heat sink
Detachable
Front Panel
Pressure Plates *
Dashboard
This unit
Mounting Sleeve
(Included)
Bracket
Rubber Cap
(Included)
Hex Bolt
(Included)
Metal Mounting Strap
Screw
Bolt Stud
This unit
Hex Nut (M5)
When your vehicle has the Bracket, mount the long
hex bolt onto the rear panel of the iDA-X001 and put
the Rubber Cap on the hex bolt. If your vehicle does
not have the Mounting Support, reinforce the head
unit with the metal mounting strap (not supplied).
Connect all the leads of the iDA-X001 according to
details described in the CONNECTIONS section.
• For the screw *, provide a proper screw to the chassis installing
location.
3
Slide the iDA-X001 into the dashboard. When the
unit is in place, make sure the locking pins are fully
seated in the down position. This can be done by
pressing firmly in on the unit while pushing the
locking pin down with a small screwdriver. This
ensures that the unit is properly locked and will not
accidentally come out from the dashboard. Install
the detachable front panel.
Lock pin
Front Frame
Screws (M5 × 8)
(Included)
This unit
Mounting Bracket
