ADC PWR-AVIS - Manual (Page 26)

ADCP-61-814
•
Issue 1
•
April 1999
Page 22
© 1999, ADC Telecommunications, Inc.
REAR
EQUIPMENT
CONNECTIONS
IN
OUT
VIDEO TRANSPORT
SYSTEM
NETWORK ELEMENTS
REAR
EQUIPMENT
CONNECTIONS
IN
OUT
ADD/INSERT
EQUIPMENT
CROSS-CONNECT
JUMPER
MON
FRONT JACKS
75 OHM
75 OHM
500 OHM
0.056 µ H
INDUCTOR
75 OHM
JACK ACCESS CARD REAR INTERFACE UNIT
OUT
IN
0.033 µ H
INDUCTOR
MON
FRONT JACKS
75 OHM
75 OHM
500 OHM
0.056 µ H
INDUCTOR
75 OHM
JACK ACCESS CARD REAR INTERFACE UNIT
OUT
IN
0.033 µ H
INDUCTOR
REAR
EQUIPMENT
CONNECTIONS
IN
OUT
REAR
EQUIPMENT
CONNECTIONS
IN
OUT
MODULATOR/
UP CONVERTER
NETWORK ELEMENTS
CROSS-CONNECT
JUMPER
MON
FRONT JACKS
75 OHM
75 OHM
500 OHM
0.056 µ H
INDUCTOR
75 OHM
JACK ACCESS CARD REAR INTERFACE UNIT
OUT
IN
0.033 µ H
INDUCTOR
MON
FRONT JACKS
75 OHM
75 OHM
500 OHM
0.056 µ H
INDUCTOR
75 OHM
JACK ACCESS CARD REAR INTERFACE UNIT
OUT
IN
0.033 µ H
INDUCTOR
10222-A

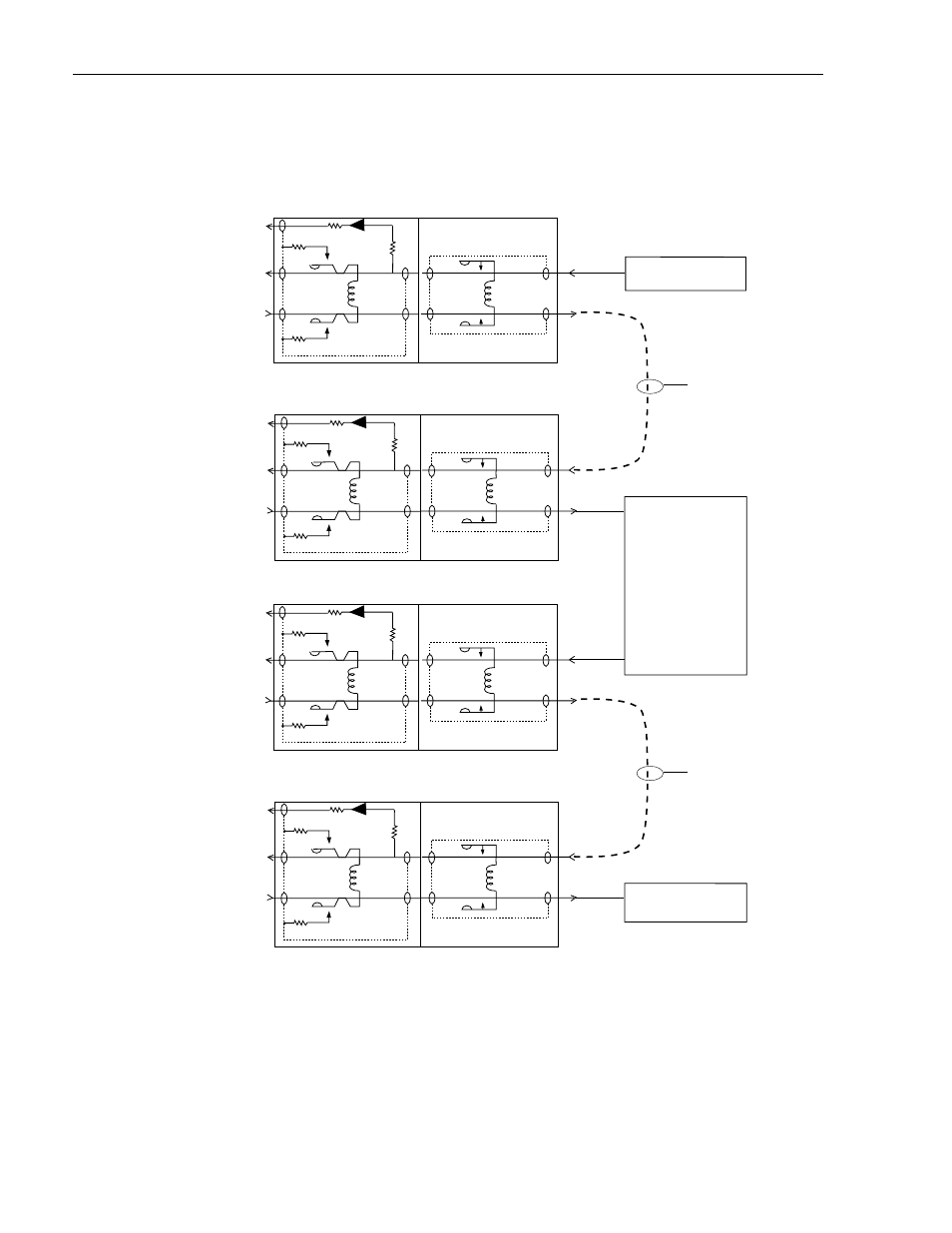

Figure 26. Cross-Connect Application for Local Commercial Insertion
