ADC PWR-AVIS - Manual (Page 24)

ADCP-61-814
•
Issue 1
•
April 1999
Page 20
© 1999, ADC Telecommunications, Inc.
MON
FRONT JACKS
REAR
EQUIPMENT
CONNECTIONS
75 OHM
0.056 µ H
INDUCTOR
75 OHM
JACK ACCESS CARD WITH
UNITY GAIN AMP
REAR INTERFACE UNIT
OUT
IN
IN
OUT
0.033 µ H
INDUCTOR
VIDEO TRANSPORT
SYSTEM
MODULATOR/
UP CONVERTER
NETWORK ELEMENTS
IN
LOCAL VIDEO
TEST SET
PATCH
CORD
75 OHM
500 OHM
7082-A

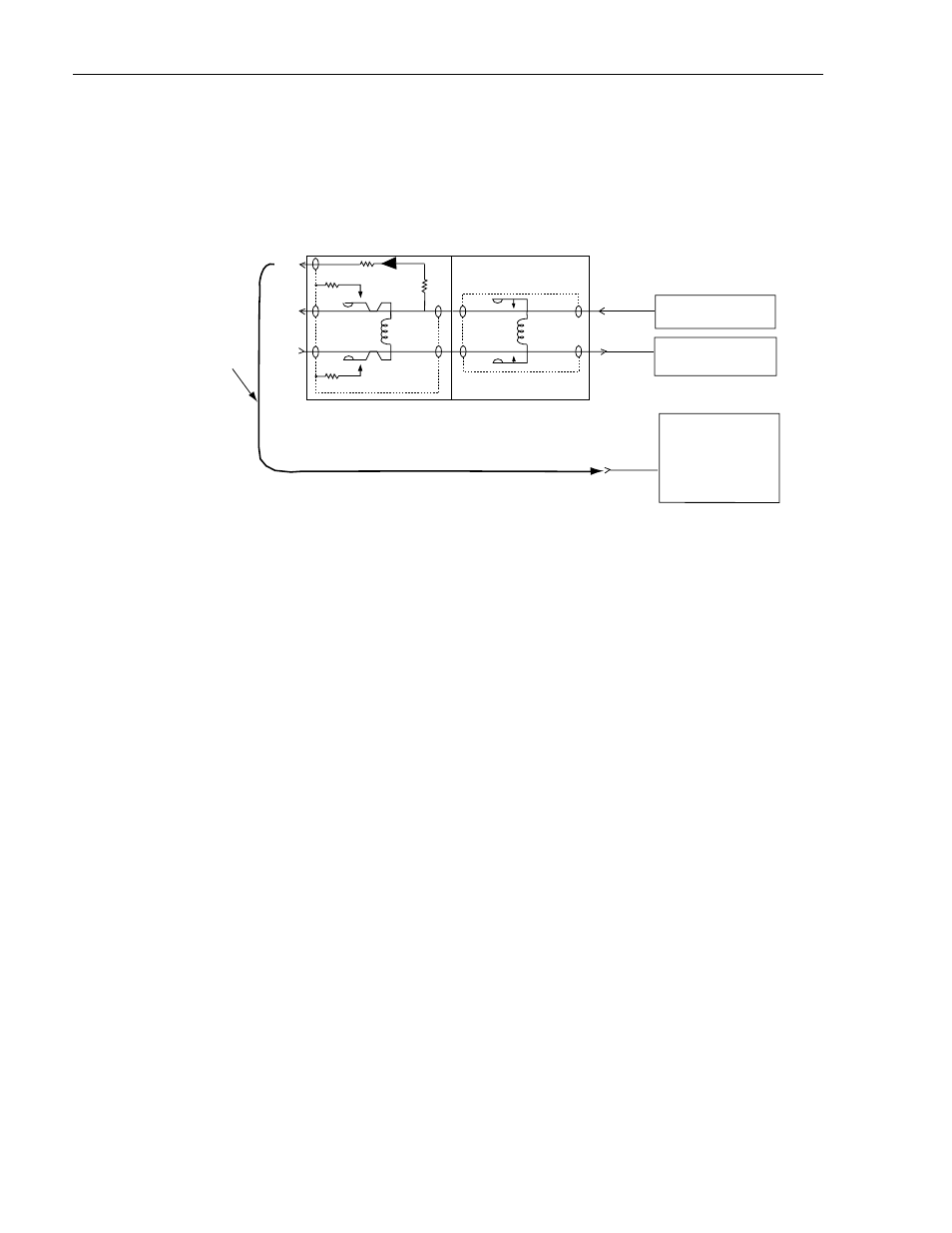

Figure 23. Non-Intrusive Video Test Access
