Setra System Model 256 - Manual (Page 5)

+ EX
C
EX
C
GND OUT + OUT
Voltage Connections
Current Connections
Screw Terminal
Designations
Diagram 1
+ EX
C
EX
C
GND
Diagram 2
Removable
Zero/Span
Access Plugs
Removable
Terminal Block
Connector
5
3.1 Voltage Output Units
The Model 256 is a 3-wire circuit. The -EXC and -OUT are commoned on the
circuit. The 256 can operate from a 12 to 28 VDC excitation. The 256 has a 0.1-
5.1 VDC output.
+ Excitation; connect to 12-28 VDC power supply
+ Output; connect to controller or monitor
– Output; connect to controller or monitor
– Excitation; connect to return of 12-28 V power supply
GND Connect to system or earth ground
The Model 256 can be wired as a three wire device by connecting – output,
excitation and shield to a common ground. However, accuracy will be reduced
with increase in lead resistance.

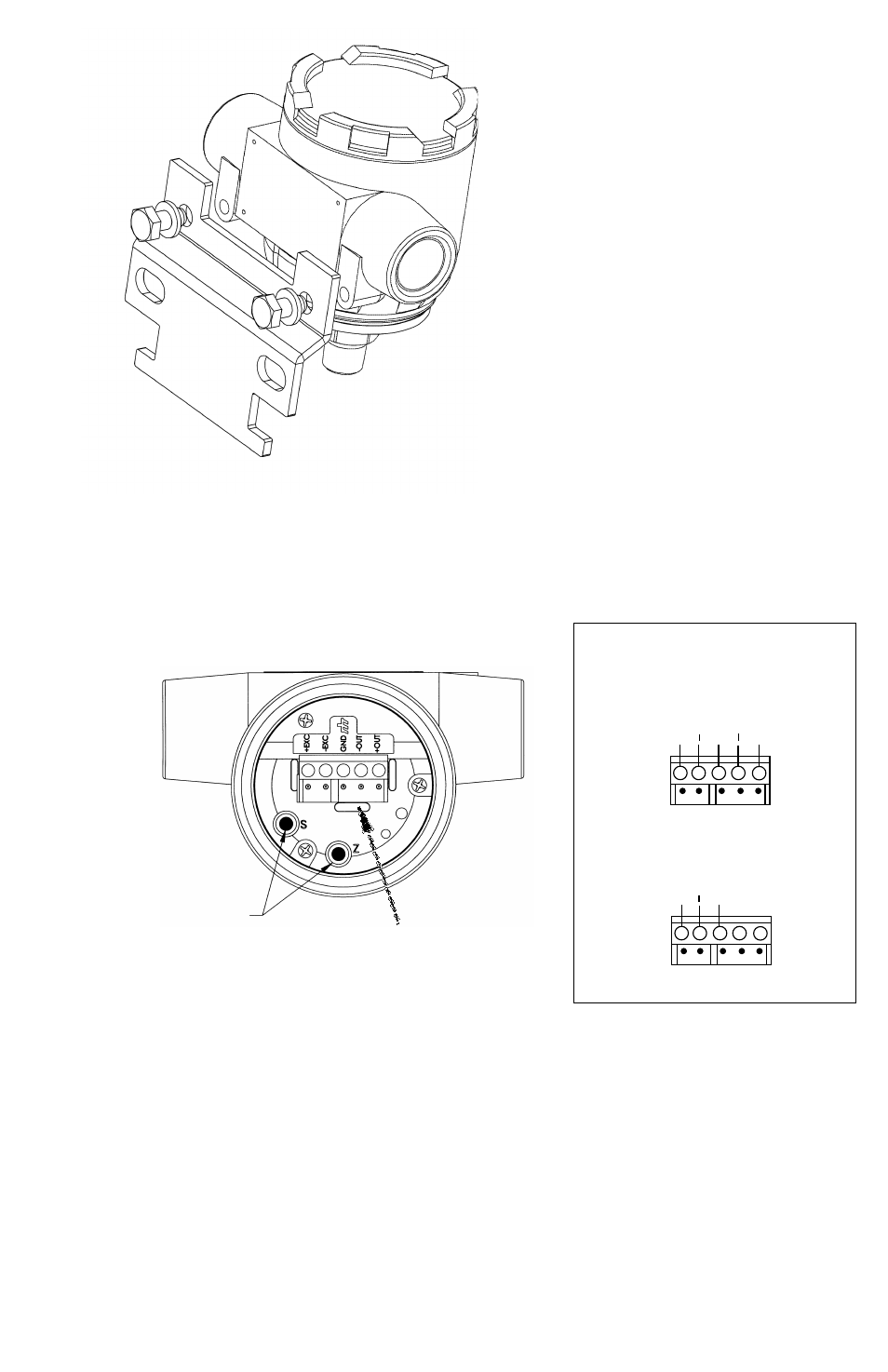

2.6 Mounting Accessories
The Model 256 is provided with a bracket
and two hex bolts for mounting and a 1/2”
NPT plug for the unused conduit opening.
The bracket is suitable for mounting with a U-
bolt or a band clamp. There are 1/4-20 UNC
threaded holes on the back of the 256
transducer for direct mounting and/or
grounding.
3.0 ELECTRICAL INSTALLATION
Wiring is through a 1/2” conduit opening. Remove
the screw cover to access the removable wiring
terminal block connector. The terminal block
connector version has five terminals for wiring
+EXC, -EXC, GND, -OUT, and +OUT (see Diagram 1).
Remove the terminal block connector to facilitate wiring to screw terminals.
Refer to the terminal block connector label for terminal designations. (See
Diagram 2 for screw terminal designations.) After wiring, plug connector back
into pin socket and neatly tuck all wiring into wire recess cavity.
