2 Mechanical Variants and Dimensions
The HM4 is a new development from ROTRONIC and comes in three variants.
Connector directly at the housing
Connector on remote cable
Cable with open ends
2.1.1 HM4 with 7-Pin Tuchel Connector at Housing

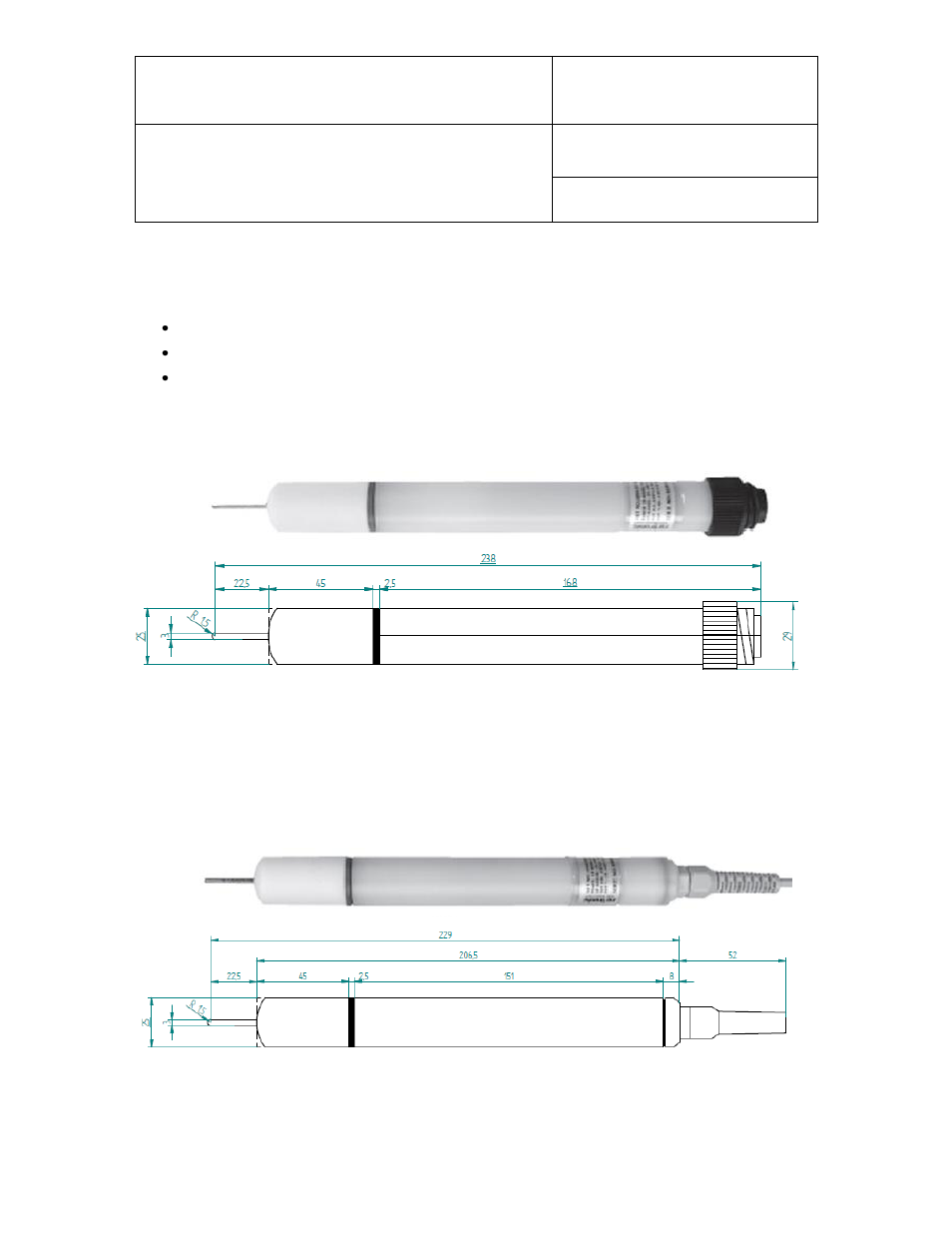

Figure 1: Dimensions of the HygroMet4 with Tuchel connector at the housing in mm
2.1.2 HM4 with Cable
The HM4 is available with a cable length of 2 m or 5 m. The cable is available with open ends or Tuchel T7
connectors.
Figure 2: Dimensions of the HygroMet4 with cable in mm
