Push Button Operation for CF8-W-Disp-CO

This sensor has two push buttons, MENU and ESC. The YELLOW LED will
acknowledge a successful push by a short flash. The push button MENU is available
for selection of display value or maintenance commands, whereas ESC is available
to escape back from a selected level.

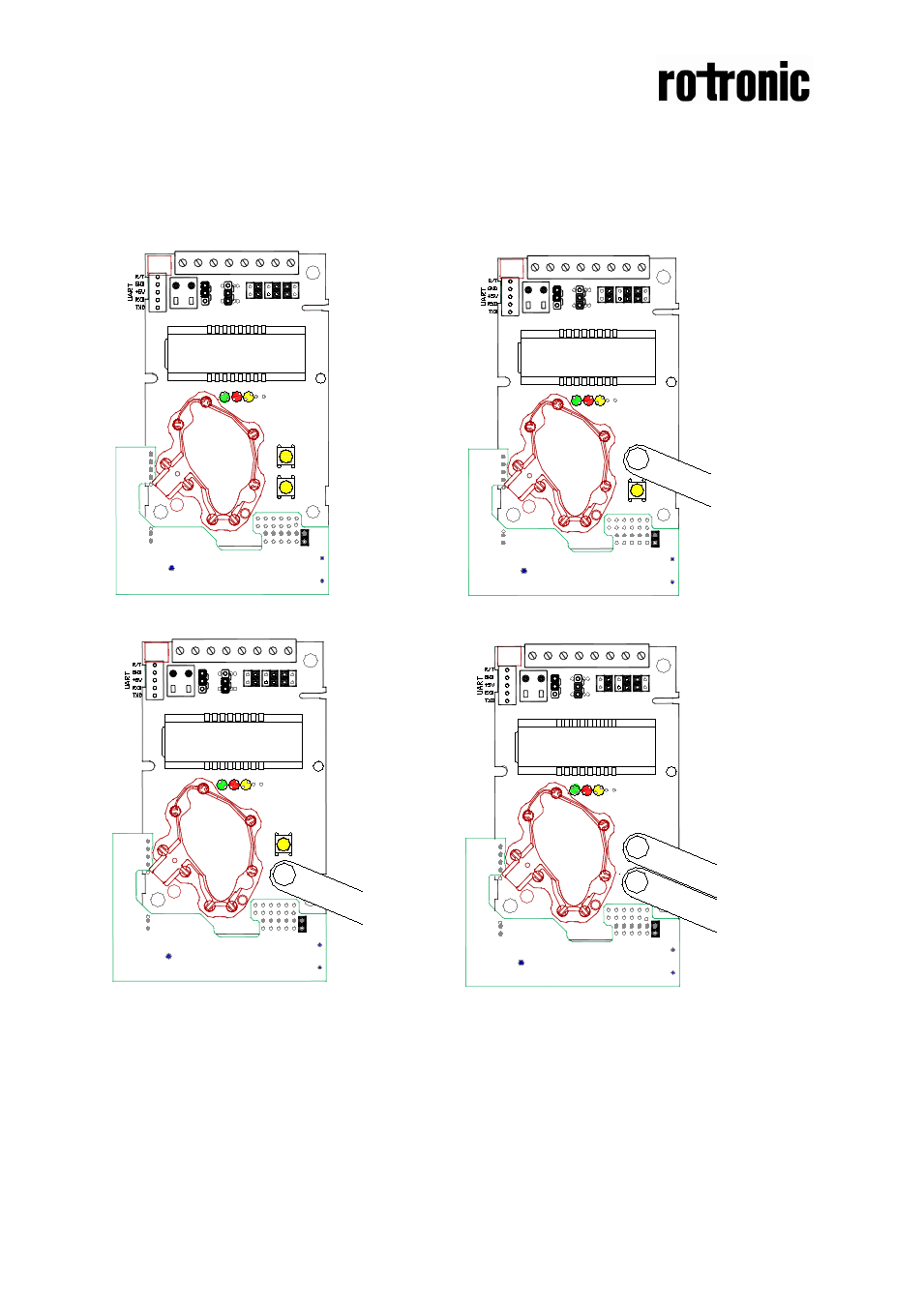

Figure 6 The sensor with push buttons

Figure 7 The push button MENU is pushed

Figure 8 The push button ESC is pushed

Figure 9 The ENTER command is done by pushing

buttons MENU and ESC at the same time for
about 14 seconds

Display modes

In DISPLAY MODE the DEFAULT operation is that the sensor alternates between
carbon dioxide and carbon monoxide readings presentation. The push button
MENU(+) is used to select the indicated value on the display to be the error code or

ESC
