FUNCTIONAL DESCRIPTION
CF8-W-Disp-CO is delivered pre-programmed (see description below). The user
can adjust the product to his/hers application by, for example, changing the
measurement ranges of the linear outputs, modify the set points of the alarm
outputs, invert outputs and also reconfigure the functions and the logic that controls
the outputs.
OUT1 = CO
Start point
OUT2 = CO
2
OUT3 =
Gas alarm relay
OUT4 = Sum alarm
Internal CO and CO
2
recorder
samples data continuously every 20
minutes. After 13 days and 8 hours
the storage memory is full and the
oldest data are eventually overwritten
one by one. The data storage is
secured every four hours. In case of
power failure the sampled data of the
latest four hours at most will be lost.
The other values can be studied with
the software UIP4.3 and exported to
a text file for further treatment in e.g.
MS-EXCEL.
-
10,0
20,0
30,0
40,0
50,0
60,0
70,0
80,0
90,0
100,0
16:
00
20:
00
00:
00
04:
00
08:
00
12:
00
16:
00
20:
00
00:
00
04:
00
08:
00
12:
00
16:
00
20:
00
00:
00
04:
00
08:
00
12:
00
16:
00
20:
00
00:
00
04:
00
08:
00
12:
00
16:
00
20:
00
00:
00
04:
00
08:
00
12:
00
16:
00
20:
00
00:
00
04:
00
08:
00
12:
00
16:
00
20:
00
00:
00
04:
00
08:
00
12:
00
300
400
500
600
700
800
900
1 000
1 100
1 200
1 300
CO (ppm)
CO2(ppm)
CO (ppm) CO2(ppm

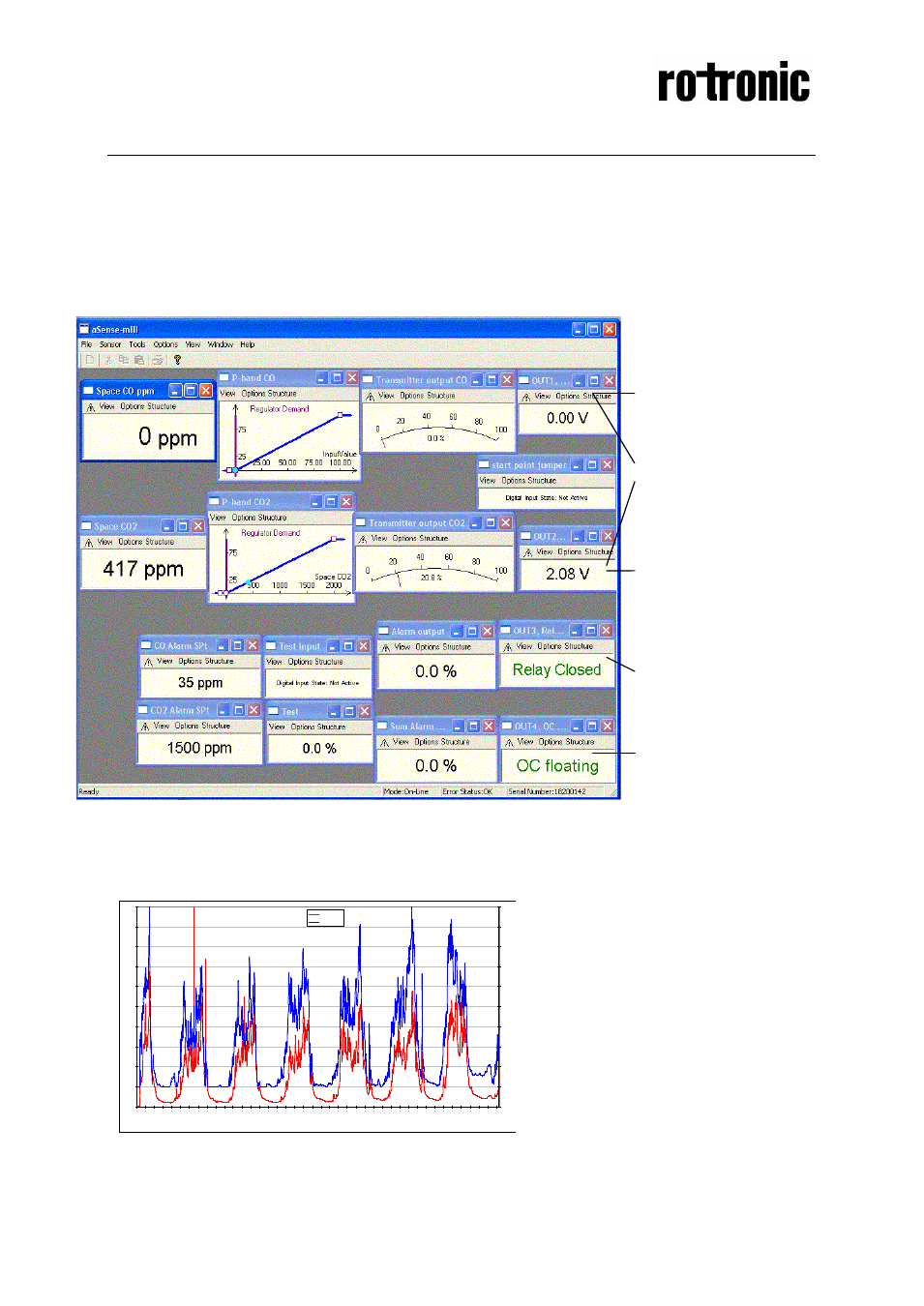

Figure 2 Print screen of UIP4.3 PC work space of CF8-W-Disp-CO where the
pre-set functions can easily be redefined. The four outputs (far right) are here
arranged in rows together with the function blocks that control the output.
Figure 3 Recorded readings
