Mechanical drawing, Figure 3-1: commboard top view, 1 mechanical drawing – PNI CommBoard User Manual

Page 6

background image

PNI Sensor Corporation

DOC#1018122 r02

PNI CommBoard User Manual

Page 4

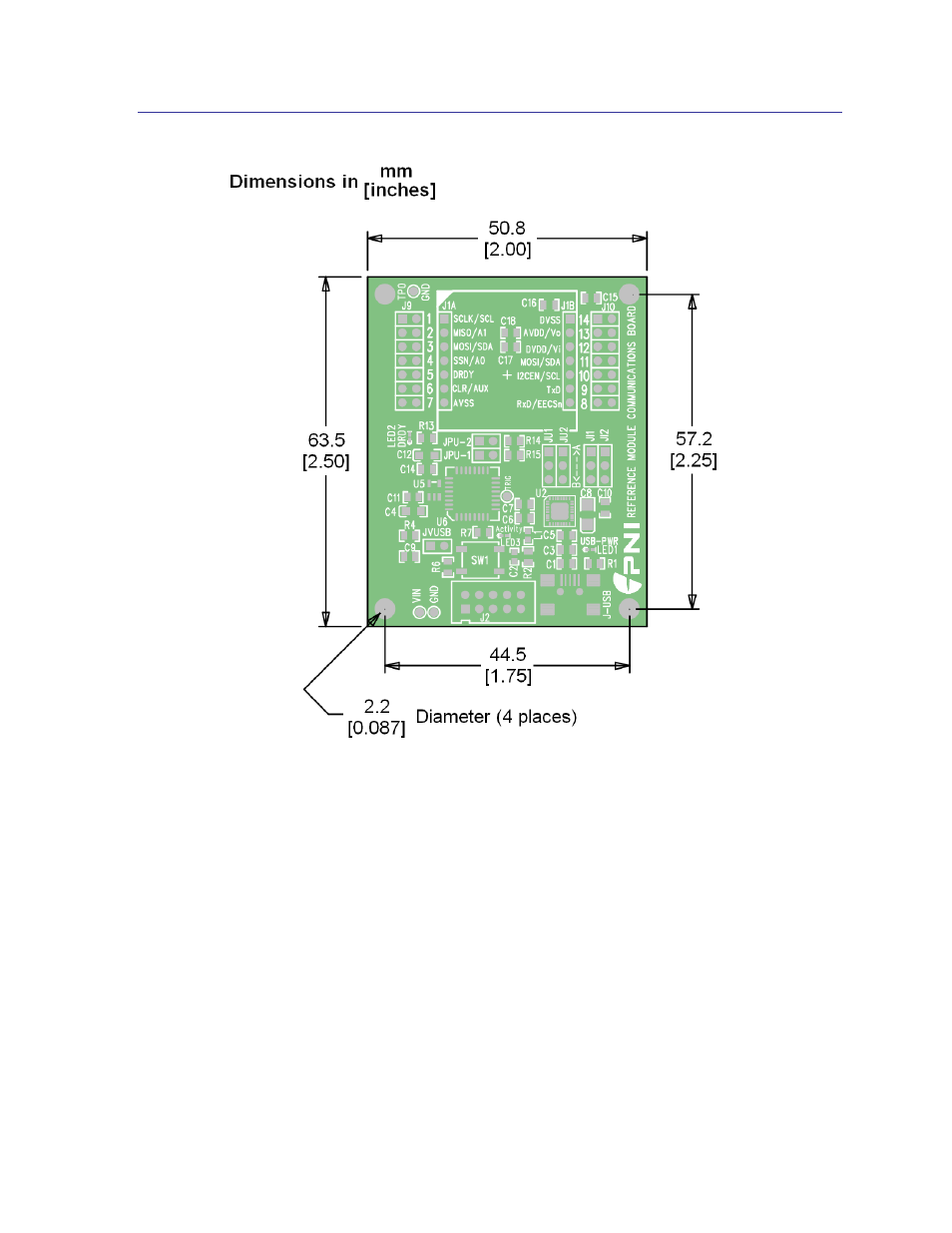

3.1 Mechanical Drawing

Figure 3-1: CommBoard Top View
