Surface Mounting

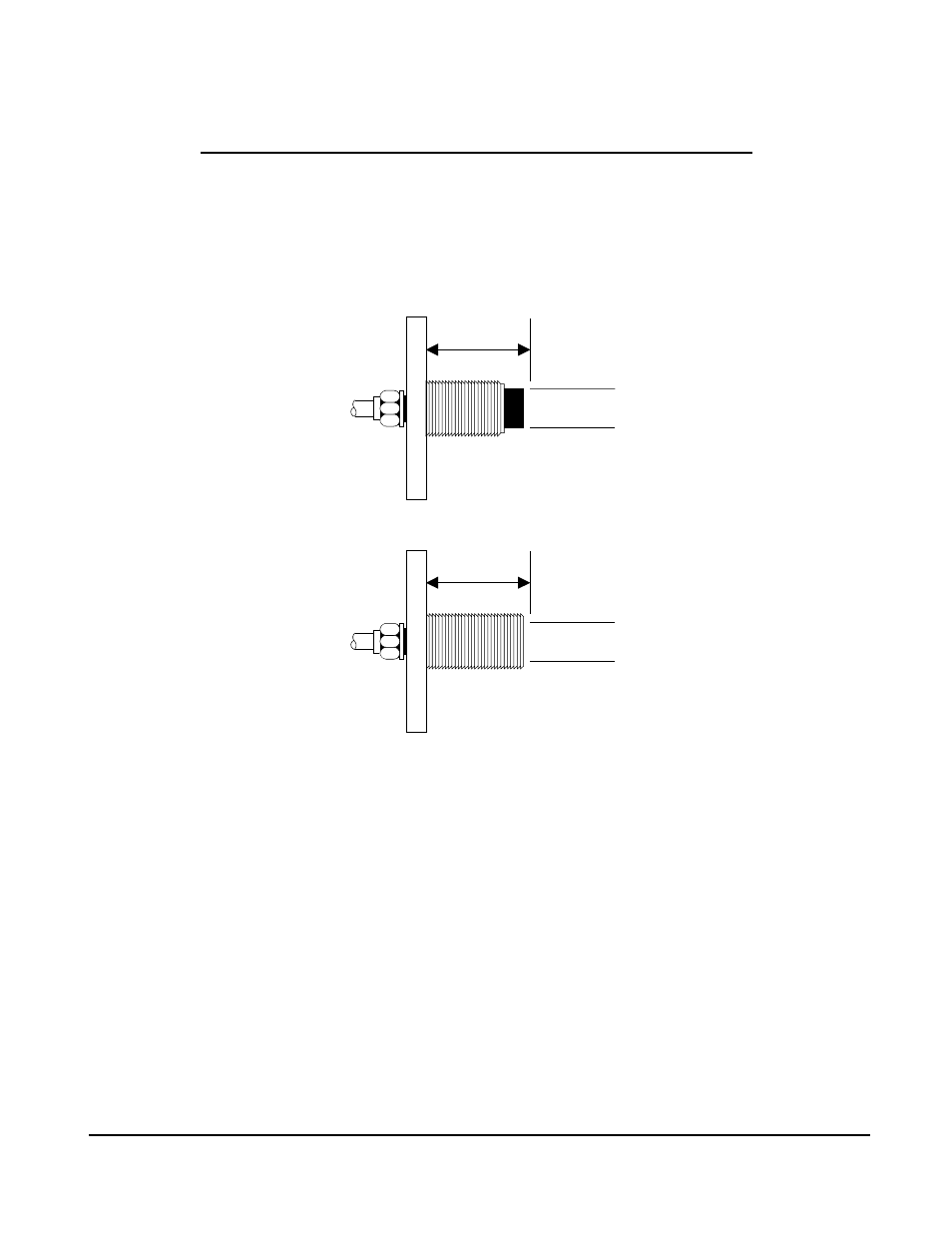

Surface mounting will not affect a sensor’s calibration assuming there is
nothing conductive in the sensor’s “viewing range” other than the target.
When surface mounting in a conductive fixture, the sensor face of an
unshielded sensor should be 2.5 to 3 times its diameter away from the
fixture. The factor for shielded sensors is 0.25 to 0.5 times the diameter.
SENSOR
DIAMETER
1.5 TO 2 X *
SENSOR
DIAMETER
SENSOR
DIAMETER
0.25 TO 0.5 X
SENSOR
DIAMETER
UNSHIELDED
SHIELDED
* For Sensors with peek housings, this dimension should be increased to 2.5 to 3 X.
