Kaman Precision Products PART NO: 860515-001
www.kamansensors.com Last Revised: 6/20/2011
9
PART 4 – OPTIONAL DISPLAY MODULE
The Display Module provides a convenient method to monitor Measuring Channel
output for Sub-Racks and Instrument Enclosures. The Display Module is a two slot
wide panel with an LED display and selector switch. It can display output of a single
Measuring Channel in the rack at a time. The Display Module must be installed in slots
1 and 2 of a rack or instrument enclosure.
The Display Module includes:
 a front panel with a 4-½ Digit
± 10VDC LED display, a switchboard with a 10-
position switch
 a back plane PCB for DC power and Measuring Channel input
 A ribbon cable connection between front panel and back plane PCB
The Displayed output is the single ended voltage (the difference between V+ and
Ground) of the Measuring Channel selected. For the meter to display differential output
(the difference between V+ and V- Outputs), jumper J7 on the KDM-8206 Measuring
Channel must be changed from positions 1 and 2 to positions 2 and 3 . (Reference the
KDM-8206 System User’s Manual)

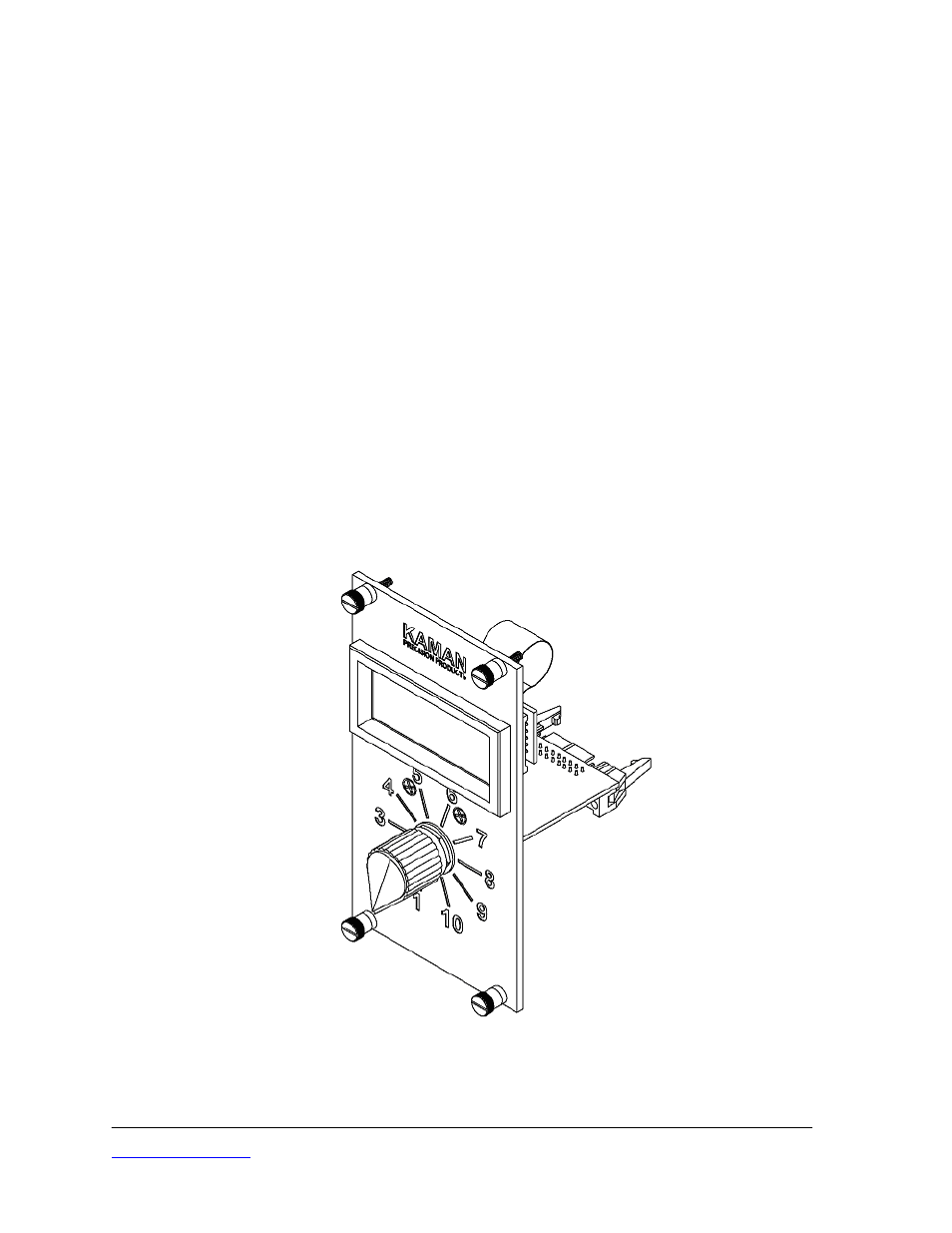

Figure 5 Display Module Front Panel
