PART 5 - ENCLOSURES
Kaman Precision Products provides three different enclosures for the KDM-8206
Measuring Channels.
5.1 Full 19" Instrumentation Sub-Rack - 3U/84HP
The sub-Rack is a 19" wide frame having solid side panels and horizontal rails across
the top and bottom to hold the Measuring Channels in place. Use of a sub-Rack
enables installation of the KDM-8206 system into a standard 19" test equipment rack.
The sub-Rack normally includes a built in 120VAC/240VAC power supply to provide
±15VDC required by the Measuring Channels. It also can be configured with a display
module that has up to ten selectable inputs.
Part Number Configuration
855859-0XX No display module, 12 available positions
855859-1XX One display module, 10 available positions
855859-2XX No display module, rack to rack Synchronization, 12 available
positions
855859-3XX One display module, rack to rack Synchronization, 10 available
positions

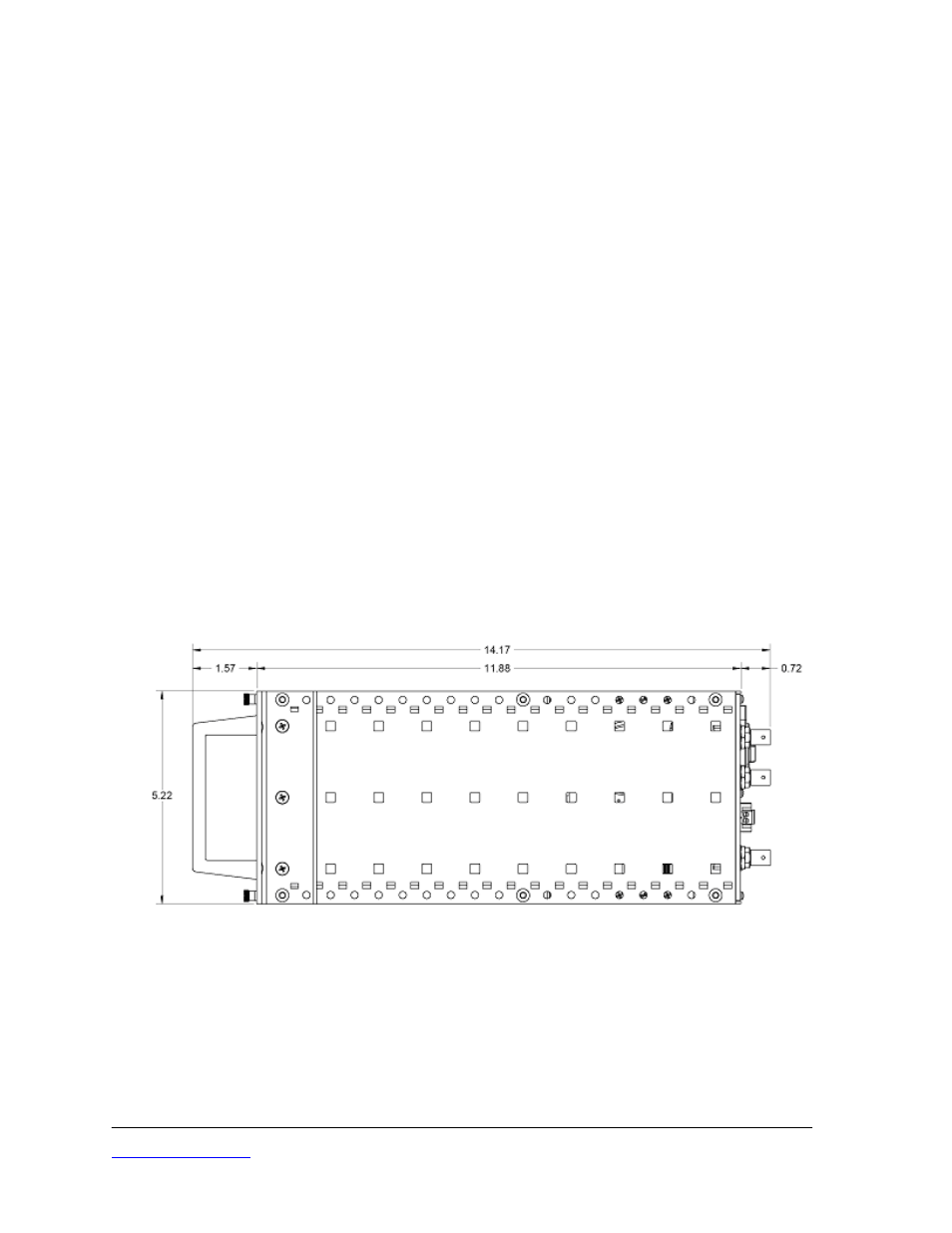

Figure 9 Full 19" Sub-Rack Side Outline drawing
