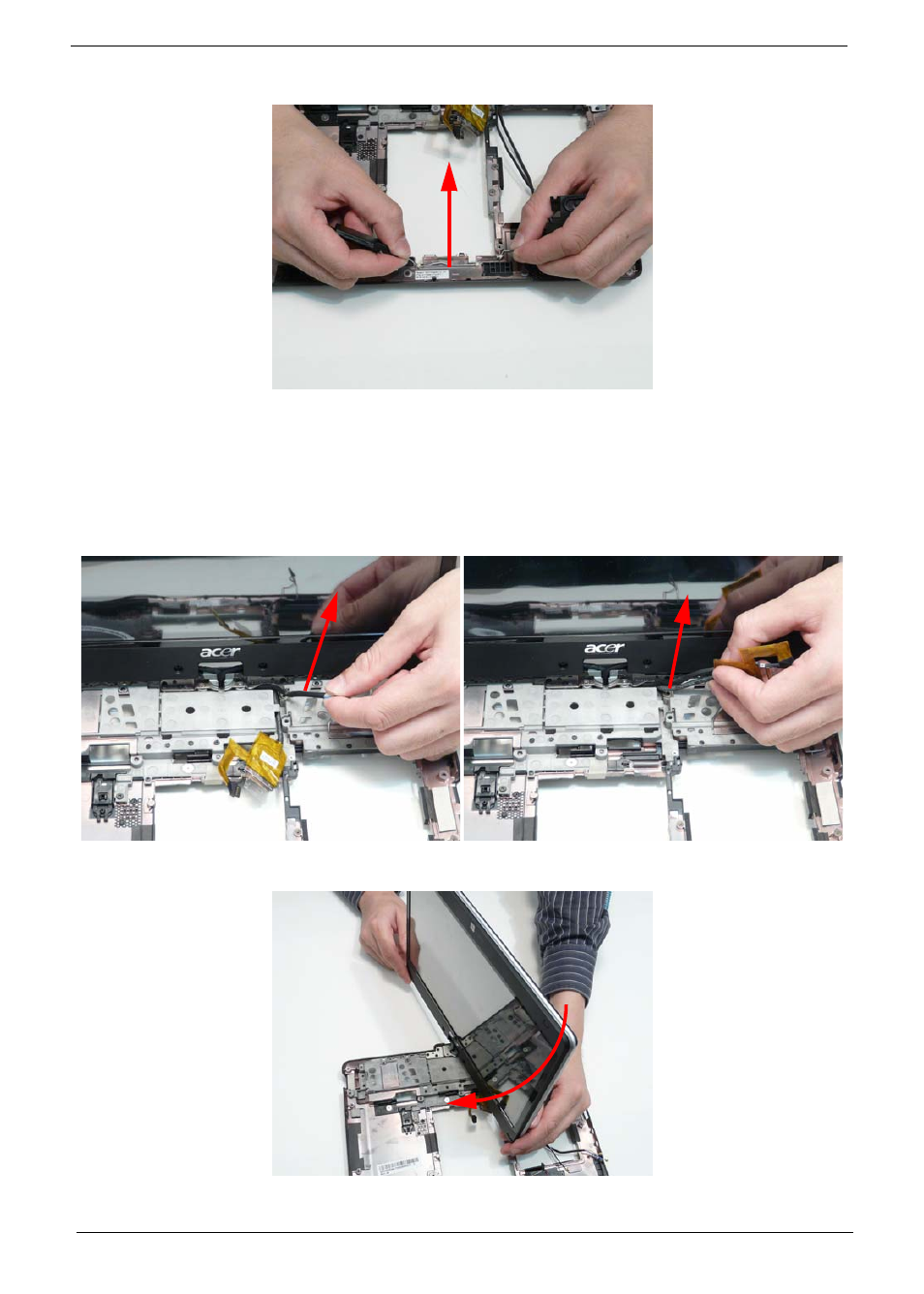

Grasp the speaker housings and remove the speaker module.
Removing the LCD Module
1.
See “Removing the Mainboard” on page 73.
2.
Lift the antenna cable (i) and the LCD cable (ii) away from the retention guide hook.
3.
Turn the LCD module ninety (90) degrees.
i)
ii)
