Removing the lcd brackets – Acer 1820PT User Manual
Page 101
Chapter 3
91

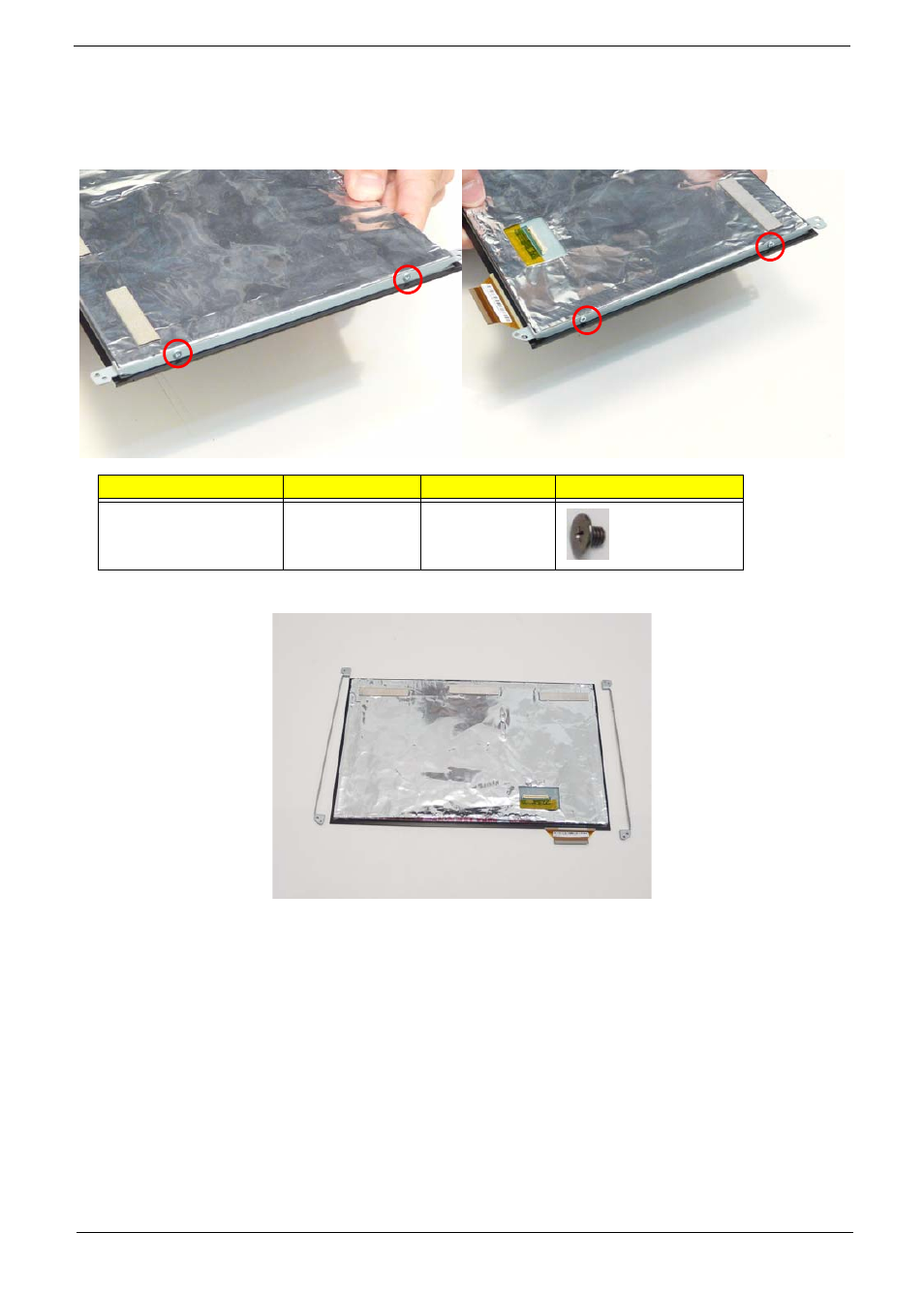

Removing the LCD Brackets
1.
See “Removing the Microphone” on page 86.
2.
Remove the four (4) screws from the left and right brackets.
3.
Remove the brackets.
Step
Screw
Quantity
Screw Type.
LCD Panel Brackets
M2*2.5
4
