Mainboard bottom view – Acer 1820PT User Manual
Page 176
166
Chapter 5

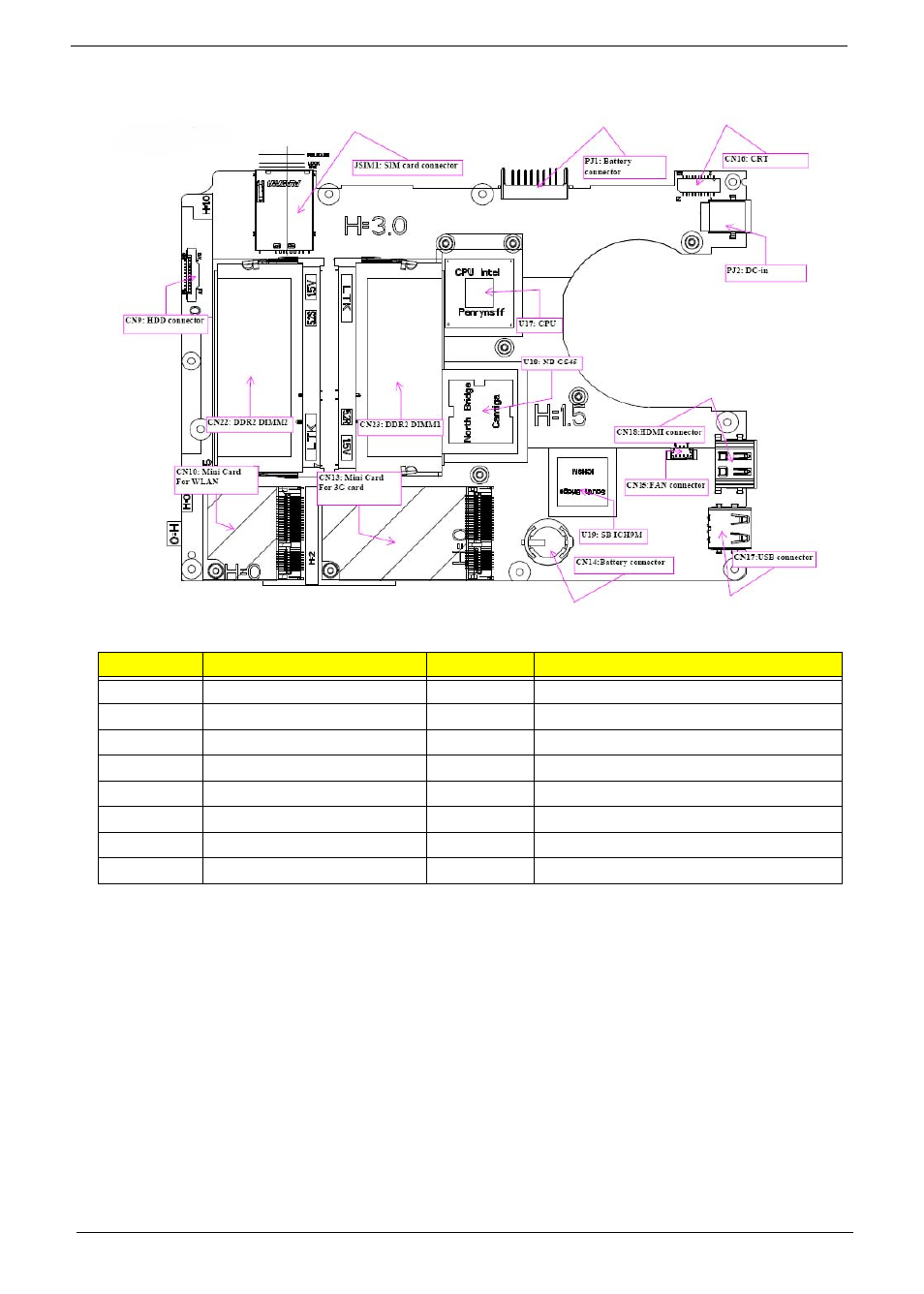

Mainboard Bottom View
Item
Description
Item
Description
CN9
HDD connector
CN17
USB connector
JSIM1
SIM card connector
CN14
RTC battery connector
PJ1
Battery connector
CN13
Mini card for 3G
CN16
CRT
CN10
Mini card for WLAN
PJ2
DC-in
CN22
DRR2 DIMM2
U17
CPU
CN23
DDR2 DIMM1
U18
North Bridge GS45
U19
SB ICH9M
CN18
HDMI connector
CN15
Fan connector
