Removing the upper cover – Acer 1820PT User Manual
Page 67
Chapter 3
57

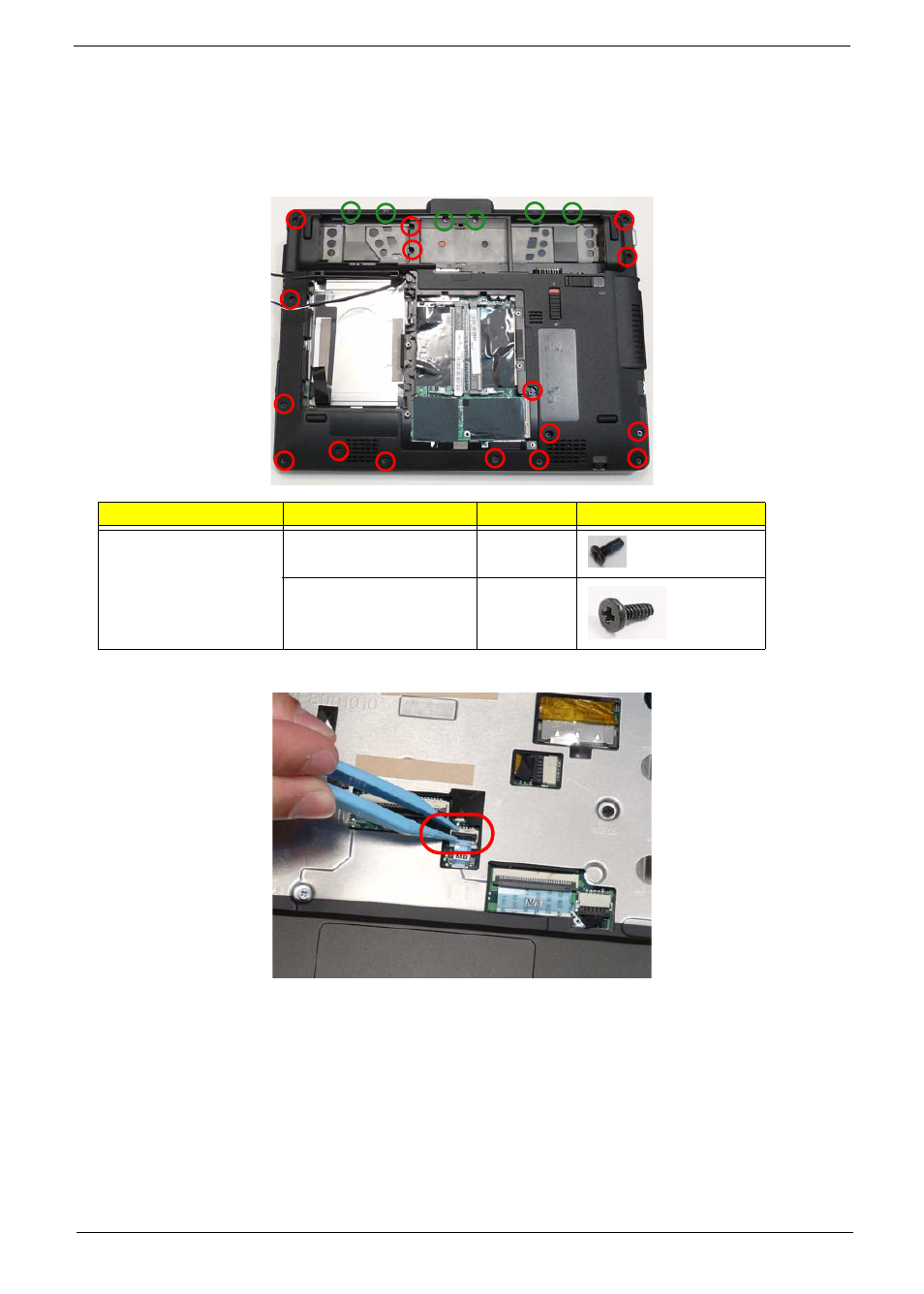

Removing the Upper Cover
1.
See “Removing the Keyboard” on page 53.
2.
See “Removing the Hinge Covers” on page 55.
3.
Remove the twenty-two (22) screws in the lower cover.
4.
Flip the computer over and unlock the button board cable.
Step
Screw
Quantity
Screw Type.
Lower Cover
M2*5 (Red Call Out)
16
M2*4 (Green Call Out)
6
