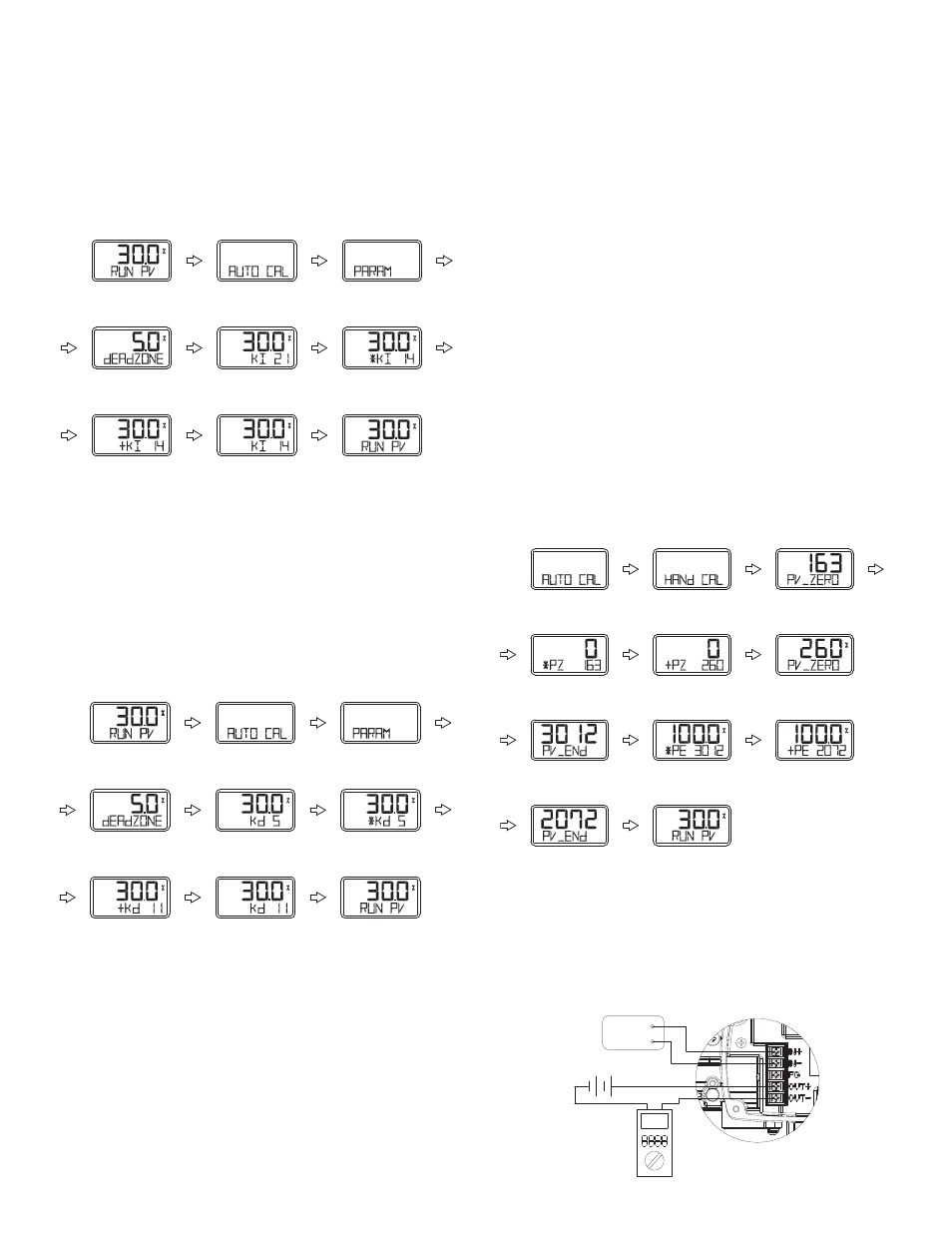

KI
1-3. Adjustment method and procedure same as dEAdZONE.
4. Push twice at dEAdZONE mode and KI mode is displayed.
5. Push at KI mode and *KI message appears on LCD.
6. Adjust KI value with or . Adjusted value is applied

immediately without additional operation. Users can easily check its
adjustment by changing the current input signal to the positioner.
Optimum control value is found by adjusting values during valve
operation. Push to save the value and +KI message
appears on LCD.

7. Push .

8. Push twice to return to RUN mode.

Kd
1-3. Adjustment method and procedure same as dEAdZONE.
4. Push three times at dEAdZONE mode and Kd mode is

displayed.

5. Push at Kd mode and *Kd message appears on LCD.
6. Adjust Kd value with or . Adjusted value is applied

immediately without additional operation. Users can easily check its
adjustment by changing the current input signal to the positioner.
Optimum control value is found by adjusting values during valve
operation. Push to save the value and +Kd message
appears on LCD.

7. Push .

8. Push twice to return to RUN mode.

HAND CAL
When auto calibration is started, Series 275 positioner set zero points
and end points based on full stroke.

Hand Calibration Types
PV_ZERO: Edit mode to change the zero point of valve.
PV_END : Edit mode to change the end point of valve.
TR_ZERO : Edit mode to change the zero point of transmitter.
TR_END: Edit mode to change the end point of transmitter.

Adjustment of valve zero point (1 to 5) and end point (6 to 10).

1. Push at RUN mode for 6 seconds and then AUTO CAL

mode is displayed. Push three times, the HAND CAL
mode is displayed.

2. Push at HAND CAL mode and PV_ZERO mode is

started.

3. Push at PV_ZERO mode and *PZ mode is started. In this

mode it is available to change valve zero point, and the valve stem
moves automatically to the current zero point. On LCD, valve stroke
is displayed as 0%. +PZ message that indicates edit mode of zero
point and inner value showing current zero point position is also
displayed.

4. Adjust valve stem by pushing or . When valve stem

has arrived at the desirable zero point, save it with . +PZ
message appears on LCD.

5. Push to return to PV_ZERO mode.

(Push twice to return to RUN mode.)

6. In order to change valve end point, push at PV_ZERO

mode and PV_END mode begins.

7. Push at PV_END mode and *PE mode is displayed. At

this mode it is available to change valve end point, and the valve
stem moves automatically to current end point. On LCD, the valve
stroke is displayed as 100%. *PE message indicating edit mode of
end point and inner value of end point is also displayed.

8. Adjust valve stem with using or . When valve stem

arrives at the desirable end point, save it with . +PE
message appears on LCD.

9. Push to return to PV_END mode.
10. Push twice and RUN mode is displayed.

(Push at PV_END mode to go to TR_ZERO mode).

Adjustment of zero point (1 to 4), end point (5 to 9) of transmitter.

If valve zero point and end point are changed, transmitter is also
changed automatically. Usually there is no need for the transmitter zero
point and end point to be adjusted by users, but if transmitter output
signal is unstable, transmitter zero point and end point should be
adjusted. The ammeter showing feedback signal is necessary and the
connection should be done as shown.

page 7

Feed back signal

(12 ~ 30V)

4 ~ 20 mA

INPUT

(1) Push for 6
seconds.

(2) Push twice.

(3) Push .

(4) Push twice.

(5) Push .

(6) Push

after adjustment with

, .

(7) Push .

(8) Push twice.

RUN MODE.

(1) Push for 6
seconds.

(2) Push twice.

(3) Push .

(4) Push
three times.

(5) Push .

(6) Push

after adjustment with

, .

(7) Push .

(8) Push twice.

RUN MODE.

(1) Push
three times.

(2) Push .

(3) Push .

(4) Push

after adjustment with

, .

(5) Push .

(6) Push .

(7) Push .

(8) Push after

adjustment with ,

.

(9) Push .

(10) Push twice.

RUN MODE.
