• In this example, the Temperature range is set and cannot be changed as it is
green and unselectable, however the units may be adjusted and the user can
decide if the temperature will be displayed in the home screen.
SYS Menu
• Press the to scroll through the top main menus.
• When SYS is highlighted, push the enter key.
• The STATUS will show how many probes are currently paired.
• The WIRELESS feature may be turned on or off and the display CONTRAST
adjusted here as well.
• If desired, a RESTORE DEFAULT feature is available from this screen.
• Note: FILE displays remaining available memory. If INT is selected in the LOG
main menu the maximum memory is 4 MB. A 2 GB memory card is the maximum
memory the UHH can utilize if SD is selected.
• If you select the STATUS sub menu you can view the firmware edition as well as
the UHH device handle.
• Click on the SETTINGS sub menu for language selection as well as the default
engineering units. The DATE and TIME can be entered, as well as power
management inactivity time delays for SLEEP and SHUTDOWN.
• The user can program in their name, an identification code or their company name
into the SETTINGS sub menu under OWNER.
VIEW Menu
• Press the to scroll through the top main menus.
• When VIEW is highlighted, select with the enter key.
• Several viewing modes are available on the home screen from the selections in
this menu.
• The default is METER which displays numerical values.
• The AVERAGE setting calculation is programmed in this menu.
• AVERAGE values may be altered from 1 to 60 seconds.

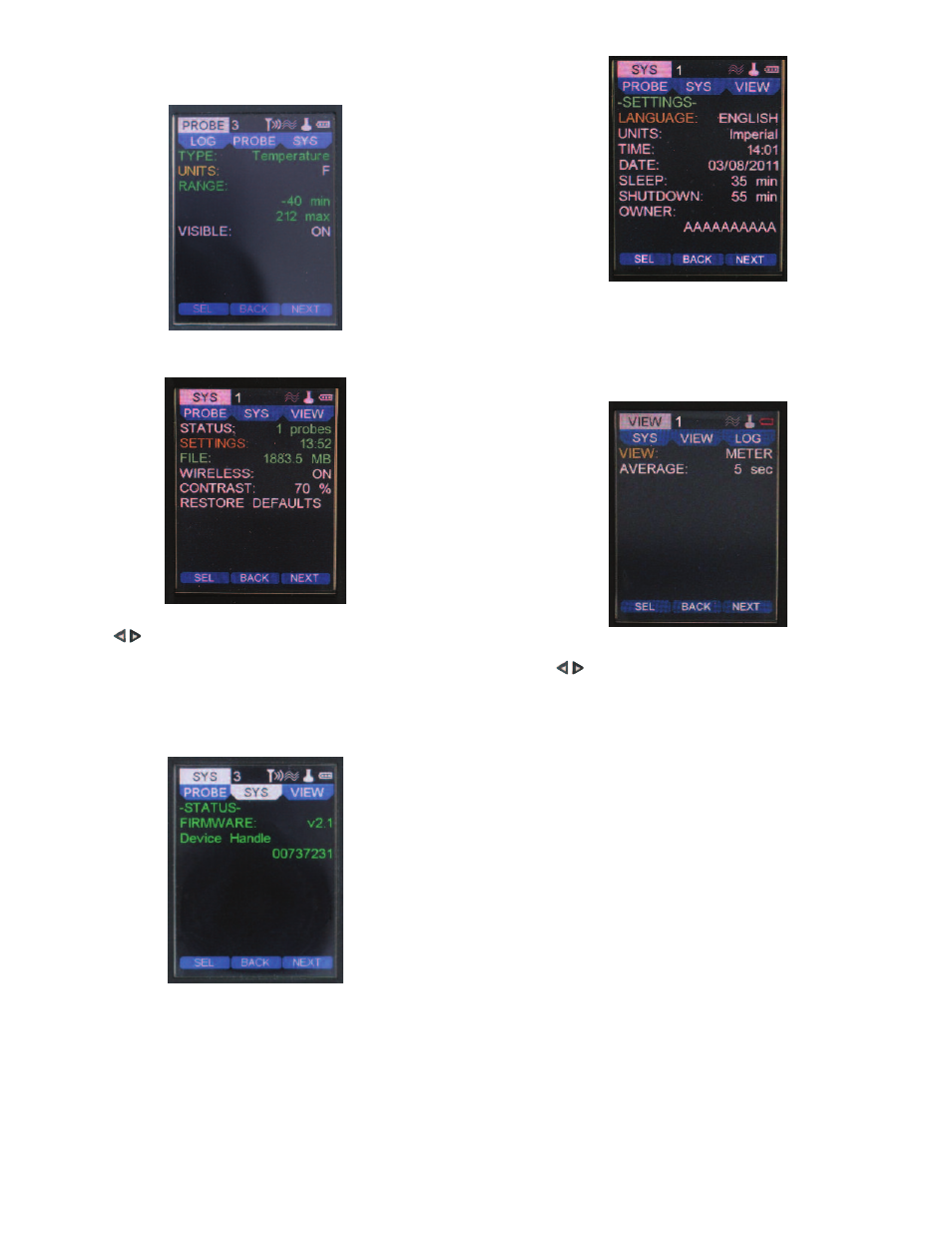

Status Sub Menu
SETTINGS Sub Menu
VIEW METER Mode
TYPE Sub-Menu Temperature
SYS Main Menu
