Data Logger Manual
Page 23
F4 = OK: returns to Main Screen
Note: unit selection can be changed by pressing the corresponding function key
repeatedly or using the UP and DOWN arrows to select appropriate units.
CANCEL = returns to main menu without accepting changes
OK = accepts changes and returns to main menu

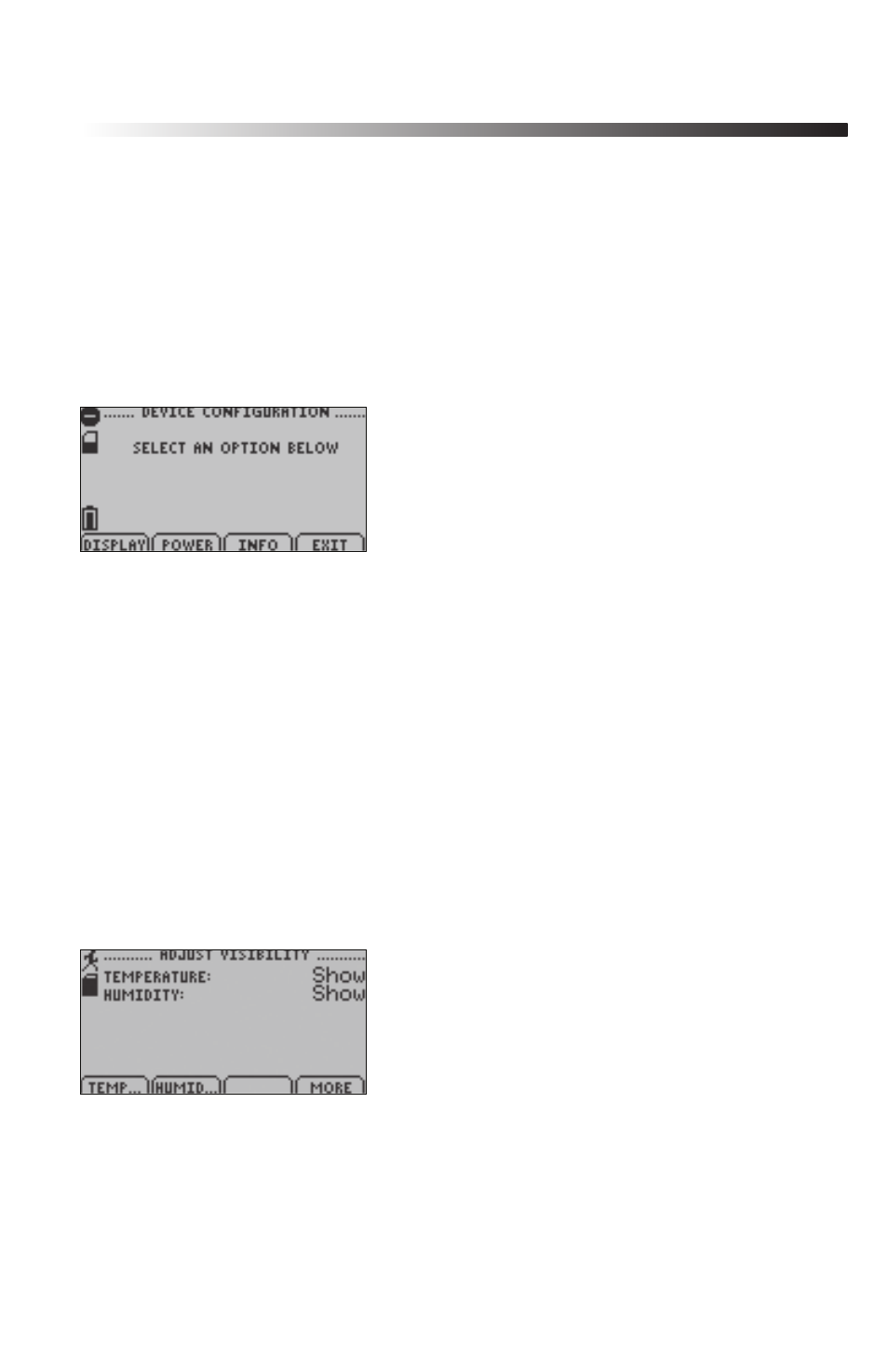

6.11 Device Configuration Menu:
Displays options available within the device configuration menu.
F1 = DISPLAY: enters Adjust Visibility screen
F2 = POWER: enters Power Modes screen
F3 = INFO: goes to Device Information screens
F4 = EXIT: returns to main screen
CANCEL = returns to main screen
OK = returns to main screen
UP = no function
DOWN = no function
6.12 Adjust Visibility:
Displays options for changing the viewing of the two channels on the main screen
(either shows a particular channel or hides it).
F1 = TEMP: first highlights and then changes the viewing options of the
temperature channel
F2 = HUMID: first highlights and then changes the viewing options of the
humidity channel
