SERIES 670
www.dwyer-inst.com
SAFE
ENTER SET
ALARM
AIR VELOCITY MONITOR
3-29/64 [87.88]
2-1/64 [51.05]
13/64 [5.08]
1-1/16
[27.10]
5-45/64
[145.03]
4-61/64
[125.98]
4-9/16
[116.08]
3-17/64 [83.06]
MOUNTING BRACKET
1.67
[42.55]
1.67
[42.55]
4.65
[118]
4.96
[126]
0.16 [4]
0.16 [4]
3.35
[85]

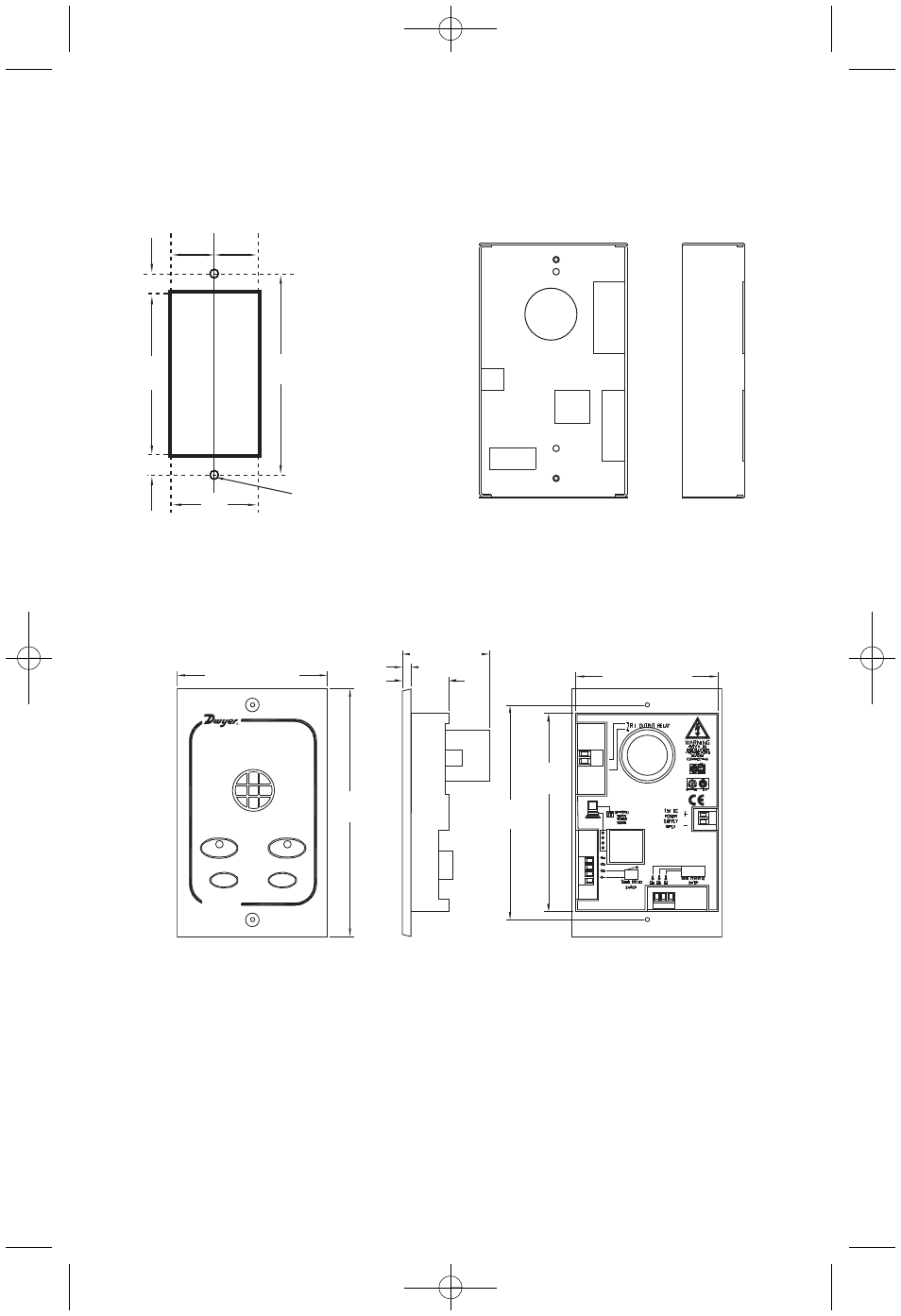

PANEL CUTOUT DIMENSIONS
4.65˝ x 3.35˝ [118 mm x 85 mm]
2 x FIXING HOLES
2.5 mm DIAMETER
FOR 2 x No. 4
SELF TAPPING
SCREWS PROVIDED
