MAINTENANCE
After final installation of the pressure transducer and its companion re-
ceiver, no routine maintenance is required. A periodic check of system
calibration is suggested. The Series IS626 transducers are not field re-
pairable and should be returned if repair is needed (field repair should
not be attempted and may void warranty). Be sure to include a brief de-
scription of the problem plus any relevant application notes. Contact cus-
tomer service to receive a return goods authorization number before
shipping.

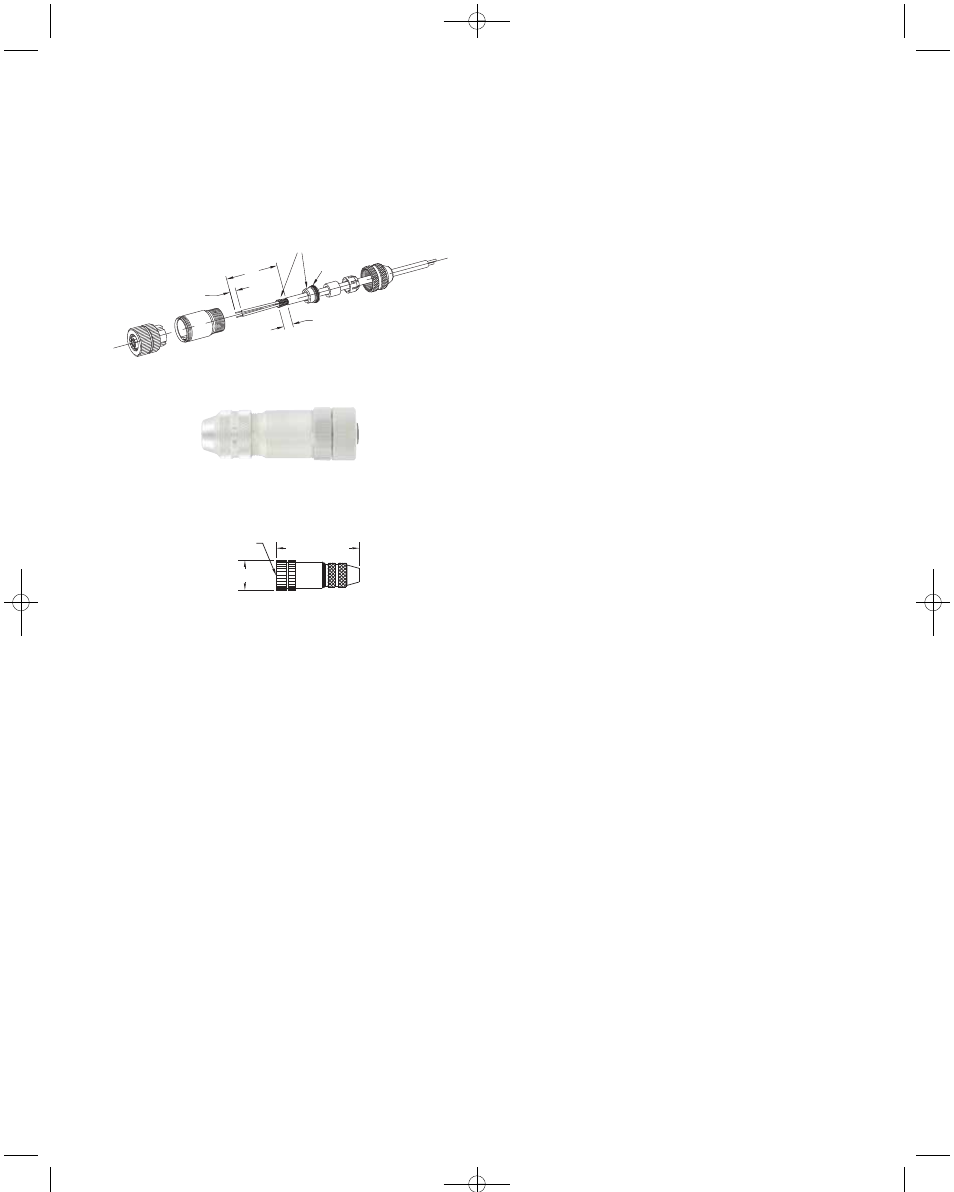

.160
STRIPPING
1.380
WRAP SHIELD WIRE BACK OVER
THIS INSERT DURING ASSEMBLY.
O-RING
.240 SHEATHING
REMOVED
ACCESSORIES
A-295 Female M-12 Connector
A female 4 position M-12 connector for use in connecting to the M-12
male connector on the IS626. Fit 0.16˝ to 0.29˝ diameter cables with a
maximum wire gage at 18 AWG (0.75 mm
2
).
A-231 Shielded Cable
A pre-made 16.4 ft (5 m) cable with a 4 pin Female M-12 connector is
available for use when connecting to the male M-12 connector on the
IS626. Black wire is negative and the brown wire is positive.
FEMALE M-12 CONNECTOR
2-13/64 [55.96]
M12 X 1
FEMALE
ø51/64 [20.24]
ACCESSORY A-295
