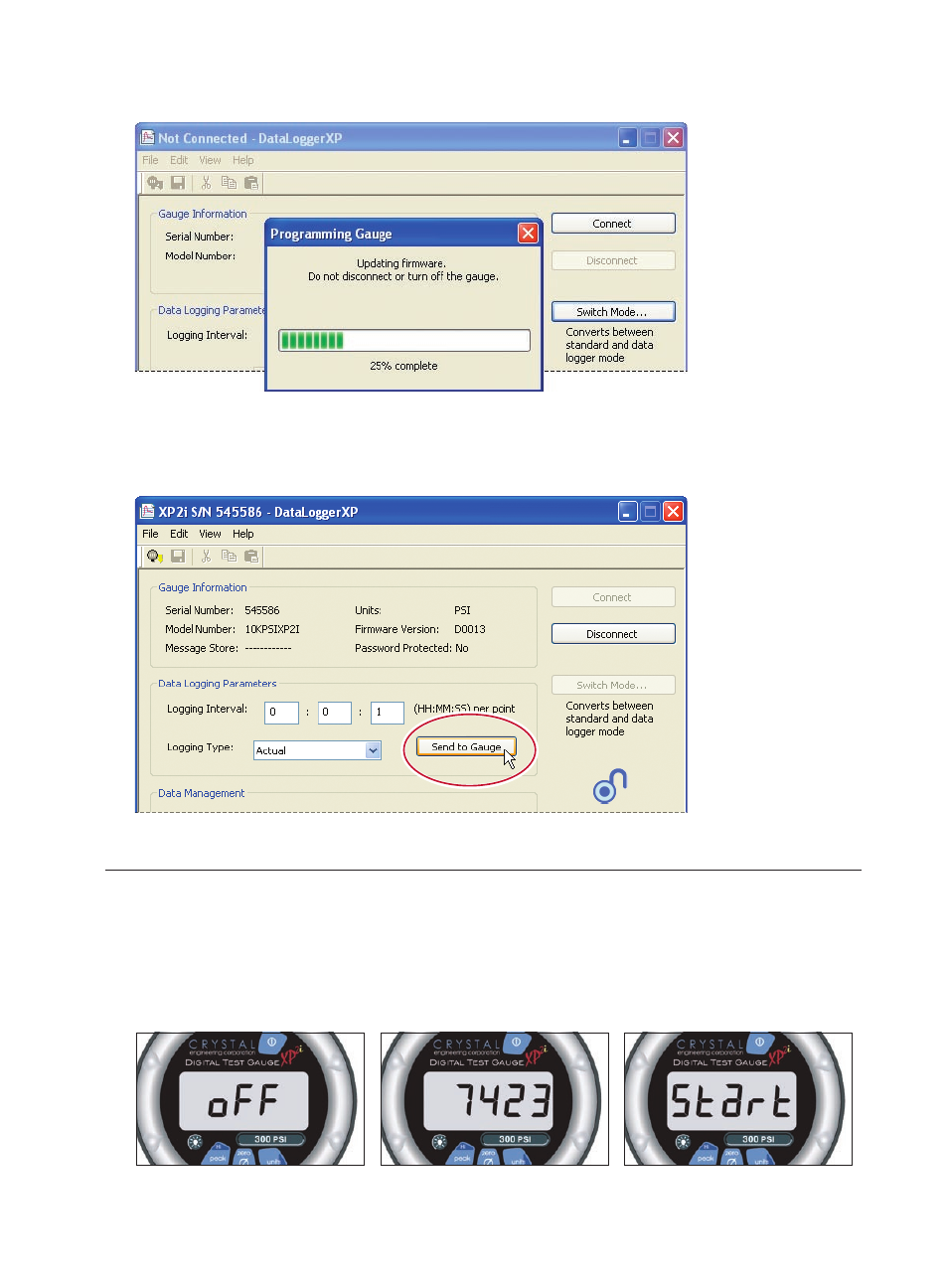

Don’t disconnect or turn off the gauge while it’s being updated.
6 After the gauge has been updated, press the Connect button again. Then set the logging
parameters: The Logging Type, and the Logging Interval (if it applies). Click Send to Gauge to
update the gauge parameters.
7 When finished, click Disconnect.
Recording.Pressure
1 Connect the gauge to the pressure line to be monitored and turn it on.
2 Press and hold the UNITS button on the gauge until it says “Start”—data is now being logged.
3 Once the test is complete, press and hold the UNITS button again until it says “Stop”.
The gauge displays the current state, then the number of bytes available, and then the new state.
