Page 9

Confi g Function Tab



CrystalControl Operation Manual

Modules: Current, Voltage, & Switch Test (MA20)

Note:

The MA20 module requires CrystalControl 1.2 or greater, and Chassis fi rmware R080005 or greater to operate properly. The MA20 Module Instructions

(P/N 4339) provide further details if required.

The following features are unique to the Current, Voltage, & Switch Test Modules (MA20):

•

mA:

In addition to the Userspan, this module allows for an off set value to be entered

•

VDC:

In addition to the Userspan, this module allows for an off set value to be entered.

CAUTION: Changing the Userspan or off set value changes the calibration of the module. Changes in userspan or off set values should only be made by

qualifi ed personnel and equipment.

•

Setup Wizard:

Select this button to Setup the Switch Test mode. The wizard will test the open and closed switch states to ensure accurate readings in the

fi eld.

Note:

You may use the included nVision Test Leads during the setup process.

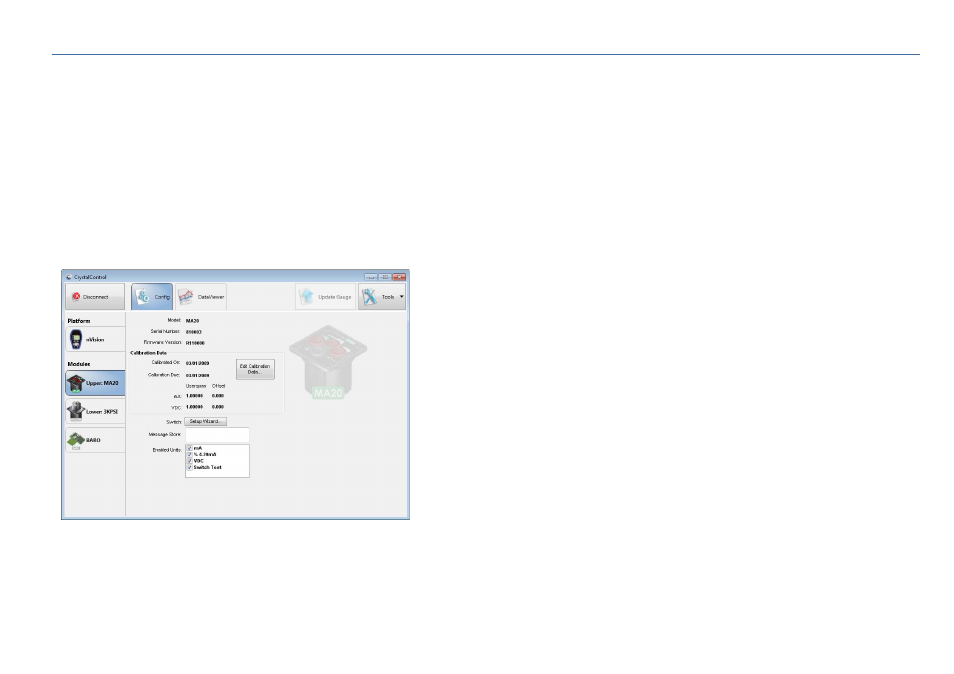

Typical view of MA20 Module features in CrystalControl.
