INSTALLATION
Panel Installation
Place the unit in the panel through a 33 mm x 68 mm cutout . Slide the included gasket over the rear of the unit, then slide
the panel mount bracket into place so that the 4 tabs catch in the grooves on the top and the bottom of the unit (the bracket
should be oriented so that the tabs are on the side nearest the panel) . Use the provided panel mount screws to tighten the
bracket until there is a secure seal against the gasket . Do not over tighten .
72 mm
8
7
6
5
1
2
3
4
68 mm
33 mm
36 mm
Mounting
Bracket
Gasket
Tabs

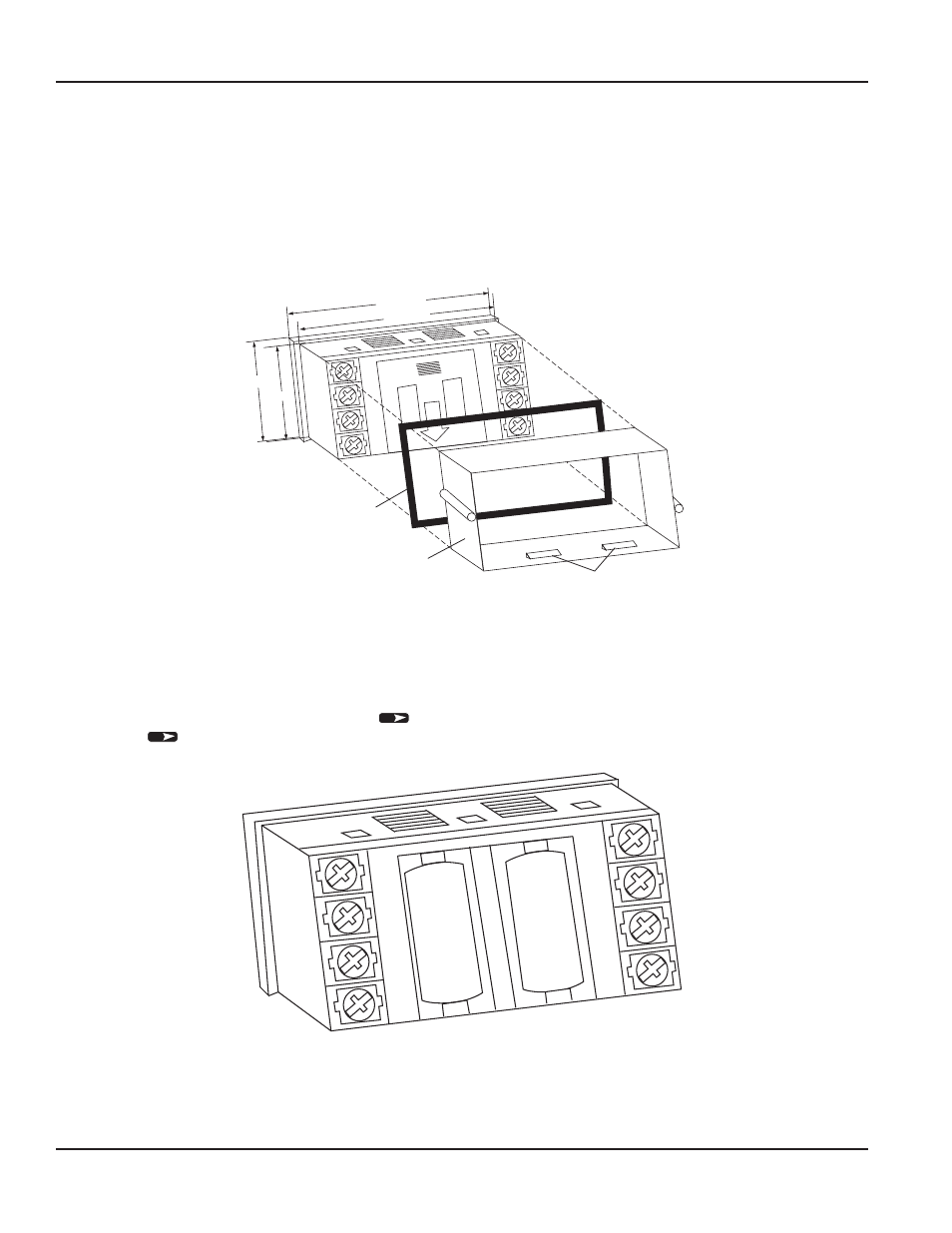

Figure 1: Panel installation
Battery Installation/Replacement
The ER-9 is shipped with two batteries . Remove the battery cover by pushing inward and down . Install the batteries in the two
slots . Once the batteries are in place, the unit goes into a self-test mode, and all the segments on the LCD display illuminate .
To exit the self-test mode, press the Reset/Select R
key . The unit then displays the model number 9 for the ER-9 . Press the
Reset/Select
R
key again to ready the unit for operation .
Battery
Battery
+
+
-
-
Figure 2: Battery installation
