INTRODUCTION
The Preso patented elliptical design outperforms and provides greater
accuracy than traditional differential pressure flow measurement devices .
This differential pressure flow meter is designed with a series of ports facing
the upstream velocity pressures, as well as flow sensing ports strategically
located ahead of the trailing edge flow separation .
The multi-ported, self-averaging flow element consists of an elliptical shape
with two independent flow sensing chambers . The impact velocity sensing
holes (high pressure) are located along the leading edge and the true static
sensing holes (low pressure) are on the exterior probe side . Model AS comes
with instrument shutoff valves with provisions to accept a transmitter or
direct indicating meter .
True static
sensing holes
Impact velocity
sensing holes

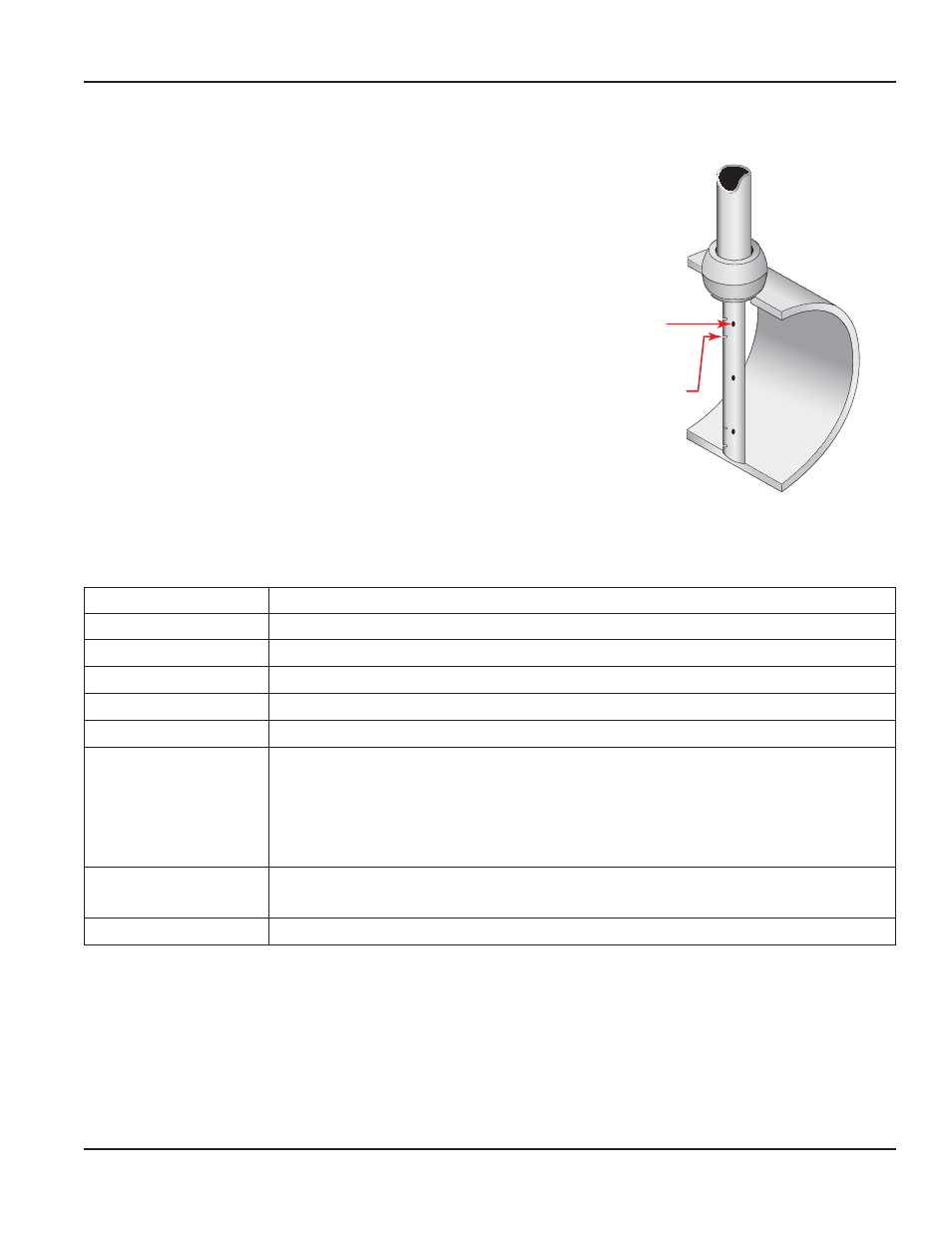

Figure 1: AS pressure sensing holes
SPECIFICATIONS
Applications Steam
Pipe Sizes 2…48 inches (50…1220 mm)
Pressure 600 psi (4100 kPa) maximum
Temperature 480° F (250° C) maximum
Accuracy ±0 .75% of reading
Turndown Ratio 17:1 with no vacuum effect
Standard Components T-type head, 316 SS 1/2" FNPT connection
CS compression fitting with SS ferrule
CS 3000 lb weld fitting, ASTM A105
316/316L SS Ellipse sensor
316 SS ID tag with wire
Reynolds Number Greater than 75,000 maintains most accurate flow measurements
Less than 75,000 consult factory for estimated results
Resonance If greater than 0 .8, use double support .
Table 1: Specifications
