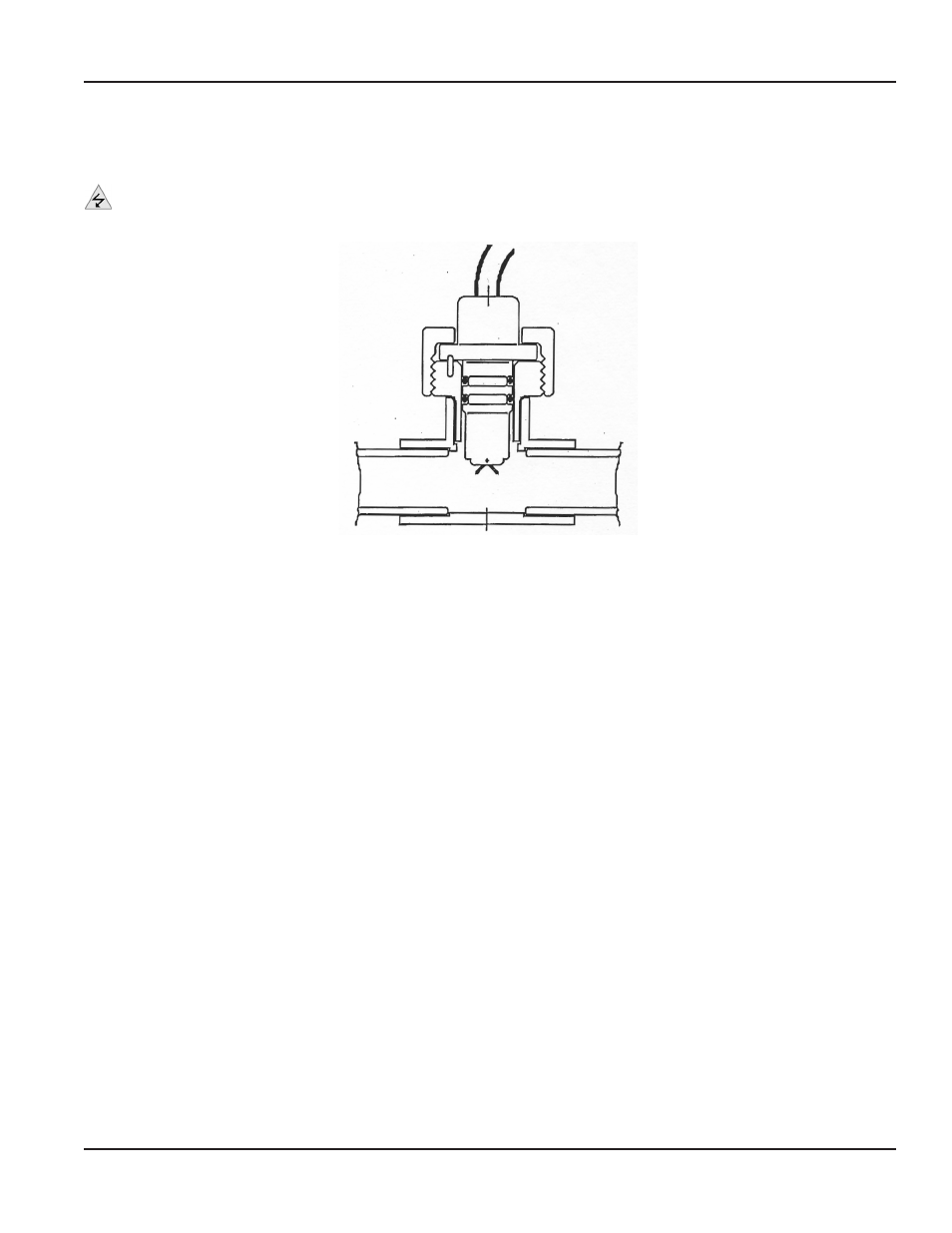

4. Insert the sensor into the tee, carefully lining up the locating hole in the sensor with the locating pin in the tee.
5. Install and HAND TIGHTEN the retaining nut.
Complete the wiring connections. Note that the red wire corresponds to the positive connection and the black wire
corresponds to the negative connection. See "Electrical Installation" on page 5 for details.
Additional Information
• The unit functions best with schedule 40 or a pipe wall thinner than schedule 40.
• Keep all parts as clean as possible. DO NOT let glue or primer contact the surfaces where the o-rings make their seal.
• Although the meter can measure at velocities up to 20 ft/sec, most irrigation companies do not recommend working
velocities above 7.5 ft/sec, and not to exceed 10 ft/sec, due to potential damage from pressure and/or water hammer.
