INSTALLATION INFORMATION
Depressurize and vent piping system prior to any installation or maintenance of the flow sensor.
Disconnect power from flow sensor source and/or receiving device prior to any installation or maintenance
of the system.

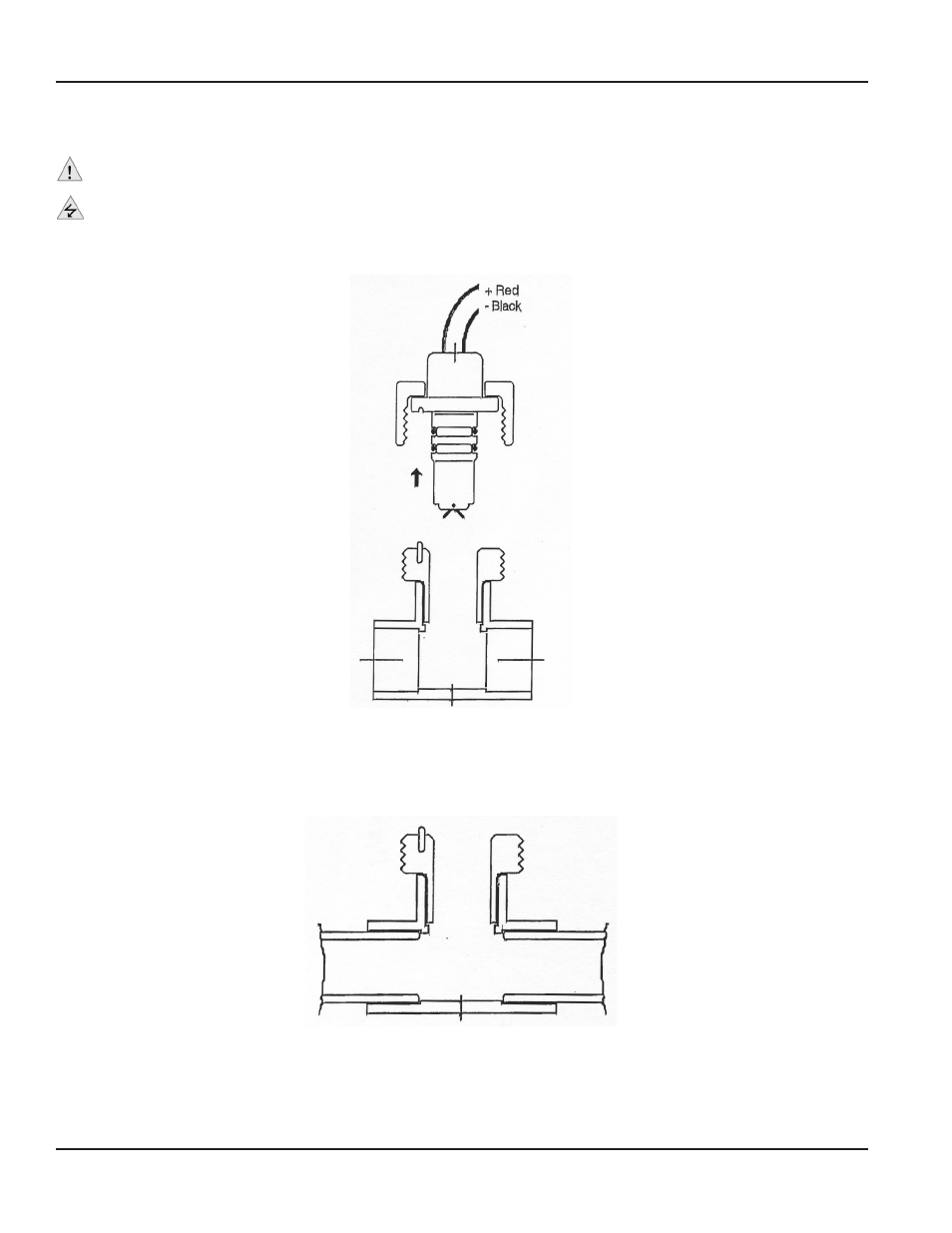

1. Remove the sensor assembly and the nut from the tee.
2. Deburr pipe ends and remove dirt and loose debris from pipe and tee sockets.
3. Glue the line pipe into the tee, using an appropriate primer and cement, according to the manufacturer's instructions.
DO NOT use or leave excess glue. Glue build-up in the tee can affect the measurement performance of the unit and/or
prevent the impeller from turning. DO NOT let glue or primer contact the bore where the o-rings seal.
