COMMISSIONING
All setup and commissioning of the Series 380 is done using a USB to Mini USB cable and the Badger Meter Series 380
commissioning software.
Figure 2 shows the main setup screen. Flow and Energy rates and totals can be selected or a custom unit can be put in with
the correct conversion factor.
For the temperature sensors the user can select the units along with the calculation mode, i.e., T1>T2, Absolute, or T1
The Diff Zero parameter is the difference between T1 and T2 that will still read 0 energy rate.
If the Scaled Pulse Output is going to be used, the user can select what the pulse is representing (Energy or Flow), along with
Units/Pulse and the pulse width. If the Scaled Pulse Output is not going to be used, this output can be set to OFF.
Figure 3 shows the communication parameters tab. The user can select BACnet or Modbus along with the network address.
If using BACnet, the the Device Name, Device ID BACnet BitRate and the Max Master number should be entered for the
appropriate network for which the 380 is being connected.

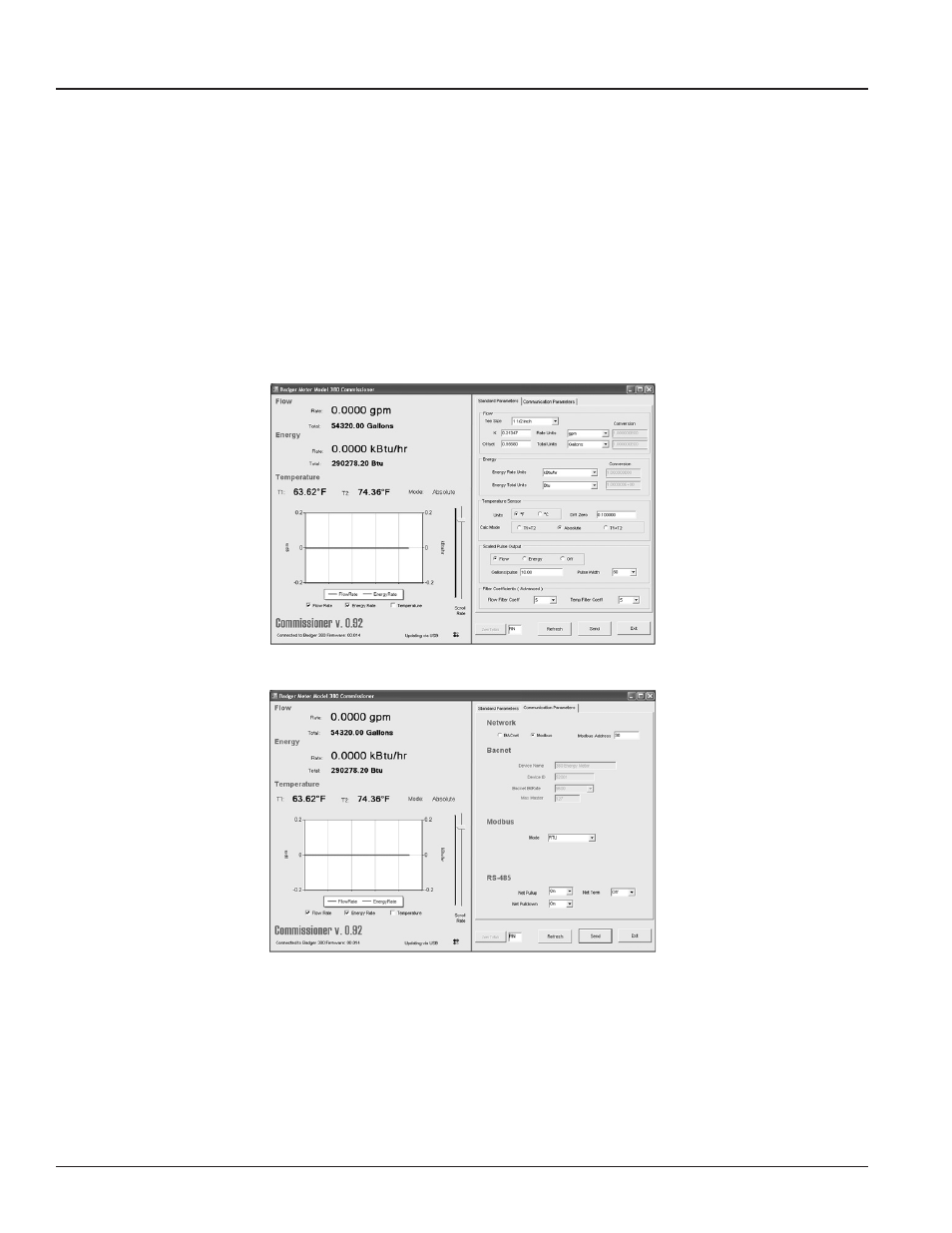

Figure 2: Main Setup Screen
Figure 3: Communication Parameters
