Sensor body sizes, Accuracy, Output pulse width – Badger Meter 380 Series Btu System User Manual
Page 12
Page 12
7-11
Series 380 Impeller Btu System

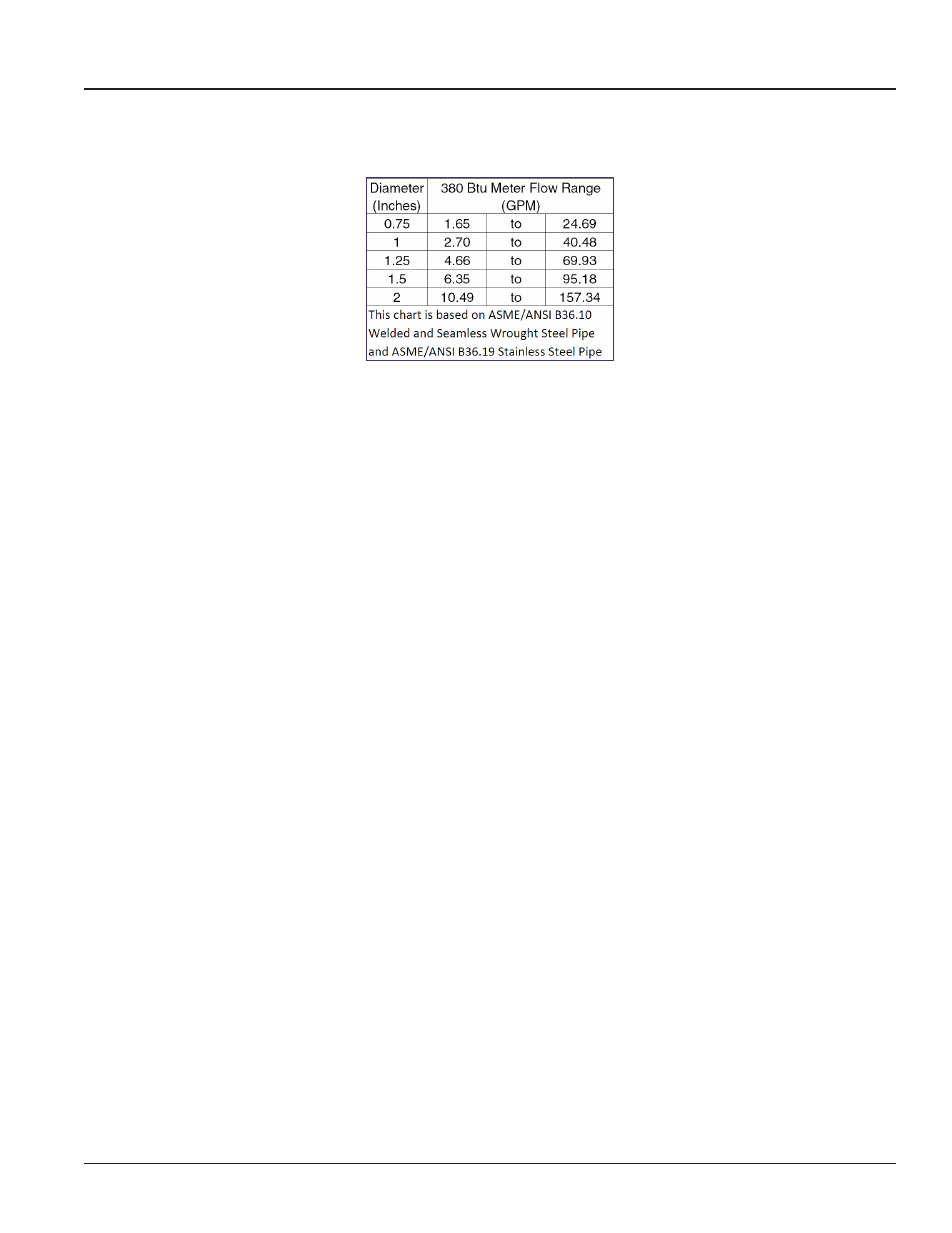

Sensor Body Sizes
Tee Sizes:
0.75", 1", 1.25", 1.5", and 2" NPT
Recommended Design Flow Range:
1 to 15 FPS
Accuracy
Flow Calculation: ±2% of flow rate within flow range
±0.5% Repeatability
RTD Meets IEC751 Class B
Output Pulse Width
10, 50, 150, 200, 250, 500mS
