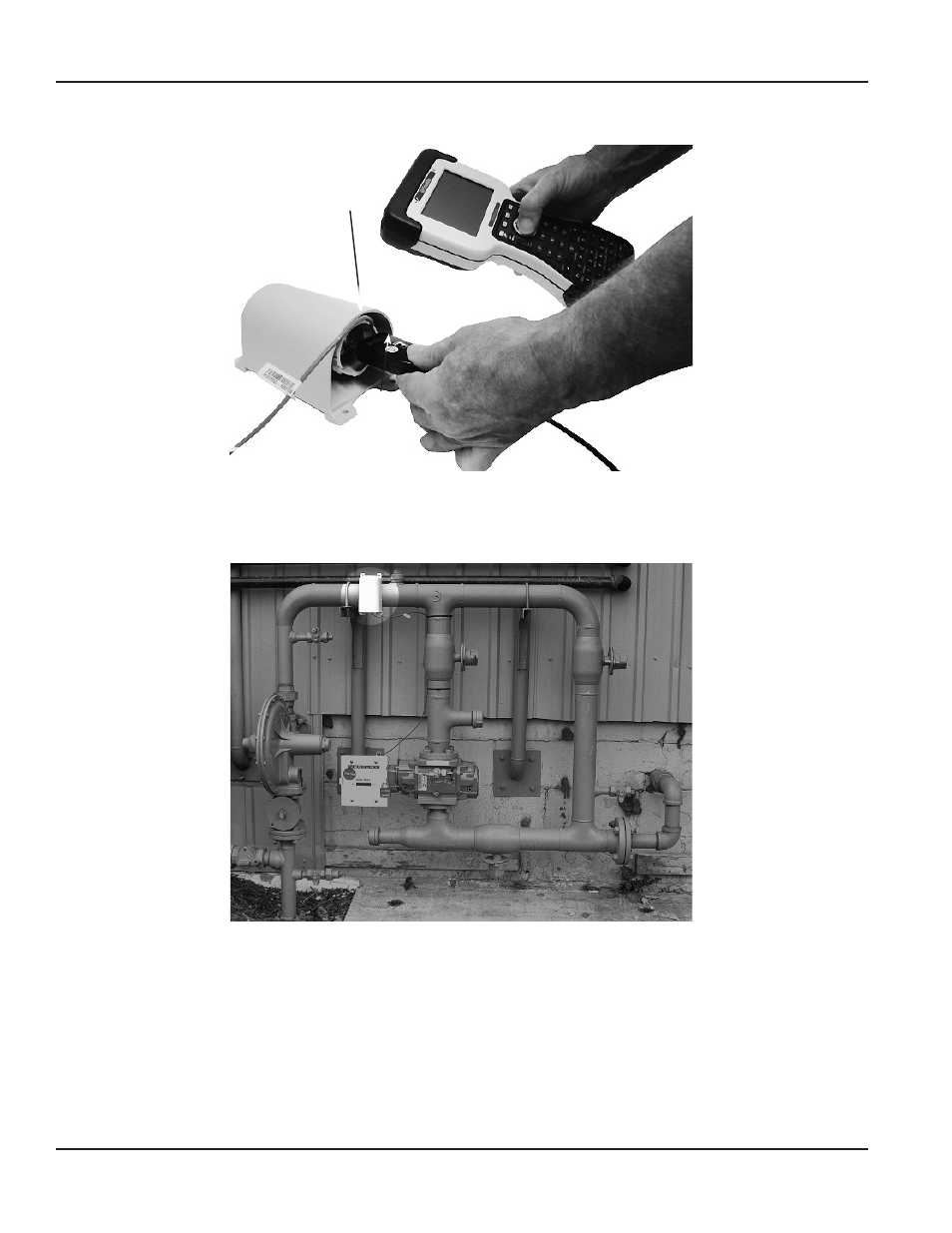

To program the ORION remote endpoint, place the IR cable so the optic read head aligns with the LED output port
INSTALLATION COMPLETE
Installation of the ORION remote endpoint is now complete
LED Output
Port
Optic Read
Head
ORION® Gas Endpoints, Remote Endpoint for Gas Meters and Volume Correctors with Pulsed Outputs
