PROCEDURES FOR MOUNTING THE ORION REMOTE ENDPOINT
The ORION remote endpoint can be installed in any indoor or outdoor, non-submersible location
Placement
For maximum efficiency the ORION remote endpoint should be placed between 36 and 72 inches off of the ground
Orientation
The ORION remote endpoint should be mounted in a vertical orientation with the open portion of the housing at the bottom
Location
The ORION remote endpoint can be placed near a meter or volume corrector It can be mounted on a pipe using the supplied
stainless clamp or to a flat surface using screws The pipe can be either horizontal or vertical

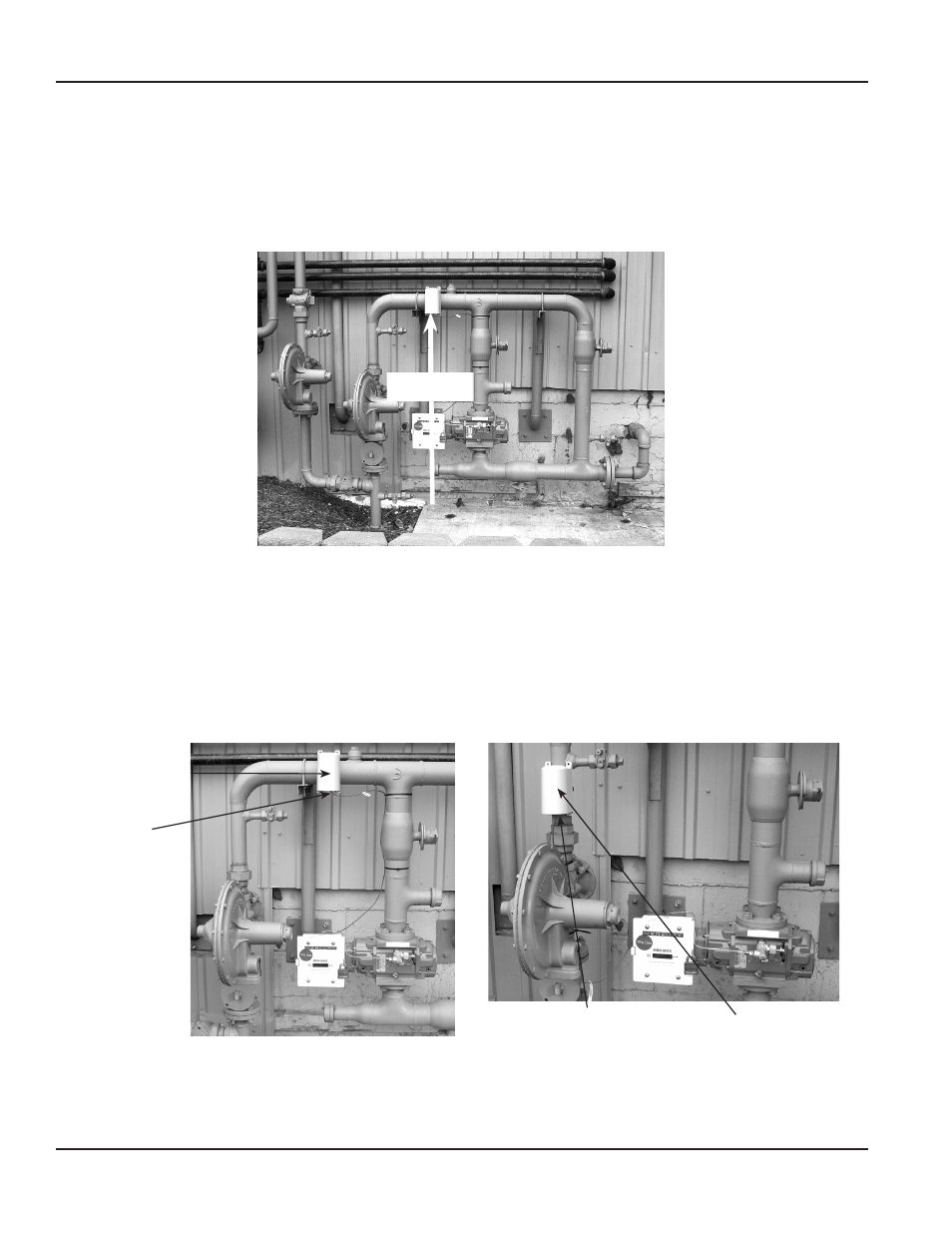

36" - 72"
Endpoint Mounted
to a Horizontal Pipe
Open Portion
of Housing
Open Portion
of Housing Endpoint Mounted
to a Vertical Pipe
