ASSEMBLY

1900 07/11

Assembly Section 3-11

ASSEMBL

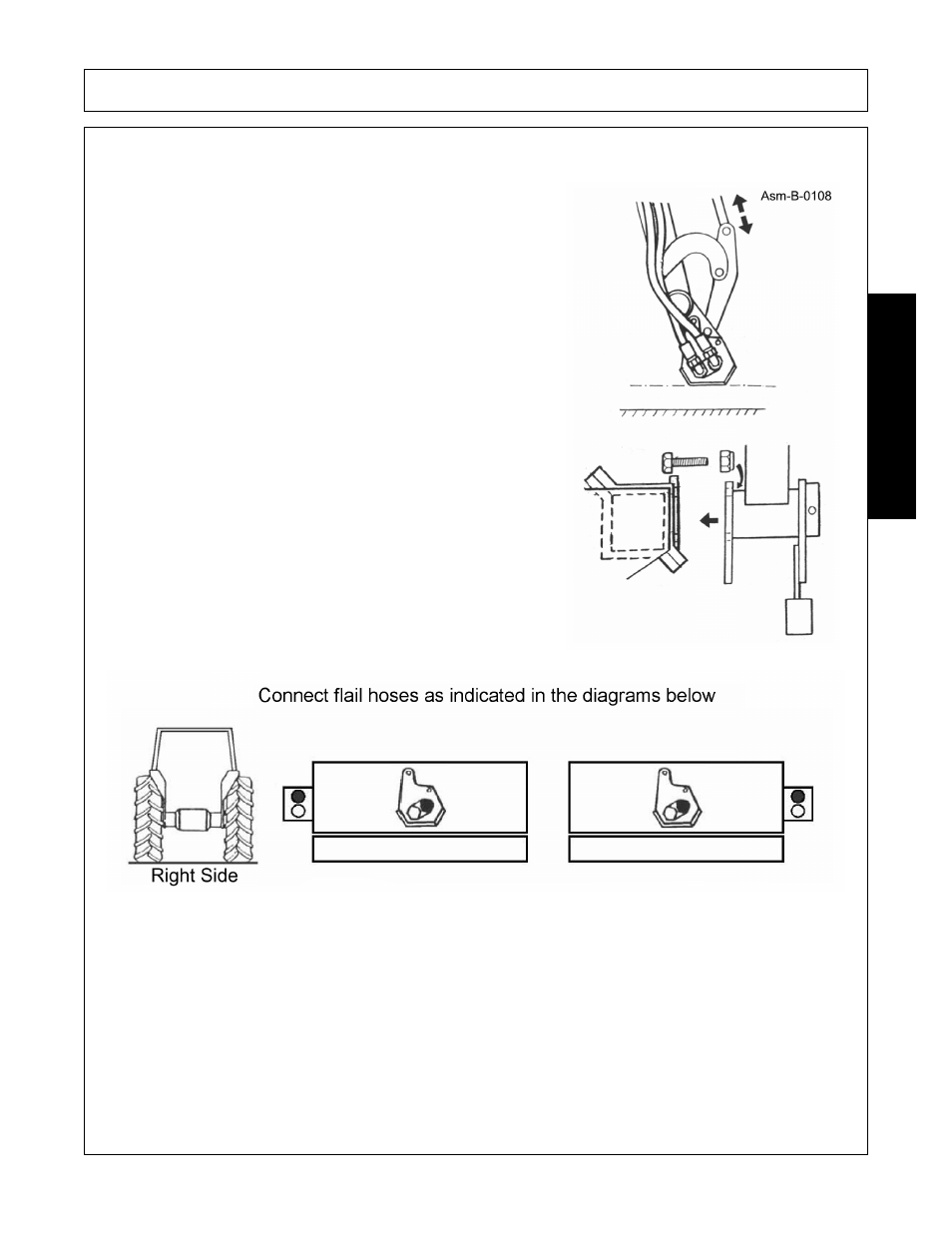

Flailhead Attachment

Operate machine controls to maneuver boom arm into flailhead
attachment. The bottom of the hose connection bracket must be
parallel with the ground. Refer to torque chart for correct bolt
torque settings.

With the arms at half reach and the flailhead clear of the ground carry out final adjustment of the lift arm
leveling box to bring the main frame horizontal. Carefully operate the machine through its full range of
movements while checking that the hoses are not strained, pinched, chaffed or kinked and that all movements
are functioning correctly. Fold the machine into the transport position. The machine is now ready to proceed to
the work site.
