ASSEMBLY

1900 07/11

Assembly Section 3-4

ASSEMBL

DEALER SETUP INSTRUCTIONS

1. The machine will be delivered in a partially

dismantled condition, secured with transport
strap and banding.

2. Choose a firm level site.
3. Remove the transport strap, banding straps

and loose items.

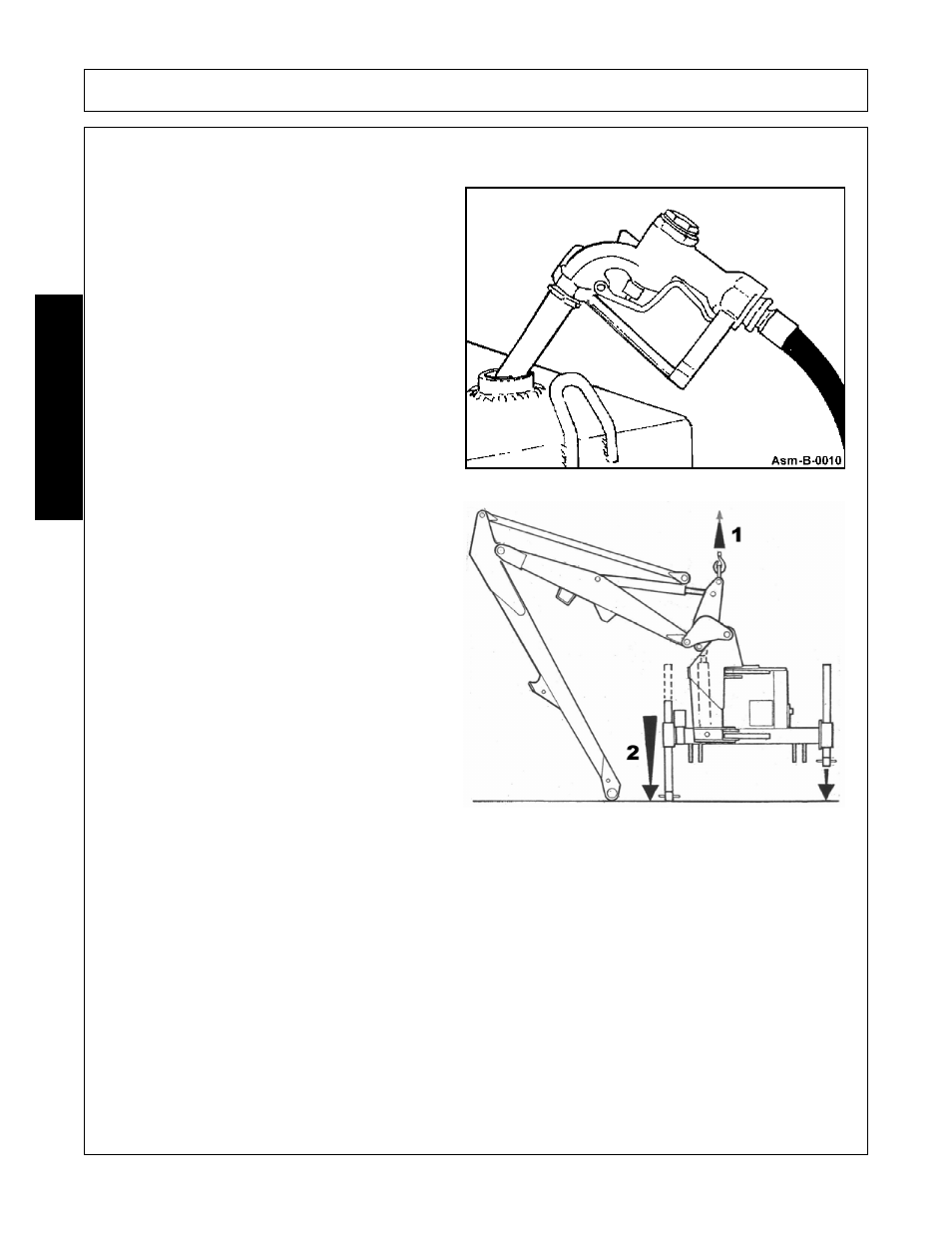

4. Fill tank with oil from the chart or equivalent.

5. Raise the machine using overhead lifting

equipment with a minimum capacity of 1500kg
SWL. LEAVE IN POSITION AT THIS STAGE.

6. Lower the legs and pin in position selecting

the holes that position the machines gearbox
stub shaft approx. 75 mm below the tractors
P.T.O. shaft.

Note: Leg pin position used.
7. Unbolt stabilizer from machine and remove

the stabilizer nose quadrant pin.
