Page 46

46
Calibration 5.4
CAUTION: Do not attempt any calibrations without the proper test equipment that meets or
exceeds the specifications listed.
Press and release the SCROLL key until CAL appears on the display , then press the DOWN
key to enter the mode. The display will change to CAL1. Press the SCROLL key to advance
the display to the other calibration modes available. For two pen units, CAL5 will only need
to be required on TB4 to calibrate Pen 1 and Pen 2 inputs. Both TB 4 and TB 5 inputs must
be calibrated for thermocouple inputs. Table 5-1, page 47, provides a listing of field calibra-
tion routines. All instruments are calibrated prior to shipment from factory.

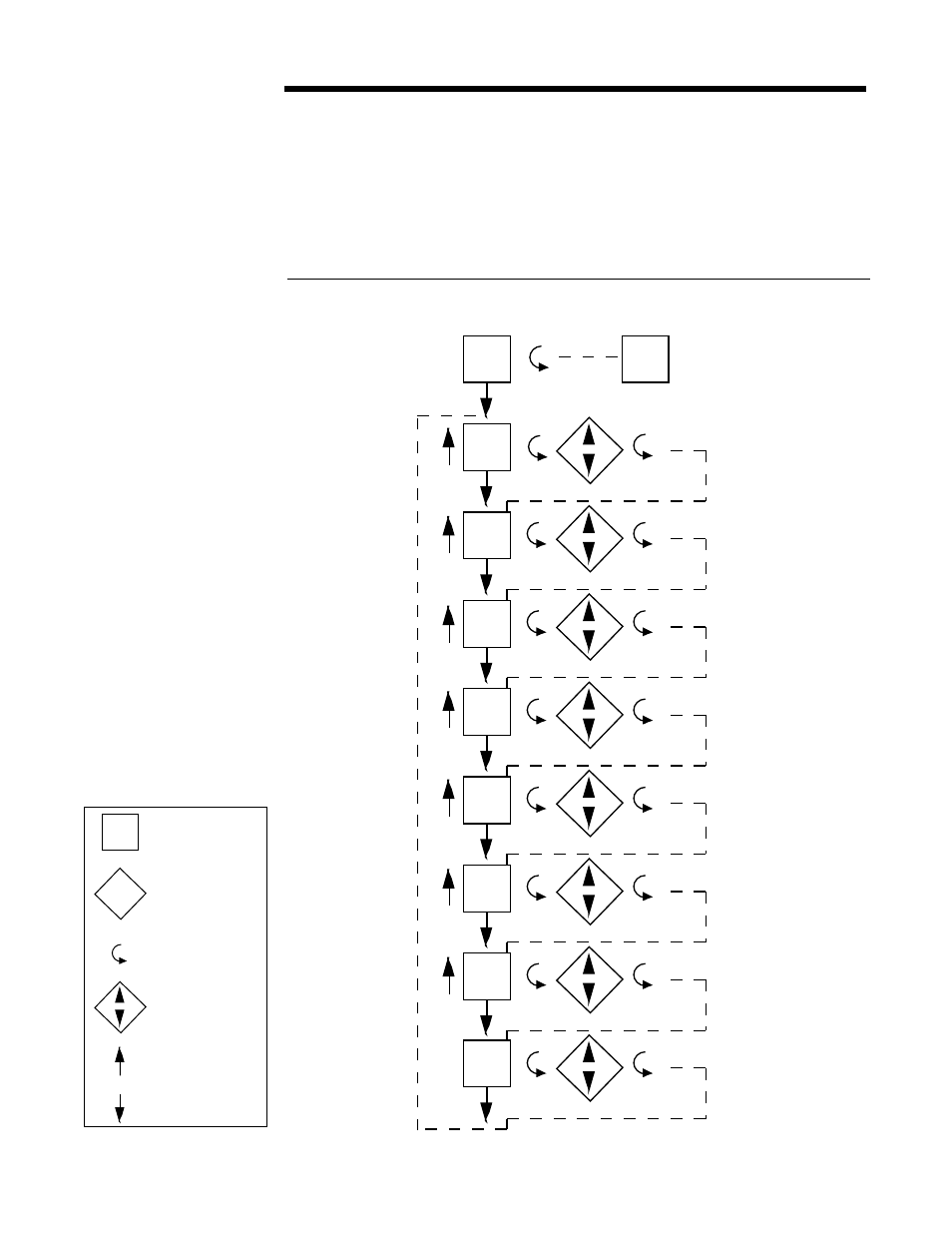

CALIBRATION FLOW CHART
CAL2
CAL3
CAL4
CAL5
CAL6
CAL1
CAL
CAL7
Prog
CAL9
ON
OFF
Actual Display
On/Off Display -
Use arrow keys
to turn on or off
Scroll Key
Numeric Display -
Use arrow keys
to change value
Up Arrow Key
Down Arrow
KEY
