Warren Controls 1800 Series Heavy Globe Control Valves - Manual (Page 5)

5
Series 1800 IOM1800 A 1209
BoDy style versus applIcatIon
1840
Two-Way Single Seat Unbalanced Valve
The most commonly applied solution with ANSI Class IV shut-off.
Sizes:
6, 8, 10, 12 inch (See 5840 for smaller sizes)
Body: ANSI B16.1 Iron 125LB Flange or 250LB Flange (6 thru 10)
WCB Steel or CF8M Stainless Steel 150LB Flange or
300LB Flange (6 thru 12)
Trim: EQ% or Linear, 316 Stainless Steel or Alloy 6
Packing: TFE V-Ring, Spring Loaded (+32 to 450°F)
Adjustable Graphite (+32 to 500°F)
Adjustable Graphite w/Extension Bonnet (+32to 800°F)
Temperature: +32 to 350°F (125 FLG)
+32 to 400°F (250 FLG)
+32 to 800°F (150 or 300 FLG)
Rangeability: 50:1
Flow direction is reversed when used with Cylinder Actuator Fail Closed.
1850
Three-Way Mixing Valve
This valve has two inlets and one outlet, and is the simplest solution
for mixing or bypass applications with ANSI Class IVshut-off. In normal
applications the inlet pressures are near equal and control is possible from
5% to 95% of travel with inlet pressures up to 300 PSI. In the 1/2 through 2
inch sizes, the flow can be reversed for diverting if this port configuration is
desirable.
Sizes:
1/2, 3/4, 1, 1-1/2, 2, 2-1/2, 3, 4, 6, 8, 10, 12 inch
Body: ANSI B16.1 Iron 125LB Flange or 250LB Flange (8 thru 12)
WCB Steel or CF8M Stainless Steel 150LB Flange or
300LB Flange (1/2 thru 12)
Trim: Linear, 316 Stainless Steel
Packing: TFE V-Ring, Spring Loaded ( +32 to 450°F)
Adjustable Graphite (+32 to 500°F)
Adjustable Graphite w/Extension Bonnet (+32 to 800°F)
Temperature: +32 to 350°F (125 FLG)
+32 to 400°F (250 FLG)
+32 to 800°F (150 or 300 FLG)
Rangeability: 30:1 (sizes 1/2 thru 2)
50:1 (sizes 2-1/2 thru 12)
1852
Three-Way Diverting/Mixing Valve
Designed as a diverting valve with one inlet and two outlets with ANSI
Class II shut-off. However, flow can be reversed for mixing if this port
configuration is desirable. The difference between the upper port and lower
port pressure must not exceed 50PSID.
Sizes:
2-1/2, 3, 4, 6, 8, 10, 12 inch
Body: ANSI B16.1 Iron 125LB Flange or 250LB Flange (8 thru 12)
WCB Steel or CF8M Stainless Steel 150LB Flange or
300LB Flange (2-1/2 thru 12)
Trim: Linear, 316 Stainless Steel or Alloy 6
Packing: TFE V-Ring, Spring Loaded (+32 to 450°F)
Adjustable Graphite (+32 to 500°F)
o-Ring: Fluoraz 797 (2-1/2 thru 4)
EPR (6 thru 12)
Temperature: +32 to 150°F (125 or 250 FLG, 8 thru 12)
+32 to 500°F (150 or 300 FLG, 2-1/2 thru 4)
+32 to 150°F (150 or 300 FLG, 6 thru 12)
Rangeability: 50:1

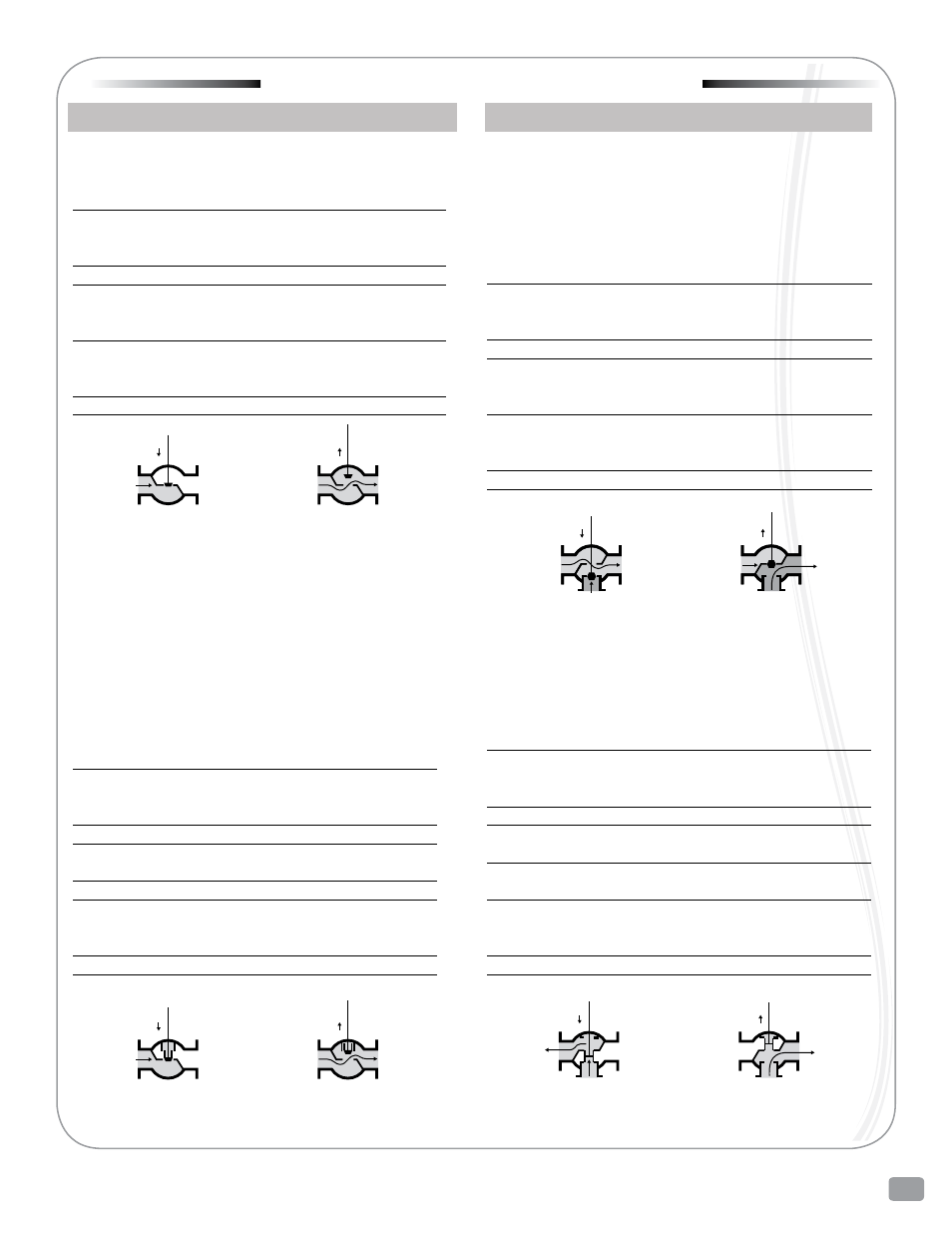

2-Way Valves (Control of Liquids, Gases, and Steam) 3-Way Valves (Control of Liquids)
Stem Down
The upper port opens
and the lower port closes
Upper Port Lower Port
Common Port
Flow Flow
Stem Up
The upper port closes
and the lower port opens
Upper Port Lower Port
Common Port
Flow
Stem Down
The valve closes
Stem Up
The valve opens
Stem Down
The upper port opens
and the lower port closes
Upper Port Common Port
Lower Port
Flow
Flow Flow
Stem Up
The upper port closes
and the lower port opens
Upper Port Common Port
Lower Port
Flow
Flow Flow
Stem Down
The valve closes
Stem Up
The valve opens
Flow Flow
Stem Down
The valve closes
Stem Up
The valve opens
Stem Down
The upper port opens
and the lower port closes
Upper Port Lower Port
Common Port
Flow Flow
Stem Up
The upper port closes
and the lower port opens
Upper Port Lower Port
Common Port
Flow
Stem Down
The valve closes
Stem Up
The valve opens
Stem Down
The upper port opens
and the lower port closes
Upper Port Common Port
Lower Port
Flow
Flow Flow
Stem Up
The upper port closes
and the lower port opens
Upper Port Common Port
Lower Port
Flow
Flow Flow
Stem Down
The valve closes
Stem Up
The valve opens
Flow Flow
Stem Down
The valve closes
Stem Up
The valve opens
Stem Down
The upper port opens
and the lower port closes
Upper Port Lower Port
Common Port
Flow Flow
Stem Up
The upper port closes
and the lower port opens
Upper Port Lower Port
Common Port
Flow
Stem Down
The valve closes
Stem Up
The valve opens
Stem Down
The upper port opens
and the lower port closes
Upper Port Common Port
Lower Port
Flow
Flow Flow
Stem Up
The upper port closes
and the lower port opens
Upper Port Common Port
Lower Port
Flow
Flow Flow
Stem Down
The valve closes
Stem Up
The valve opens
Flow Flow
Stem Down
The valve closes
Stem Up
The valve opens
Stem Down
The upper port opens
and the lower port closes
Upper Port Lower Port
Common Port
Flow Flow
Stem Up
The upper port closes
and the lower port opens
Upper Port Lower Port
Common Port
Flow
Stem Down
The valve closes
Stem Up
The valve opens
Stem Down
The upper port opens
and the lower port closes
Upper Port Common Port
Lower Port
Flow
Flow Flow
Stem Up
The upper port closes
and the lower port opens
Upper Port Common Port
Lower Port
Flow
Flow Flow
Stem Down
The valve closes
Stem Up
The valve opens
Flow Flow
Stem Down
The valve closes
Stem Up
The valve opens
1843
Two-Way Single Seat Cylinder Balanced
Valve
A balanced valve that is an effective solution for higher pressures.
It requires less force to operate than unbalanced valves so smaller
actuators can be used. Its single seat o-ring seal design facilitates
ANSI Class IV shut-off. It is limited to cleaner fluids.
Sizes:
6, 8, 10, 12 inch (See 5843 for smaller sizes)
Body: ANSI B16.1 Iron 125LB Flange or 250LB Flange
WCB Steel or CF8M Stainless Steel 150LB Flange or
300LB Flange
Trim: EQ% or Linear, 316 Stainless Steel or Alloy 6
Packing: TFE V-Ring, Spring Loaded ( +32 to 450°F)
Adjustable Graphite ( +32 to 500°F)
o-Ring: Fluoraz 797
Temperature: +32 to 350°F (125 FLG)
+32 to 400°F (250 FLG)
+32 to 500°F (150 or 300 FLG)
Rangeability: 50:1
Flow direction is reversed when used with Cylinder Actuator Fail Closed.
