- 6 -
3.4 Panel-mounting the controller
The supplied mounting hardware allows surface mounting to all
panels and protective enclosures. Mounting cut-out size is 91 x 45
mm.
To attach the mounting to the controller:
1. Align the catch to the side of the controller, and insert threaded
rods through catch.

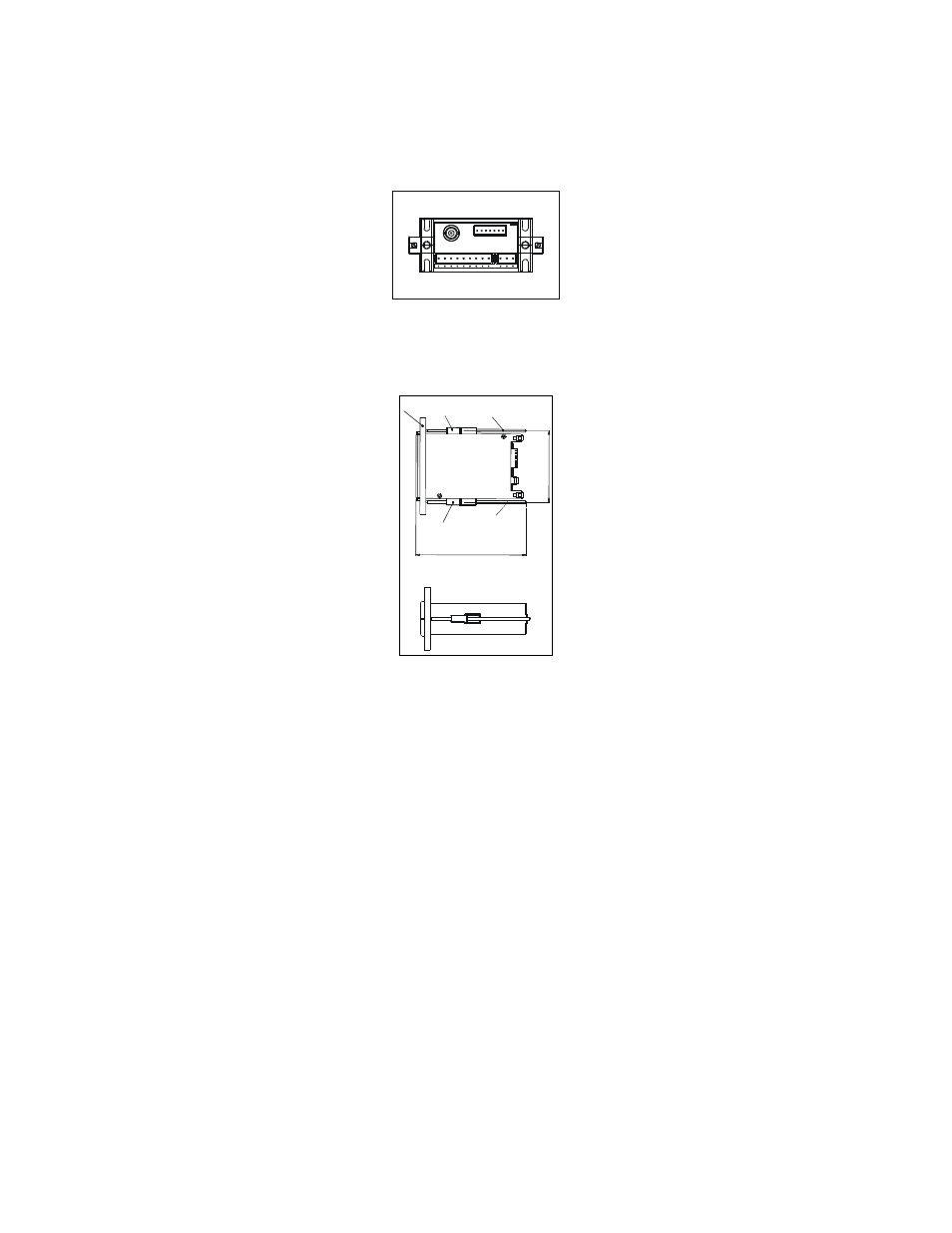

BACK VIEW
2. Screw the threaded-rod through the catch in a clock-wise
direction. Tighten until the catch holds the controller firmly
against the back of the panel or protective housing. Repeat on
the other side.
SIDE VIEW
TOP VIEW
app rox .1 54 .20
a p p ro
x.
1 0 0
W
a ll p a
C
a tc
h
T h re
a d e d
C
at
ch
T h re
a d ed
r od
