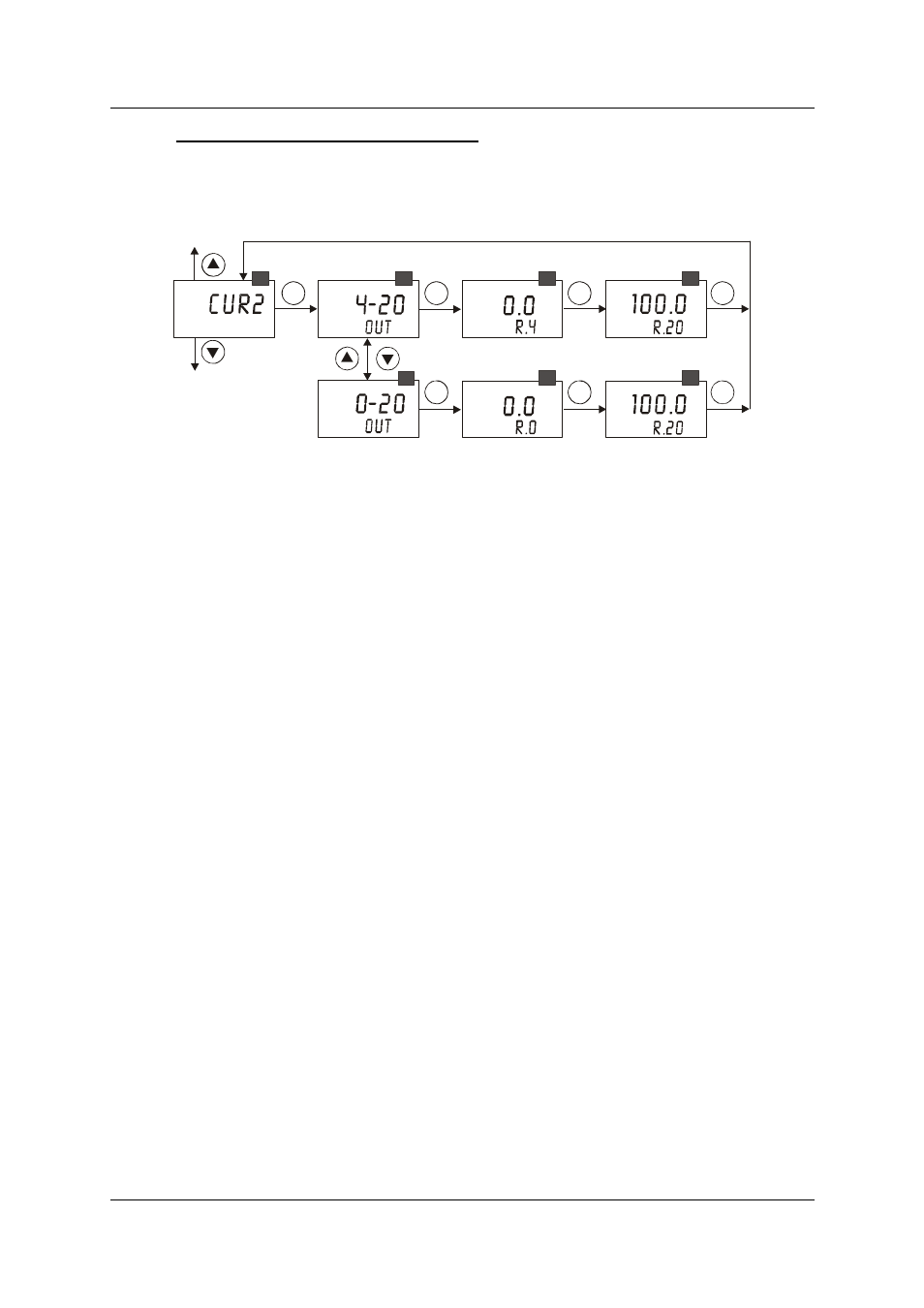

6.7 Current Output 2 (CUR 2) sub-function
In this sub-function you set the current output range of the transmitter for temperature values.
SETUP
HOLD
4
SETUP
HOLD
4
SETUP
HOLD
4
SETUP SETUP
HOLD HOLD
°C °C
°C °C
4 4
SETUP SETUP
HOLD HOLD
4 4
ENT ENT ENT
ENT ENT
ENT
ENT
1 2
2
3
3
4
4
1. Select the “CUR 2” sub-function and then press the ENT key.
2. Selecting the output type: press the ▲ or ▼ key to select the desired output type: 0-20 mA or
4-20 mA. Press the ENT key to confirm your selection.
3. Setting the temperature value at which the transmitter output will be 4 mA (or 0 mA): Press
the ▲ or ▼ key to set the temperature value (setting range: -10.0 to 115.0 °C or 14 to 237 °F) to
be equivalent to 4 mA (or 0 mA). Press the ENT key to confirm your setting.
4. Setting the temperature value at which the transmitter output will be 20 mA: Press the ▲ or
▼ key to set the temperature value (setting range: 0.0 to 125.0 °C or 32 to 257 °F) to be
equivalent to 20 mA. Press the ENT key to confirm your setting.
Continue with rest of the Setup procedures by pressing ▲ or ▼ key or return to the
Measurement mode by pressing the ▲ and ▼ key (escape) simultaneously.
