20
FHB4DSTK: Stacking and wall mounting kit for two units
Description
Part code Quantity
Wall Bracket 6105214 1
M4 x 8 Pozi Pan Screw 6008652 9
M4 Crinkle Washers 6008639 9
Thumbscrew 6009552 1
Wall Plate 6105213 1
Stacking Plate 6105212 1
FHB4DKIT: Stacking and wall mounting kit for three units
Description
Part code Quantity
Wall Bracket 6105214 1
M4 x 8 Pozi Pan Screw 6008652 15
M4 Crinkle Washers 6008639 15
Thumbscrew 6009552 1
Wall Plate 6105213 1
Stacking Plate 6105212 2
Fixing Procedure for two Hybrigenes
1. Ensure the units are turned off and remove the power to them.
2. Place one unit on the top of the other.
3. The stacking plate has three holes and three slots. It has three slots to allow for the adjustment of
the feet for levelling the units.
4. Use three of the screws to attach the plate to the bottom of the top unit.
5. Use another three screws to attach the plate to the bottom hybridiser.
6. Ensure that the units are level and the screws are tight.

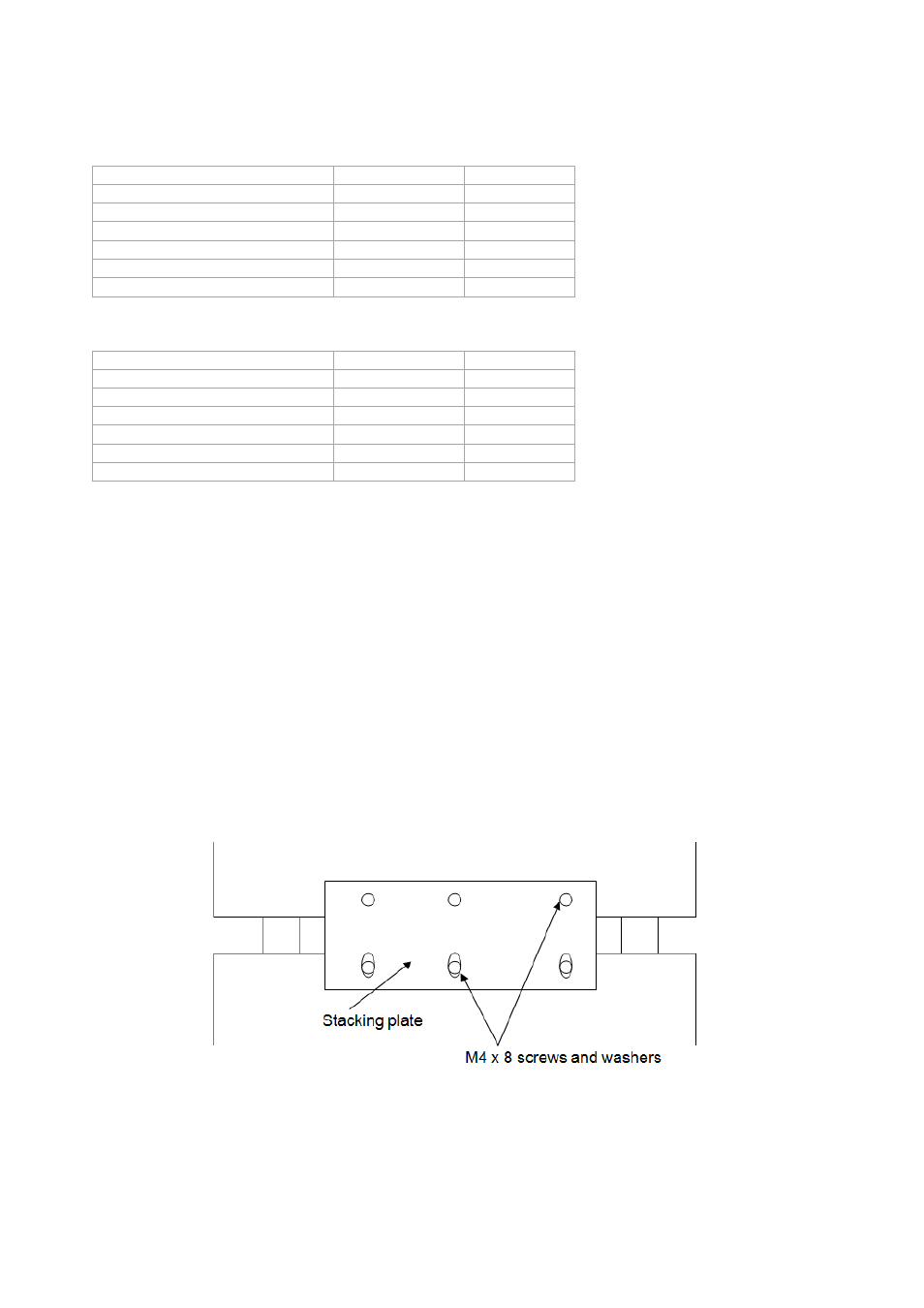

Fixing the stacking plate
7. For safety it is recommended that the top unit is fixed to a wall to prevent toppling. Use the final
three screws to attach the wall bracket to the top of the top unit. Ensure that the screws are tight.
