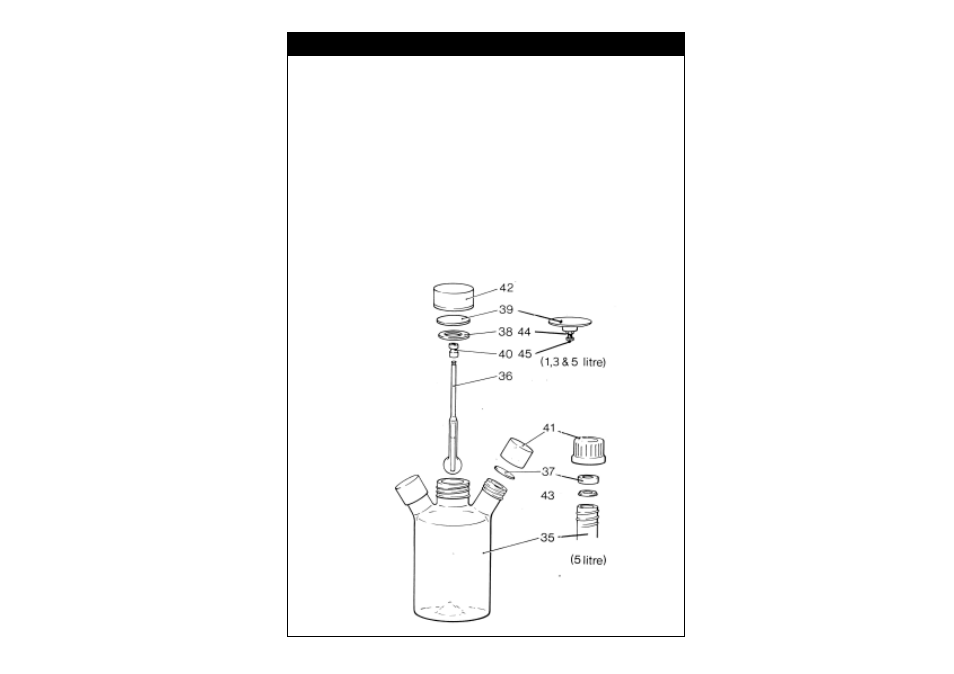

Assembling the Culture Vessel
• Push the grooved end of the stirrer rod into the flexible
suspension joint (item 40).
• Fit the washer (item 38) over the rod and push the suspension
joint onto the flask cap adaptor (item 39).
• Complete the vessel assembly as shown.
• In culture vessels of more than 500 ml the length of the stirrer rod
may need to be adjusted to ensure that the stirrer bulb clears the
bottom of the trough.
• This is done using the screw and lock-nut in the flask cap
adaptor. Note: This screw and nut are of special material to
maintain hygienic conditions.
• See the following pages for lists of parts.
