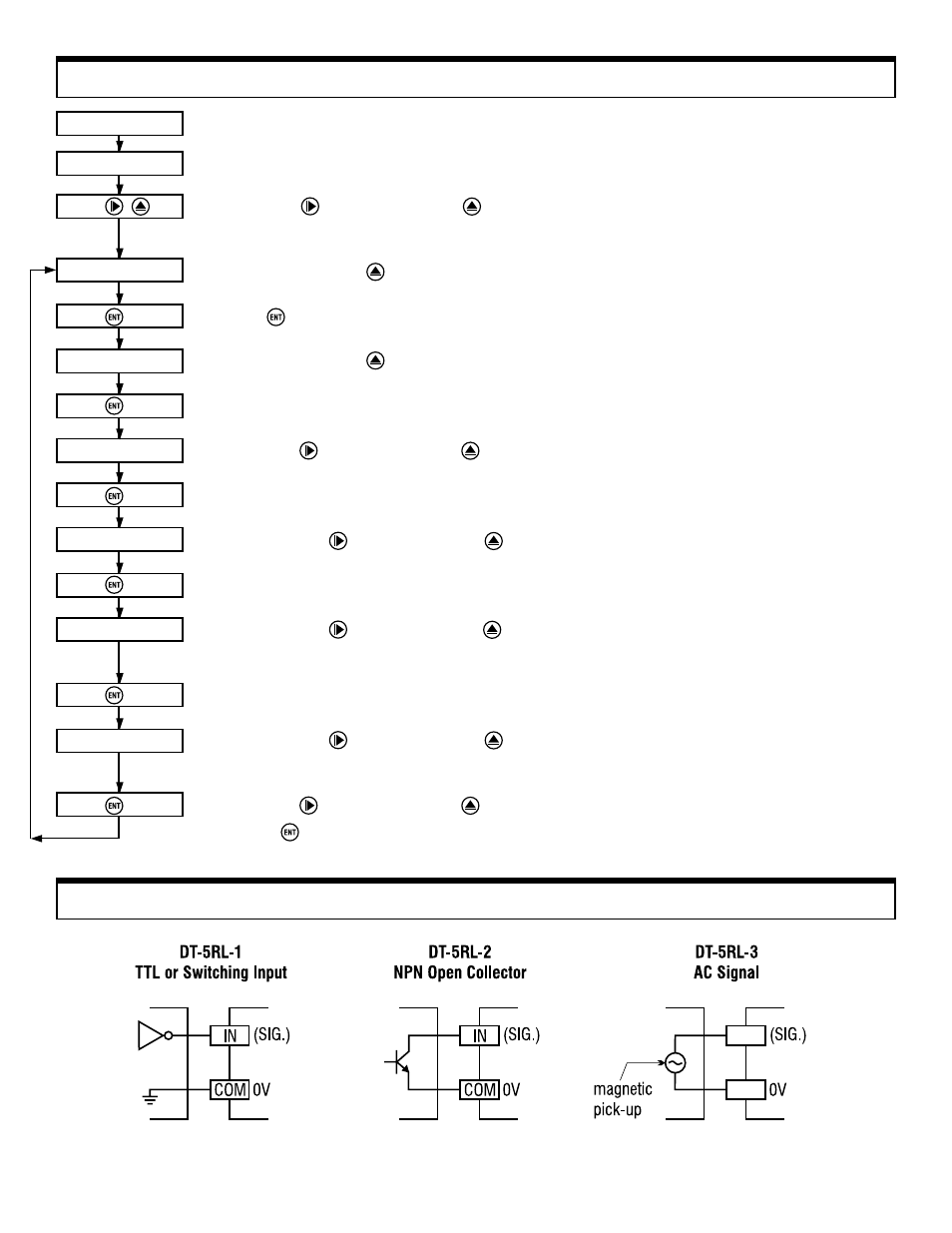

Operation Operation Operation Operation Operation
Input Connection Diagram Input Connection Diagram Input Connection Diagram Input Connection Diagram Input Connection Diagram
SHIMPO INSTRUMENTS SHIMPO INSTRUMENTS SHIMPO INSTRUMENTS SHIMPO INSTRUMENTS SHIMPO INSTRUMENTS
Turn Power-ON
Display
Push key — Press shift and increment keys simultaneously for at least 3 sec.
Now the decimal point can be selected.
dp — Press increment key and set the decimal point.
Push key — Press key. Now you can select RPM or linear speed.
diS-t — Press increment key and select "r-t" or "L-t".
Push key — If "L-t" is selected. Now "units" can be chosen.
Unit — Press shift and increment keys and select "M/min", "Ft/min" or "Y/min".
Push key — Now you are in the PPr field.
PPr — Press shift key and increment key and select the number of PPr anywhere from 1 to 9999.
Push key — You are in the minimum RPM/Linear rate field. (minimum speed)
LS-t — Press shift key and increment key and select cut-off sampling time
anywhere from 0.1 to 99.9 sec. Factory setting is 3 sec.
Push key — You are now in the speed stability field.
Aug — Press shift key and increment key and set value between 1 and 99
depending how fast speed changes.
Push key — Press shift and increment keys (simultaneously) momentarily and start measuring
or push key and start cycle all over again.
