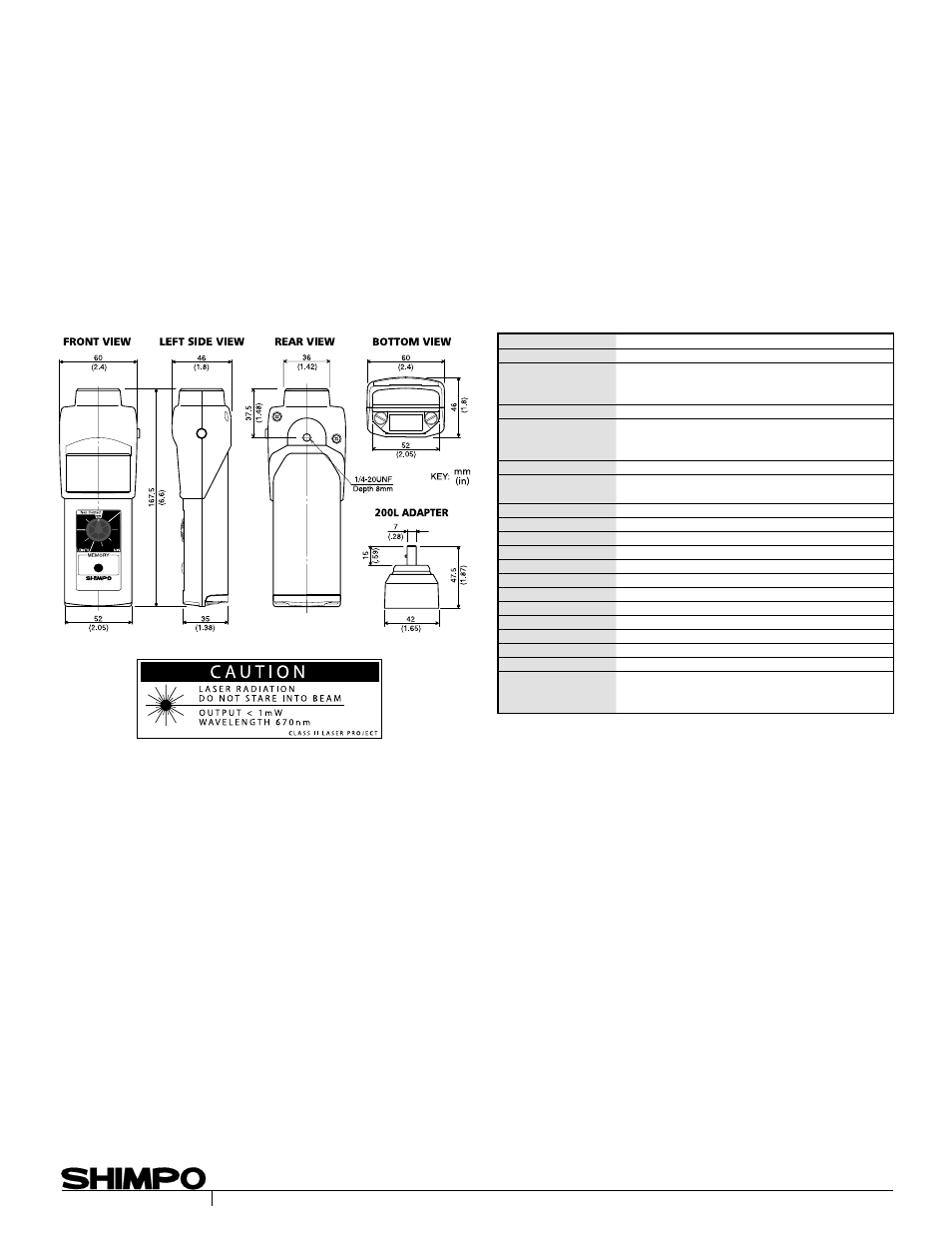

DIMENSIONS AND SPECIFICA

DIMENSIONS AND SPECIFICATIONS

TIONS

WARRANTY

LIMITED EXPRESS WARRANTY: Shimpo Instruments warrants, to the original purchaser of new products only, that this product shall be

free from defects in workmanship and materials under normal use and proper maintenance for one year from the date of original purchase.

This warranty shall not be effective if the product has been subject to overload, misuse, negligence, or accident, or if the product has been

repaired or altered outside of Shimpo Instruments’s authorized control in any respect which in Shimpo Instruments’s judgment, adversely

affects its condition or operation.
DISCLAIMER OF ALL OTHER WARRANTIES: The foregoing warranty constitutes the SOLE AND EXCLUSIVE WARRANTY, and Shimpo

Instruments hereby disclaims all other warranties, expressed, statutory or implied, applicable to the product, including, but not limited to all

implied warranties of merchantability and fitness.
LIMITATION OF REMEDY: Under this warranty, Shimpo Instruments’ SOLE OBLIGATION SHALL BE TO REPAIR OR REPLACE the defective

product or part, at Shimpo Instruments’ option. Shimpo Instruments reserves the right to satisfy warranty obligation in full by reimbursing

Buyer for all payments made to Shimpo Instruments, whereupon, title shall pass to Shimpo Instruments upon acceptance of return goods. To

obtain warranty service, Purchaser must obtain Shimpo Instruments’s authorization before returning the product, properly repackaged, freight

pre-paid to Shimpo Instruments.
INDEMNIFICATION & LIMITATION OF DAMAGES: Buyer agrees to indemnify and hold Shimpo Instruments harmless from and against all

claims and damages imposed upon or incurred arising, directly or indirectly, from Buyer’s failure to perform or satisfy any of the terms described

herein. In no event shall Shimpo Instruments be liable for injuries of any nature involving the product, including incidental or consequential

damages to person or property, any economic loss or loss of use.
MERGER CLAUSE: Any statements made by the Seller’s representative do not constitute warranties except to the extent that they also appear

in writing. This writing constitutes the entire and final expression of the parties’ agreement.

MODEL

DT-207L

Display Range

6 to 99,999 rpm

Accuracy

±1 rpm: 6 to 8,300 rpm
±2 rpm: 8,300 to 25,000 rpm
±0.006% of reading ±1 digit (±6 rpm max.): 25,000 to 99,999 rpm

Display

5 digit 0.4" (10mm) high LED

Measuring Units

RPM (on contact using adapter, included)
For YPM, mPM, FPM, IPM and Length: YRD, m, FT and IN
use 12" wheel with 200L adapter

Measuring Distance

14' (4.2 m) maximum

Memory System

13 readings are stored in memory and retained for 5 minutes
(last, max., min. and 10 extra measurements)

Detection

Laser diode / contact

System Control

Single chip C-MOS microprocessor

Over Range Indicator

Flashing numerals

Update Time

1 second (typical)

Batteries Included

Size: 2 AA 1.5V
Life: Approx. 25 hrs

Low Voltage Indicator “B” display
Operating Temperature 32° to 113°F (0° to 45°C)
Construction

Die-cast aluminum housing

Weight

0.8 lb (365g)

Dimensions

6.6"L x 2.4"W x 1.8"H (167.5 mm x 60 mm x 46 mm)

Warranty

1 year

Standard Accessories Reflective tape, 2 cone adapters, 1 funnel adapter, carrying

case, 200L adapter, NIST Certificate, instruction manual,
master wheel (6" cir.) and 3.5" extension shaft

TROUBLESHOOTING

The following are general checkpoints; please call your local Shimpo representative or contact Shimpo Instruments directly

for further assistance.
No laser beam is evident:

• Confirm that power switch is functioning
• Confirm that batteries are functioning and that polarity is correct

Inaccurate measurement results:

• If the surface being measured is highly reflective, it may need to be painted a darker color in order to ensure reliable results
• Beam may not be hitting the reflective tape, or taped area may be too small
• Measuring distance may be too short (unit must be at least 5” from intended mark)
