TROUBLESHOOTING
No laser beam is evident:
• Confirm that the POWER button is operating properly.
• Confirm that the batteries are functioning properly and that they are inserted into the tachometer with correct
polarity.
Inaccurate measurement results:
• If the surface being measured is highly reflective, it may need to be painted darker to ensure that the tachometer
can distinguish between the reflective tape and the background.
• The laser beam may not be hitting the reflective tape, or the taped area may be too small.
• Measuring distance may be to short. The minimum distance for non-contact measurements is 12.7cm

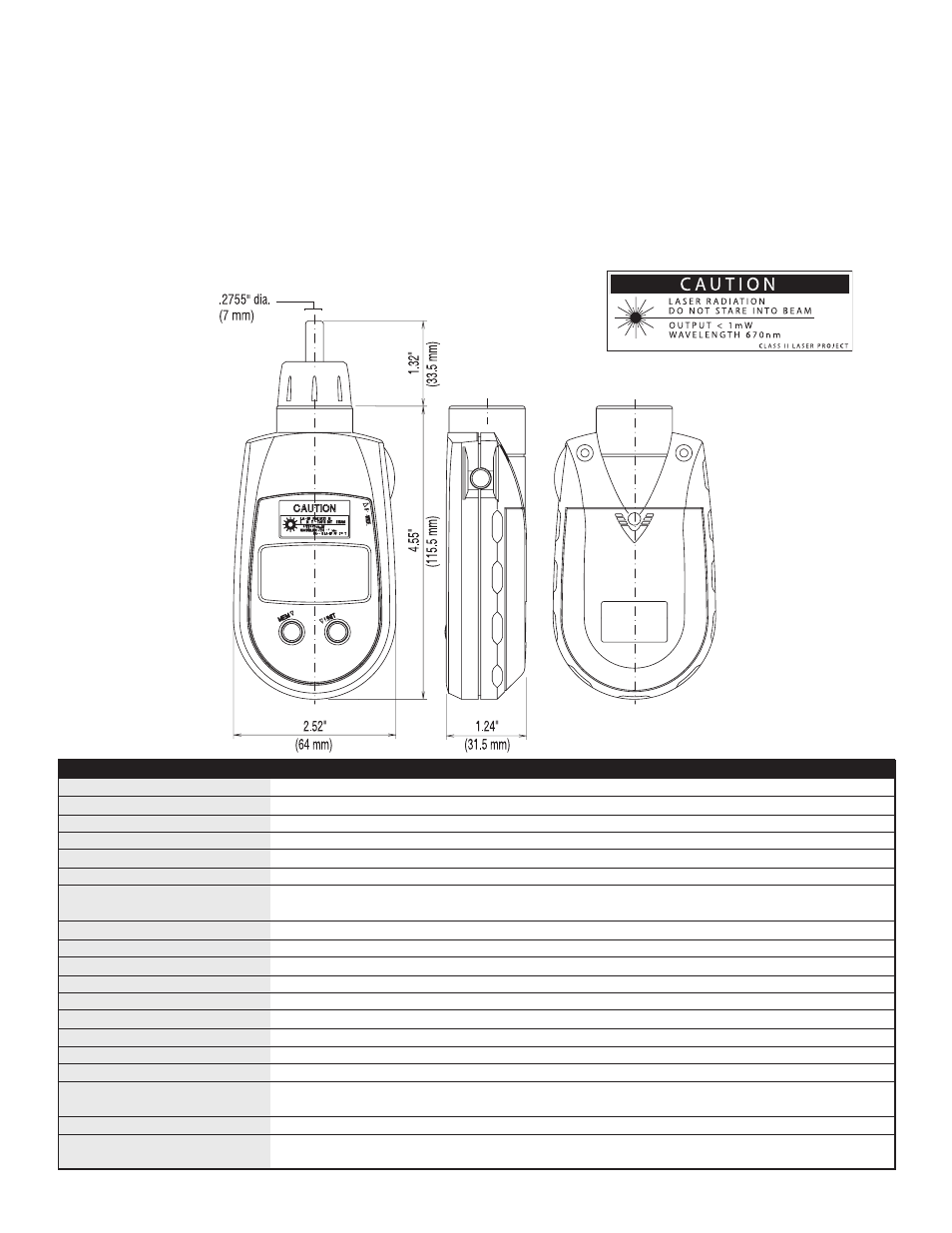

DIMENSIONS AND SPECIFICATIONS
S P E C I F I C A T I O N S
MODEL MT-200
Display 5 digit 0.47”(12 mm) height LCD
Revolutions per Minute (RPM) Non-Contact: 6.0 - 99,999 Contact: 6.0 - 25,000
Surface Speed (Using 6” Wheel) m/min: 0.1 - 3,809.8 yards/min: 1.0 - 4,166.4 inch/min: 36 - 99,999 feet/min: 3.0 - 12,499
Length (Using 6” Wheel) m: 0.2 - 99,999 yards: 0.2 - 99,999 feet: 0.5 - 99,999
Total number of revolutions (rev) 1 - 99,999
Measuring Accuracy Revolution: 6.0 - 599.9 rpm: ±1 rpm, 600 - 99,999 rpm: ±0.006% and ±0.5 digit
Surface Speed, Length: 0.4% and ±1 digit
Memory function 14 readings are stored in memory and retained for 5 minutes (Last, Max., Min., Average, and 10 selectable measurements)
Update Time 1 second
Detection Laser diode
Auto POWER Off function 5 minutes
Batteries Included 3 AA 1.5V
Low Battery Indicator Flashing “LO BAT” display
Over Range Indicator Flashing “OVR” display
Operating Temperature 32-113ºF (0 - 45ºC)
Construction ABS resin
Outside dimensions 4.55”L x 2.52”W x 1.24”H (115.5 mm x 64 mm x 31.5 mm) (main unit)
Overall length (When a correct adapter is installed): 149mm
Weight Main unit: 0.35-lb (160 g)(including batteries) Contact adapter: 0.11lb (50 g)
Accessories Carrying case, cone adapter, funnel adapter, master wheel (6” cir.), contact adapter, 35 reflective tabs,
NIST certificate, operation instructions
