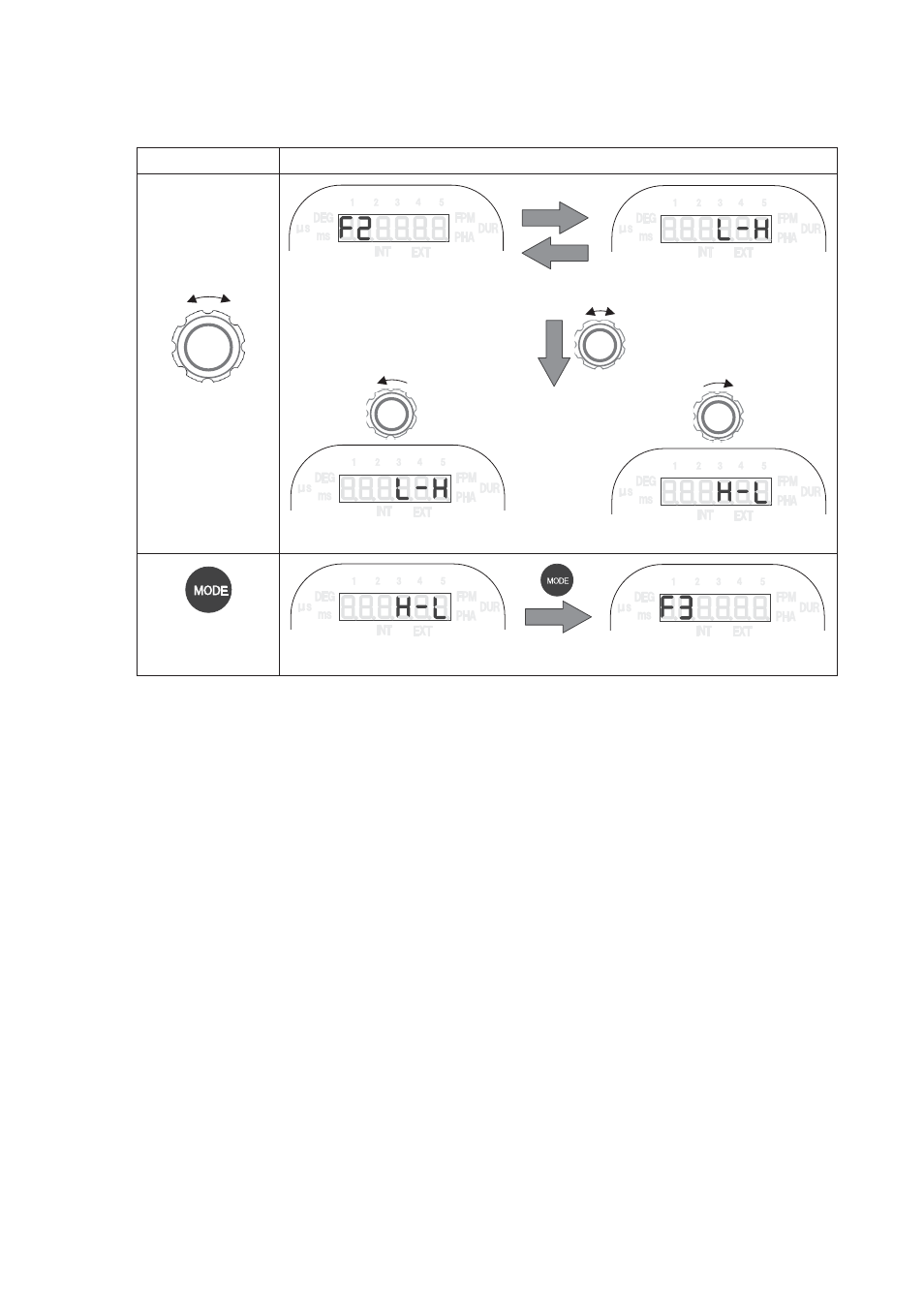

Turn the dial to the CW direction to set the trigger edge to H-L (falling).
Turn the dial to the CCW direction to set the trigger edge to H-L (rising).
Operate the dial to stop the alternate display and only the trigger edge setting value is indicated.
Operation
Display
Change the setting
value
Indicates alternately
* Previous setting value
Rising
Falling
CCW
CW
Go to function mode
3
Go to function mode 3
