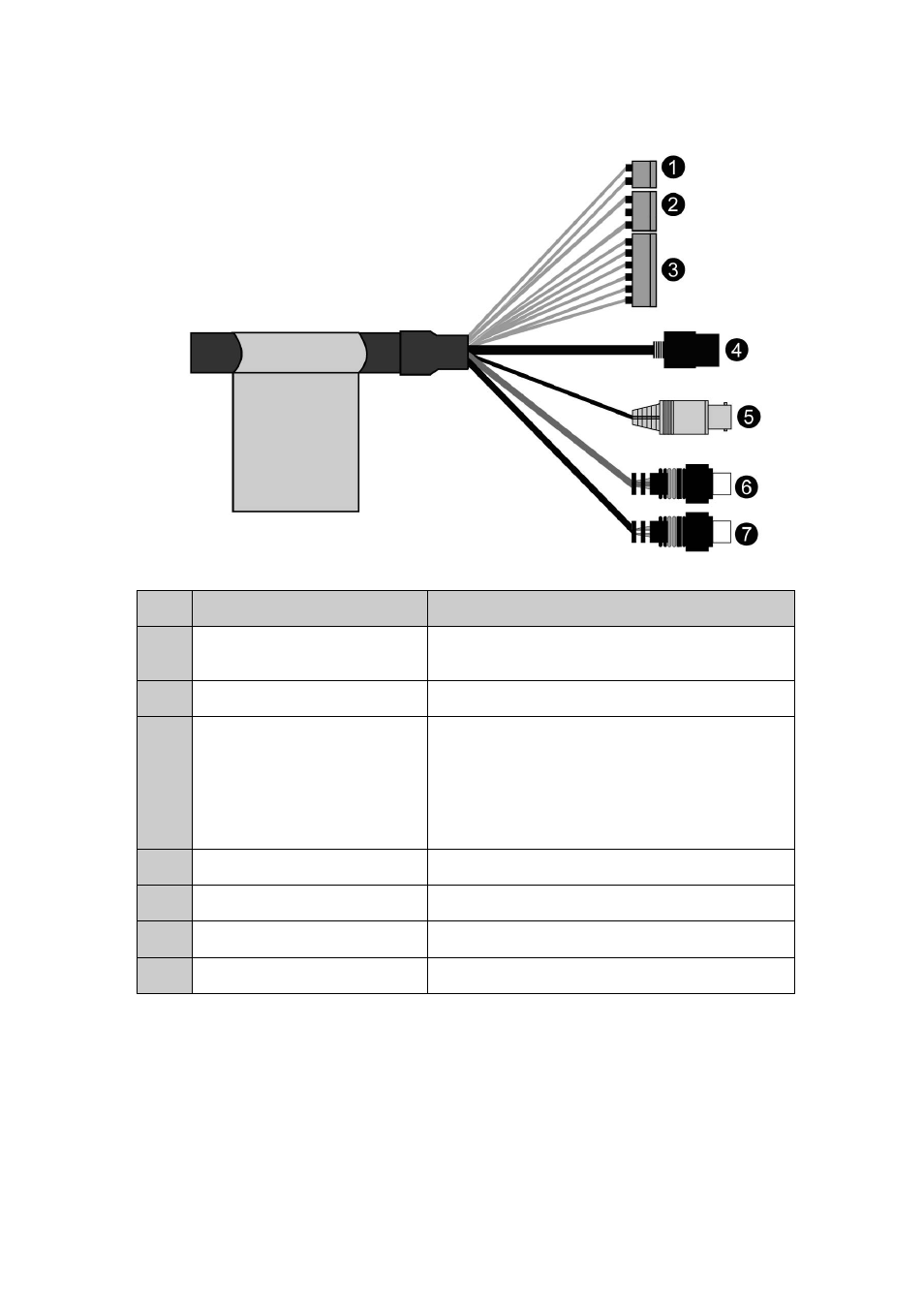

2.3 Basic Configuration of Dome Camera System
No. Wire Color Description
1
Red: 12VDC+
White: 12VDC-
Main Power: 2pin terminal
2 Pink, Brown Heater Power(Option): 3pin terminal
3
Black: GND
Gray: Alarm Input
Yellow: GND
Black&White: Alarm Output
Green: RS485+
Blue: RS485-
Alarm Input/Output, RS485: 6pin terminal
4 Black Ethernet: RJ45 Modular Jack
5 Yellow Video Composite Output: BNC Jack
6 Red Audio line output: RCA Jack
7 White Audio line input: RCA Jack
The dome camera must be installed by qualified service personnel in accordance with all local
and federal electrical and building codes.
5
